Kuzma Kuzma Stabi S PS + Kuzma 4 Point 9 Arm and separate power supply

Note: The price is with NO Norwegian VAT of 25%. When exported the VAT, the buyer is the responsible for any VAT/TAX in their home country.

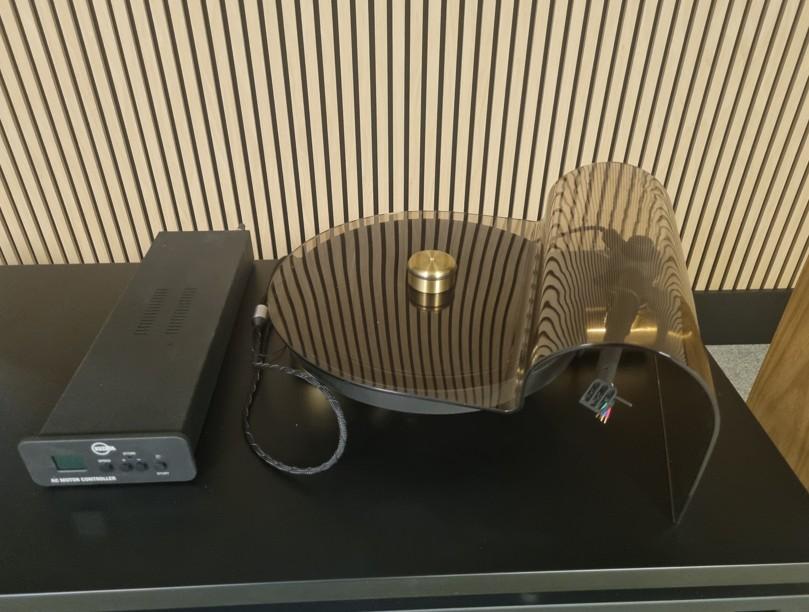

The turntable is in excellent condition.

[URL unfurl="true"]https://malaaudio.no/kuzma-stabi-s-ps[/URL]
[URL unfurl="true"]https://malaaudio.no/kuzma-4-point-9[/URL]
[URL unfurl="true"]https://www.kuzma.si/stabi-s-turntable-reviews.html[/URL]
[URL unfurl="true"]https://www.kuzma.si/4point-tonearm.html[/URL]
[URL unfurl="true"]https://hifiplus.com/articles/kuzma-stabi-s-turntable-4point-9-tonearm-and-car%E2%80%9140-mc-cartridge/[/URL]

Produktbeskrivelse
https://www.kuzma.si/stabi-s.html
https://www.kuzma.si/4point-9.html

Stabi S PS er en pakke med Stabi S drivverk med separat PSU og leveres i mange kombinasjoner med ulike armer og pickuper. Ta kontakt med oss for ett godt pakketilbud.

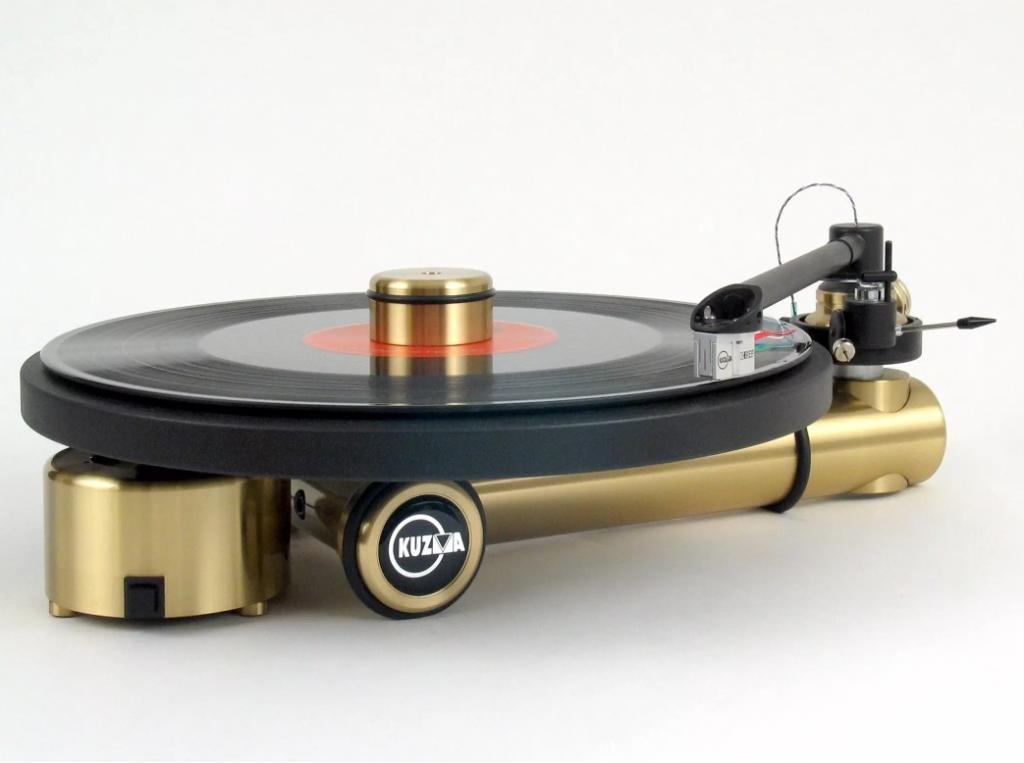

Stabi S is our smallest turntable with a design approach normally found only in more expensive models. Its unique shape and construction of solid brass rods, provide an extremely rigid connection to platter, bearing and tonearm support. There is no flat plate to resonate and transmit vibrations, only solid brass rods 50mm in diameter. A second brass rod provides stability and the two are clamped together in a T shape. The motor is housed independently in its own bras tower which dampens vibration of the motor itself. A ground, flat belt provides drive from the motor pulley to the subplatter.

The bearing is of highly polished, fine grain carbon steel with a one point contact, while the bearing sleeve is of a resin/textile material which has excellent damping, non-resonant properties.

With a mat on top and rubber damping insert underneath, the sold aluminium platter provides a stable non-resonant platform for records.

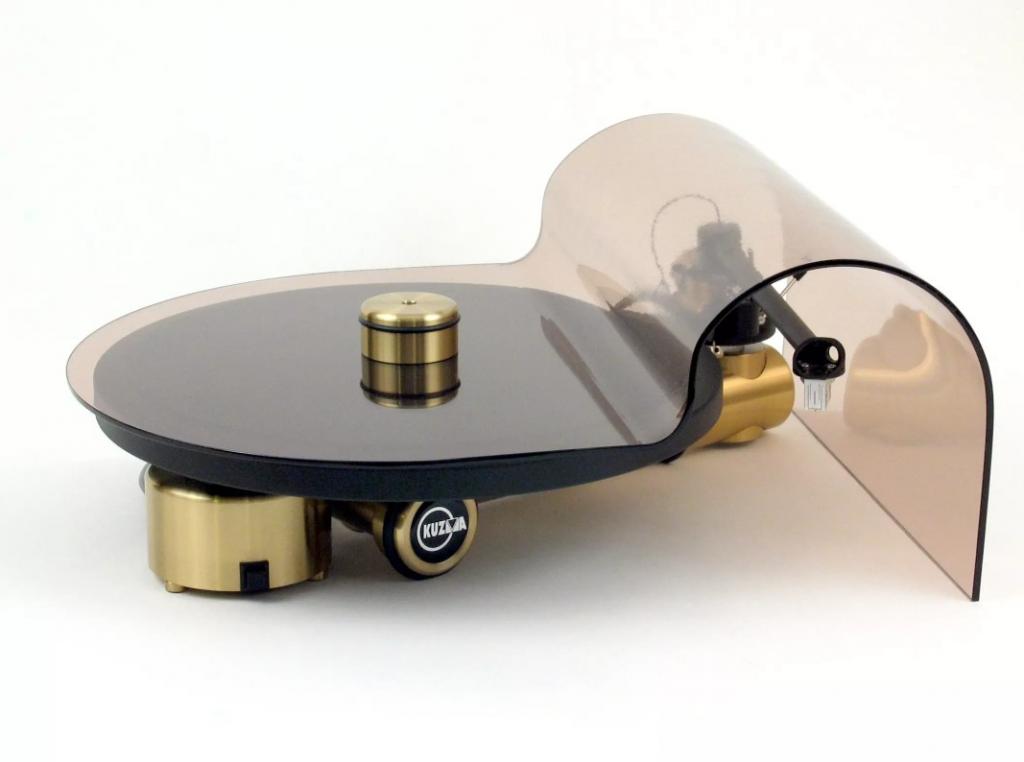

An acrylic cover protects platter and tonearm while reflecting the turntable’s original shape. A 45 rpm adaptor is provided and is simply slipped over the 33 rpm pulley. The turntable can accommodate various tonearms by the use of different pre- cut brass plates and it allows for VTA adjustment on any tonearm mounted.

The whole turntable is supported by an optional high density plywood plate.

Spesifikasjoner



Mass 13 Kg
Platter mass 4 Kg ( since 2018 is supplied thicker platter- 30 mm)
Platter material Aluminium
Bearing type Pointed shaft with resin/textile material
Shaft diameter 10 mm
Drive Flat rubber belt
Chassis/Levelling Brass/ No
Turntable levelling No
Motors 1 pc AC
External power supply optional
Speeds 33,45 rpm
Armboard optional ( Kuzma arms fit directly)

VTA adjustment Yes
No. of tonearms 1 (+1 optional)
Max tonearm’s length 10” ( optional 12”)
Suspended No
Dimensions 400x300x170 mm
Finishes brass or black
Clamp Optional
Mat Yes

Lid Yes
Accessories Oil, Allen keys
Options SD- second arm kit,12” kit, extra platter kit(2.6 kg onkly for 20mm thicker platter),
Options Various armboards, outboard power supply,
Options Brass clamp ( 370 g), supporting platforms
Produktbeskrivelse

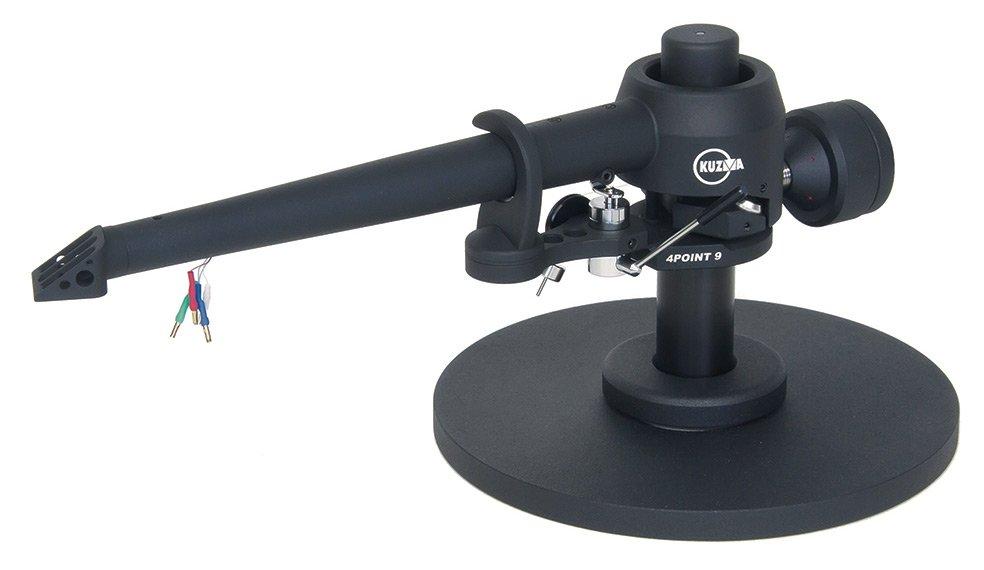

4Point 9 is shorter version of 4Point tonearm. Due its 9 inch lenght and lack of VTA tower makes this tonearm lighter and smaller thus capable of fitting on most suspendded turntables.

HIFI+ review: Jan 2018 #155: 4Point 9:The best tonearm ever?

[URL unfurl="true"]http://www.kuzma.si/media/uploads/files/HIFI%2B155_Kuzma_LR.pdf[/URL]

HIFI + award 2017: best tonearm is 4Point 9

[URL unfurl="true"]http://www.kuzma.si/media/uploads/files/HIFI%2B154%20AW_TonearmCartridge_Kuzma_LR.pdf[/URL]

Spesifikasjoner

Effective lenght 229 mm

Arm mount distance 212 mm

Spindle to pivot distance 212 mm
Bearing type 4 pivot
Effective mass 13 g
Total mass 920 g
Offset angle 23 deg
VTA adjustment Yes
Azimuth Worm drive
Tube Conical
Bias Yes
Max cartridge mass 35 g
Damping No
Detachable headshell Yes
Arm mount Kuzma
Standard wiring Silver
Accessories Yes
