NAT MCX - Step up Transformer
Product information
- Product category
- Phono Amplifier
- Manufacturer
- NAT
- Function
- flawless
- Age
- 1 years According to distributor
- Usage state
- new
- Appearance
- as good as new
- Accessories
- complete with original box
- Color
- Black
- Original price
- 2,400.00 €
- Price
- 1,200.00 €
- More information
- http://www.nataudio.com/
Description
NAT MCX, is made on the base of nano-crystalline core with equal gain in both channel! Due to special winding technique we reach the ZERO mismatch between channel - 0dB, in other words there is no any differences in gain between left and righ channel!
All of our transformers are hand coiled!
Triple shielding is our way to protect the transformers from the external field "pollution". There is mu-metal shielding with double 4mm copper plates and aluminium chassis as the outside part!

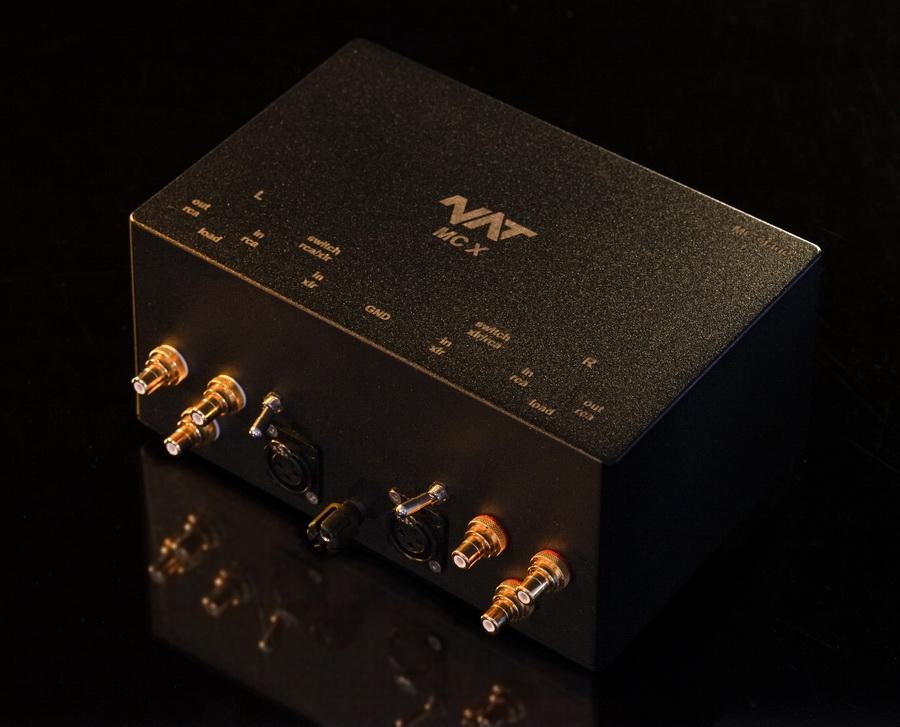

NAT MCX is large size hand coiled nano-crystalline core based MC step-up transformer with 10 times (20dB) of gain.
It offers both balanced (XLR) and unbalanced (RCA) inputs. Fine tuning of load resistance can be done with additional parallel input RCA connectors. It is suitable for cartridge from 0.4 - 0.6 mV of output voltage.
It is an incredible SUT, best quality/price ratio, we offer a very special price for this brand new unit to reduce our stock.
Technical Specification:
Frequency Response (source impedance< 50 ohm) 4 Hz to 100 kHz
Input impedance (ref. to 47k ohm input) 500 ohms
Gain 20 dB (x10)
Dimensions 8.9" (225 mm) wide x 6" (150 mm) deep x 4.7" (120 mm) high
NET Weight approx. 12 lbs. (5.5 kg) unpacked
All of our transformers are hand coiled!
Triple shielding is our way to protect the transformers from the external field "pollution". There is mu-metal shielding with double 4mm copper plates and aluminium chassis as the outside part!
NAT MCX is large size hand coiled nano-crystalline core based MC step-up transformer with 10 times (20dB) of gain.
It offers both balanced (XLR) and unbalanced (RCA) inputs. Fine tuning of load resistance can be done with additional parallel input RCA connectors. It is suitable for cartridge from 0.4 - 0.6 mV of output voltage.
It is an incredible SUT, best quality/price ratio, we offer a very special price for this brand new unit to reduce our stock.
Technical Specification:
Frequency Response (source impedance< 50 ohm) 4 Hz to 100 kHz
Input impedance (ref. to 47k ohm input) 500 ohms
Gain 20 dB (x10)
Dimensions 8.9" (225 mm) wide x 6" (150 mm) deep x 4.7" (120 mm) high
NET Weight approx. 12 lbs. (5.5 kg) unpacked
