Allnic Audio H-6500
Preis: 6.990,00 €
| Ausstellungsstück
Produktdetails
- Produktgruppe
- Phonoverstärker
- Hersteller
- Allnic Audio
- Funktion
- einwandfrei
- Alter
- 2 Jahre 9 Monate Nach Rechnung
- Gebrauchszustand
- Ausstellungsstück
- Optik
- neuwertig
- Zubehör
- komplett mit OVP
- Farbe
- Silber
- Neupreis
- 9.500,00 €
- Preis
- 6.990,00 €
- Weitere Informationen
- http://www.allnicaudio.com/
- Seriennummer
- 21260
Beschreibung

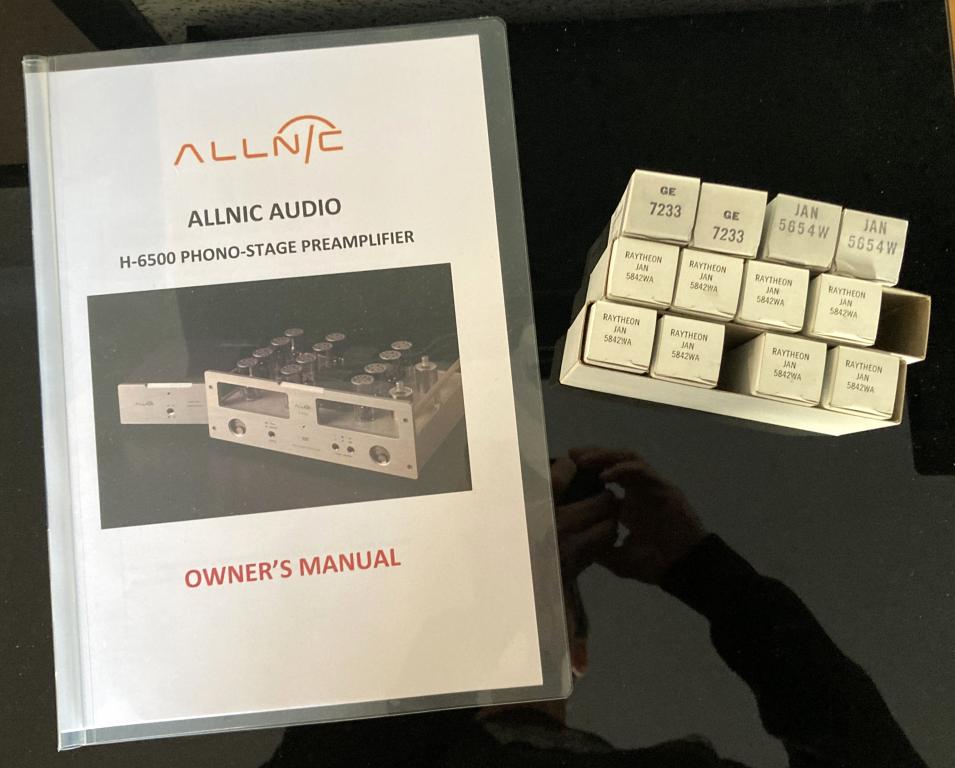

Mit zusätzlichem neuen Röhrensatz!

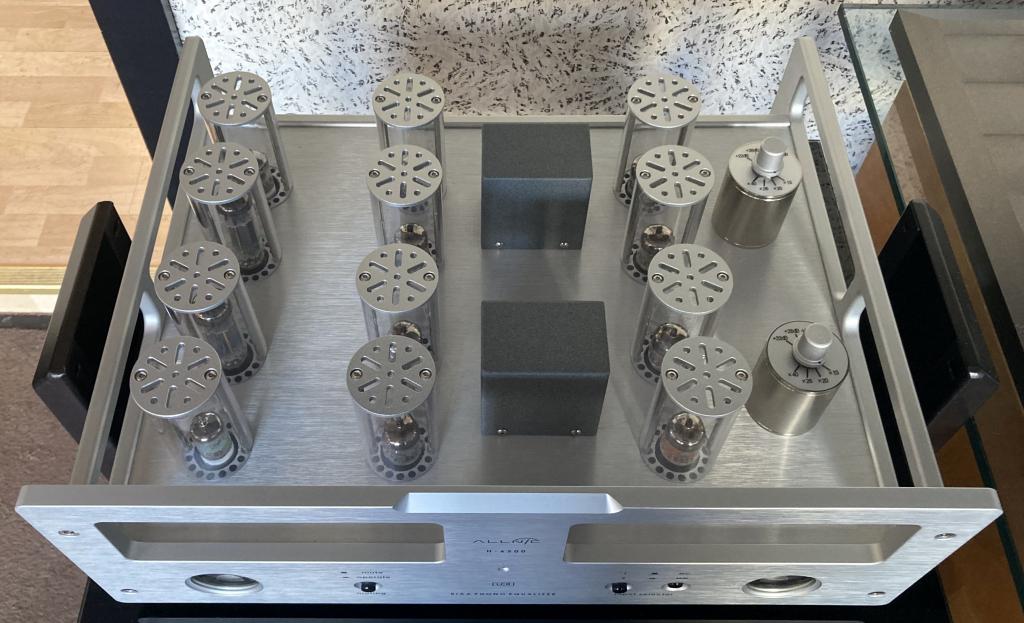

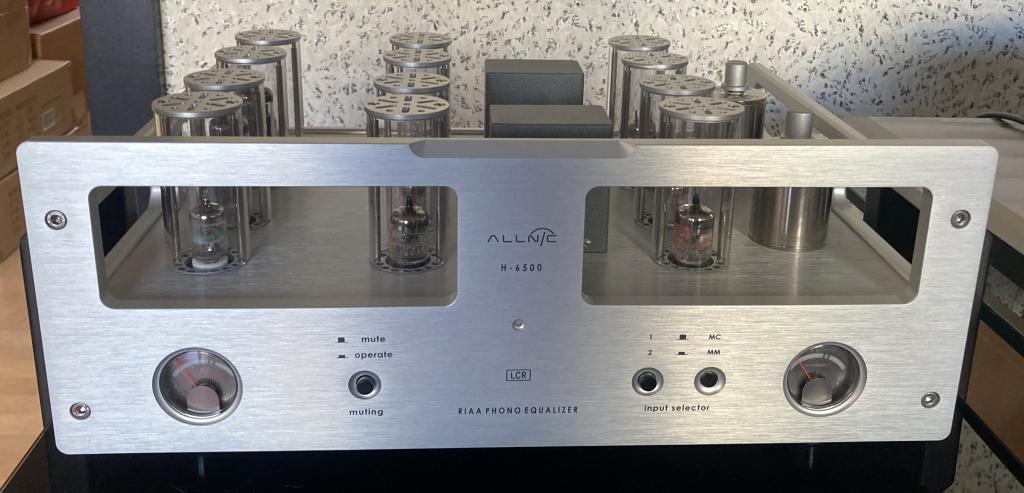

The H-6500 is basically a vacuum tube phono amplifier with 2 sets of MM and 2 sets of MC inputs, RIAA curve correction through an LCR filter, and a separate power supply unit in a separate chassis. MC boosting is done through a built-in permalloy core step-up transformer with 4 winding ratios, and MM amplification is done through 5842 triodes inserted 4 per channel. MM voltage gain is 40dB, MC voltage gain is 62dB, 66dB, 68dB, 72dB.
Technical Specification
Inputs: Moving Coil (MC) × two (2) pairs unbalanced (RCA)
Moving Magnet (MM) x two (2) pairs unbalanced (RCA)
Ground: Two(2) x screw type terminal
Outputs: One (1) pair x unbalanced (RCA)
Frequency Response: (RIAA): 20Hz ~ 20KHz (±0.3db)
Voltage Gains: +40db (1KHz) MM
+66db (1Khz) MC
Input Impedance: MC up to 117Ω (see “Impedance” in “Initial Set-Up”) MM 47kΩ
Maximum Input Voltage: (MM, non-clipping): 20Hz / 30mV, 100Hz / 100mV, 1KHz / 240mV, 10KHz / 280mV
Total Harmonic Distortion: Less than 0.17% (1KHz, Output 1V)
Output Impedance: 430Ω (On – off method)
S/N Ratio: -86db (CCIR, 1KHz)
Tubes: 5842 x 8, signal gain (similar to WE 417A).
7233 x 2, series voltage regulator (similar to CV4079).
5654 x 2, automatic voltage regulator (similar to 6AK5W, CV4010, M8100, 6096, E95F 6096).
5AR4 x 1, rectifier – in the power supply (equivalents possible – consult your Allnic dealer).
Fuse: AC 2A, 250V slow-blow for 230/240V regions
Dimensions: Phono-stage: 430mm (16.9 inches) x 335mm (13.2 inches) x 170mm (6.7inches)

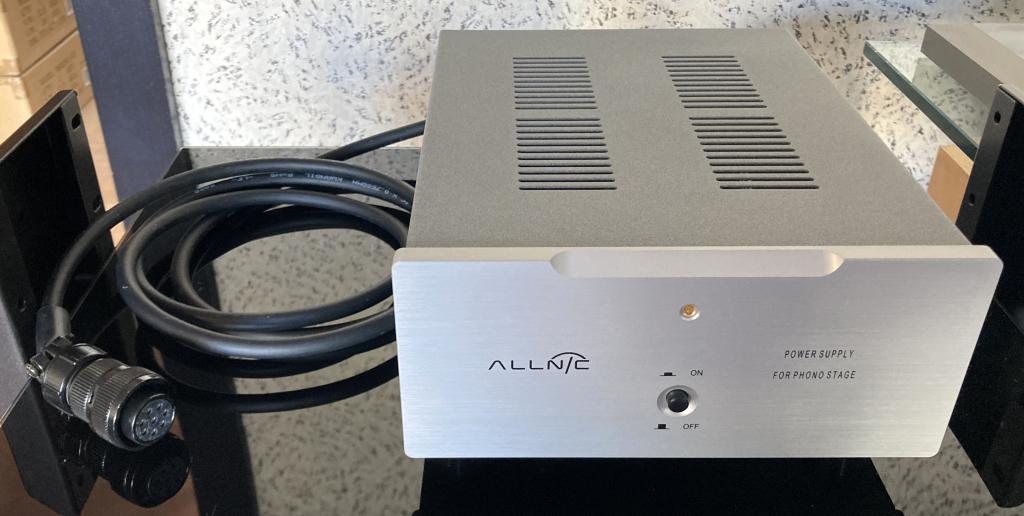

Power supply: 170mm (6.7 inches) x 275mm (10.8 inches) x 118mm (4.65inches)
Weight: Phono stage: 8 Kg unpacked
Power supply: 8.1 Kg unpacked
The H-6500 is basically a vacuum tube phono amplifier with 2 sets of MM and 2 sets of MC inputs, RIAA curve correction through an LCR filter, and a separate power supply unit in a separate chassis. MC boosting is done through a built-in permalloy core step-up transformer with 4 winding ratios, and MM amplification is done through 5842 triodes inserted 4 per channel. MM voltage gain is 40dB, MC voltage gain is 62dB, 66dB, 68dB, 72dB.
Technical Specification
Inputs: Moving Coil (MC) × two (2) pairs unbalanced (RCA)
Moving Magnet (MM) x two (2) pairs unbalanced (RCA)
Ground: Two(2) x screw type terminal
Outputs: One (1) pair x unbalanced (RCA)
Frequency Response: (RIAA): 20Hz ~ 20KHz (±0.3db)
Voltage Gains: +40db (1KHz) MM
+66db (1Khz) MC
Input Impedance: MC up to 117Ω (see “Impedance” in “Initial Set-Up”) MM 47kΩ
Maximum Input Voltage: (MM, non-clipping): 20Hz / 30mV, 100Hz / 100mV, 1KHz / 240mV, 10KHz / 280mV
Total Harmonic Distortion: Less than 0.17% (1KHz, Output 1V)
Output Impedance: 430Ω (On – off method)
S/N Ratio: -86db (CCIR, 1KHz)
Tubes: 5842 x 8, signal gain (similar to WE 417A).
7233 x 2, series voltage regulator (similar to CV4079).
5654 x 2, automatic voltage regulator (similar to 6AK5W, CV4010, M8100, 6096, E95F 6096).
5AR4 x 1, rectifier – in the power supply (equivalents possible – consult your Allnic dealer).
Fuse: AC 2A, 250V slow-blow for 230/240V regions
Dimensions: Phono-stage: 430mm (16.9 inches) x 335mm (13.2 inches) x 170mm (6.7inches)
Power supply: 170mm (6.7 inches) x 275mm (10.8 inches) x 118mm (4.65inches)
Weight: Phono stage: 8 Kg unpacked
Power supply: 8.1 Kg unpacked
