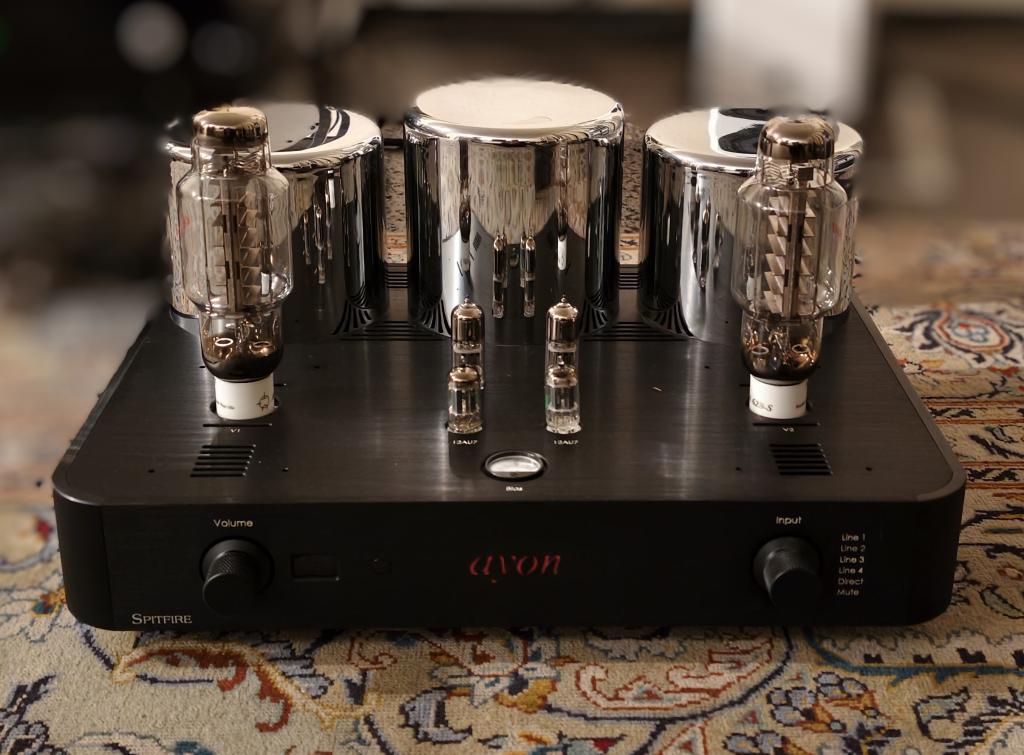

Ayon Audio Spitfire

DER Triodenverstärker, sollte man hören,

der Nachfolger des Mercury 2 !

ERSTBESITZ, Nichtraucher, 4 Jahre jung, mit FB, 1 Jahr Gewährleistung, ÖVP vorhanden

Verfügbar ab 23.12.25, Versand nur auf Palette möglich.

The Ayon Spitfire is using similar technologies of our famous “Crossfire” amplifier. It exhibits all well known Ayon magic and qualities.

This amplifier offers exceptional tonal neutrality, high resolution and punchy-airy timbre with great musical s
Vermittlungsverkauf mit Funktionsgarantie,


Highend der höchsten Klasse, bei uns Anhören möglich.


Zitat Hifi-Stars über den Nachfolger:

Mit der ‚Mutter aller Leistungstrioden‘, der AA52B-S, ausgestattet, verbreitet er exakt jenes ‚Pfund‘ an Emotionen ... Erbarmungslos neutral in der Tonqualität, weckt er beim Hören das ständig mäandernde Gefühl des ‚Haben wollens‘. ...“

TESTBERICHT:

https://cdn.shopify.com/s/files/1/1378/3595/files/ayon__Ayon_Mercury_HS_2.pdf?336202629509980323



Produkteigenschaften
Ayon Audio MERCURY
Der Ayon Mercury ist der kleine Bruder unseres berühmten „Crossfi re”-Verstärkers. Er enthält alle bekannten Ayon-Eigenschaften und -Qualitäten. Dieser Verstärker bietet außergewöhnliche tonale Neutralität, hohe Aufl ösung und kräft ige-luft ige Höhen mit großer Musikalität. Einschneller unverfärbter Bass und eine räumliche 3-D-Klangbühne sind selbstverständlich für diesen bemerkenswerten Verstärker.
The Ayon Mercury is the little brother of our famous "Crossfire" amplifier.
It exhibits all well known Ayon magic and qualities. This amplifier offers exceptional tonal neutrality, high resolution and punchy-airy timbre with great musical sweetness. A quick uncoloured bass and a spacious 3D soundstage are self-evident for this remarkable amp.


Features
Full-featured single-ended vacuum tube stereo integrated amplifier
SE - pure Class-A triode vacuum tube-circuit design
AA52B-S Power output tubes
Timer warm up circuit for all tubes, extends tube life
Ideal also for more difficult loudspeaker loads
Dual choke filtered-regulated power supply for each AA52B-S
Single choke for pre and driver stage
Automatic power tube protection circuit system
0dB Negative feedback
DHT
Power transformer is encased, excellent damped and RFI/EMI shielded
Innovative power supply provides a high speed energy delivery on transients
High performance & efficiency output transformer
All transformers are sealed with an anti-resonance compound material
Selected, premium quality passive components used in all applications
High speed capacitors
Teflon tube sockets with beryllium- copper spring pins, custom made by Ayon - - Audio
Shortest possible signal paths
Gold plated industrial grade PCB
Teflon isolated - internal wiring
Silver matrix - internal signal cable
Central one-point star earth grounding
External static bias adjustment – rear panel
Fully hand assembled to insure the highest level of craftsmanship
Alu-brushed anodized anti-vibration-resonance and non-magnetic chassis
Backlit “ayon” logo – front panel
All front & rear panel descriptions are engraved

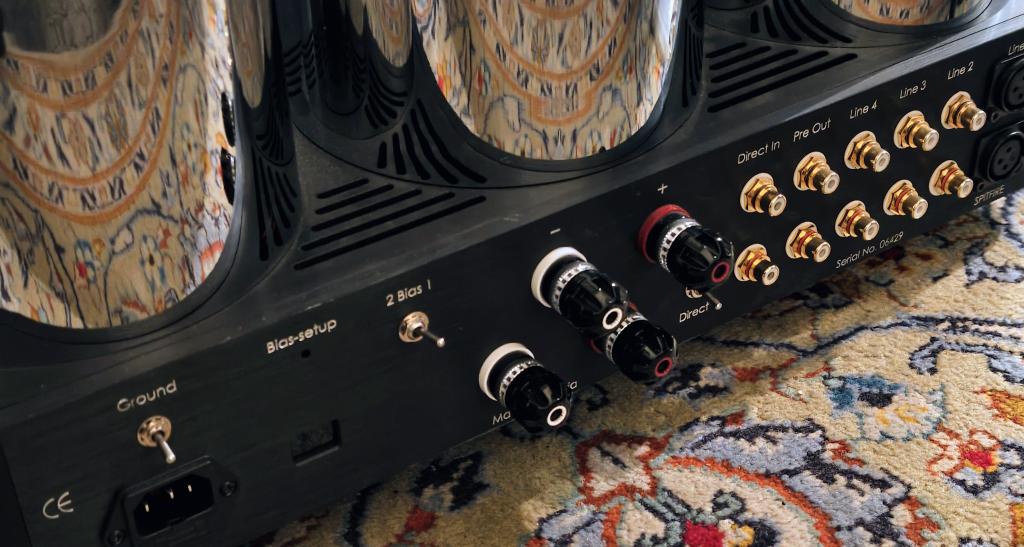

4 line inputs, 1 x pre out & 1 direct input - for pure power amp operation
Ground switch
Mute function - RC
DC-Power filter
Bias analog-instrument with mV scale
AC phase polarity control indicator
Metal remote commander
Chassis finish: black / chrome
Amplifier

Ayon Mercury

Class of Operation

Single Ended, Pure Class A

Tube Complement

2xAA52B-S

Load Impedance

4 & 8 Ohms

Bandwidth

5Hz-90kHz

Output Power

2 x 25 Watt

Peak Output Power

2 x 35 Watt

Frequency Response

12 Hz - 35 kHz/ 0 dB

Frequency Response

10 Hz - 100 kHz/ -2.5 dB

Input Impedance at 1 kHz

1 MOhm

Input sensitivity ( full power )

450 mV

/N ratio at full power

98 dB

Hum

0,003 V

Negative feedback

0dB

Volume Control

Potentiometer

Remote Control

Yes

Inputs & Outputs

4 x Line IN, 1 x Direct IN, 1 x Pre Out

Dimensions (WxDxH) cm

46x37x25 cm

Weight

33 kg
