BERKELEY ALPHA DAC SERIES 3P
Berkeley Audio Design is extremely pleased to announce the new Perfected Technology Berkeley Audio Design Alpha DAC Series 3P – an audio quality and value breakthrough. The Alpha DAC Series 3P uses Perfected Technology introduced in the Alpha DAC Reference Series 3P to achieve a new level of musical realism possible because of extremely high time domain coherence.
New proprietary RF waveguide technology, new ultra-low noise reclocking and new extremely low noise software all dramatically increase musical reality. Berkeley Audio Design Perfected Technology achieves a level of time domain coherence never available before in an audio D to A converter. The result is profound musical realism. Time domain incoherence erases subtle spatial and timbral audio information essential to the experience of live music. Perfected Technology goes beyond sounding excellent to simply sounding real.
Specifications
• Input sampling rate: 32kHz to 192kHz
• Ultra low phase noise Precision Clocking at 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz and 192kHz sampling rates ± 100 ppm
• Input word length: 24-bit

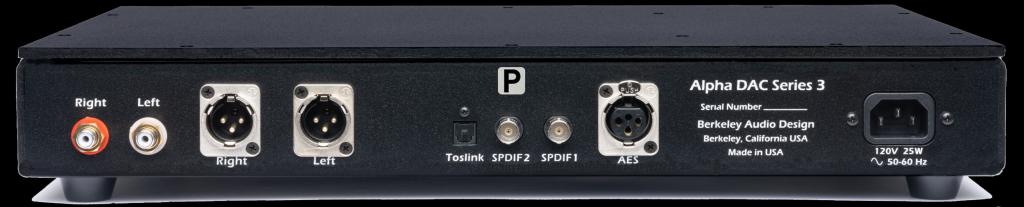

• Two channel analog stereo outputs: XLR balanced with pin 2 positive and RCA unbalanced
• Digital Inputs: AES – XLR, 110; SPDIF1 – BNC, 75; SPDIF2 – BNC, 75; TOSLINK – Toslink optical connector
• HDCD decoding detects 16-bit flag at 44.1kHz or 24-bit flag at all sampling rates
• MQA Rendering and multiple digital filter options
• Balanced analog output level: +18dBu (6.15Vrms) maximum,
+12dBu (3.1Vrms) or lower recommended
• Unbalanced analog output level: 3.25Vrms maximum, 2Vrms or lower recommended
• Digital volume & balance control: 0.1dB/step with .05dB/step L/R gain trim, 60dB range
• Frequency response at ≥ 88.2kHz sampling rates: ± 0.1dB from < 0.1Hz to 35 kHz,- 3dB at 59kHz for 176.4kHz and 192kHz sampling rates
• Distortion at recommended levels: all products ≤ -120dBFS
• THD+N at maximum level: < -110dBFS
• Firmware field upgradeable through signal inputs
• Enclosure dimensions: 3.5”H X 17.5” W x 12.5”D
• Weight: 30 lbs.
• Mains power: 100/120/240VAC, 50 /60Hz
• Power consumption: 25 W
