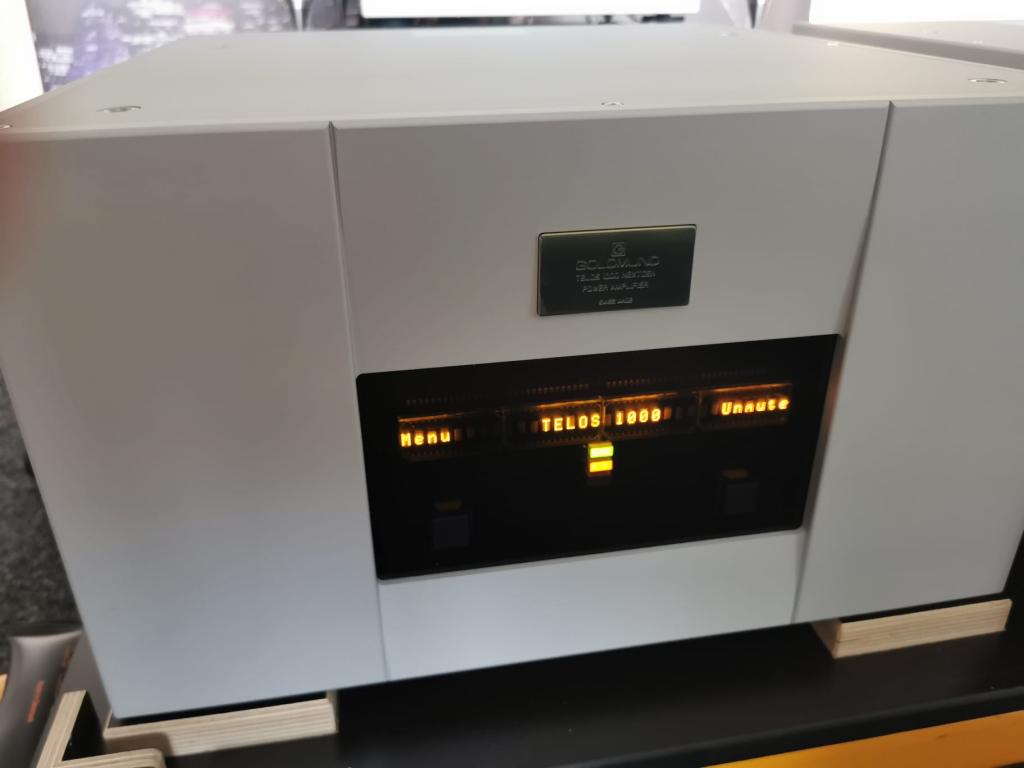

Goldmund TELOS 1000 NextGen
Produktdetails
- Produktgruppe
- Transistor-Endverstärker
- Hersteller
- Goldmund
- Funktion
- einwandfrei
- Alter
- 1 Jahre Laut Vertrieb
- Gebrauchszustand
- Ausstellungsstück
- Optik
- neuwertig
- Zubehör

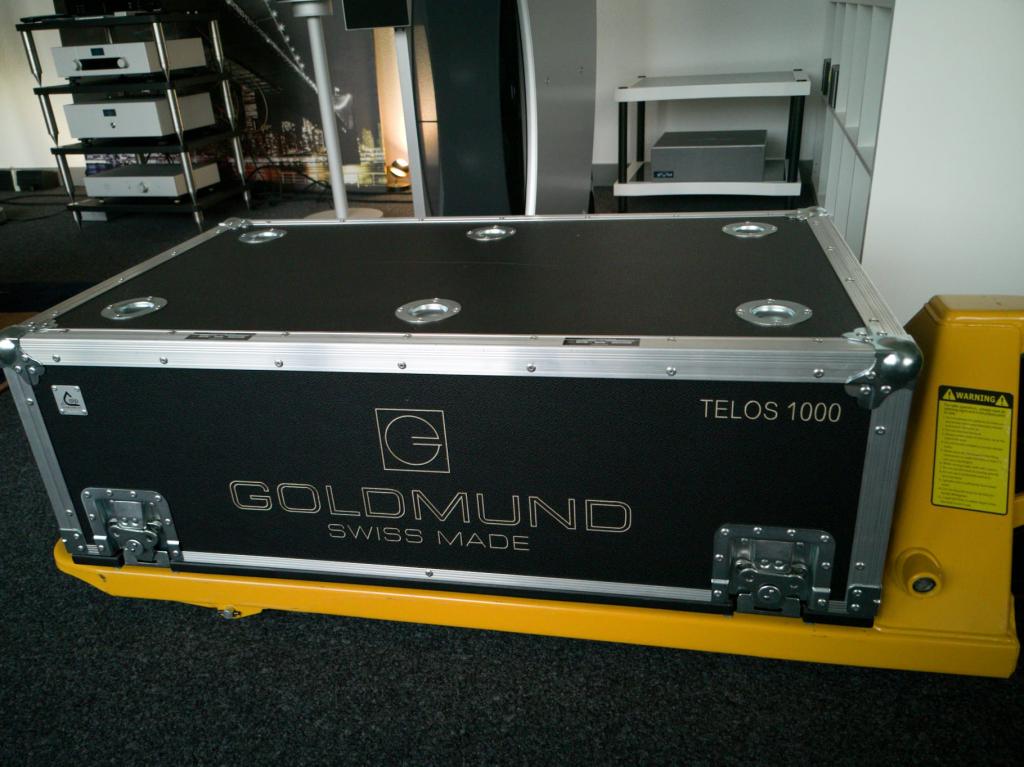

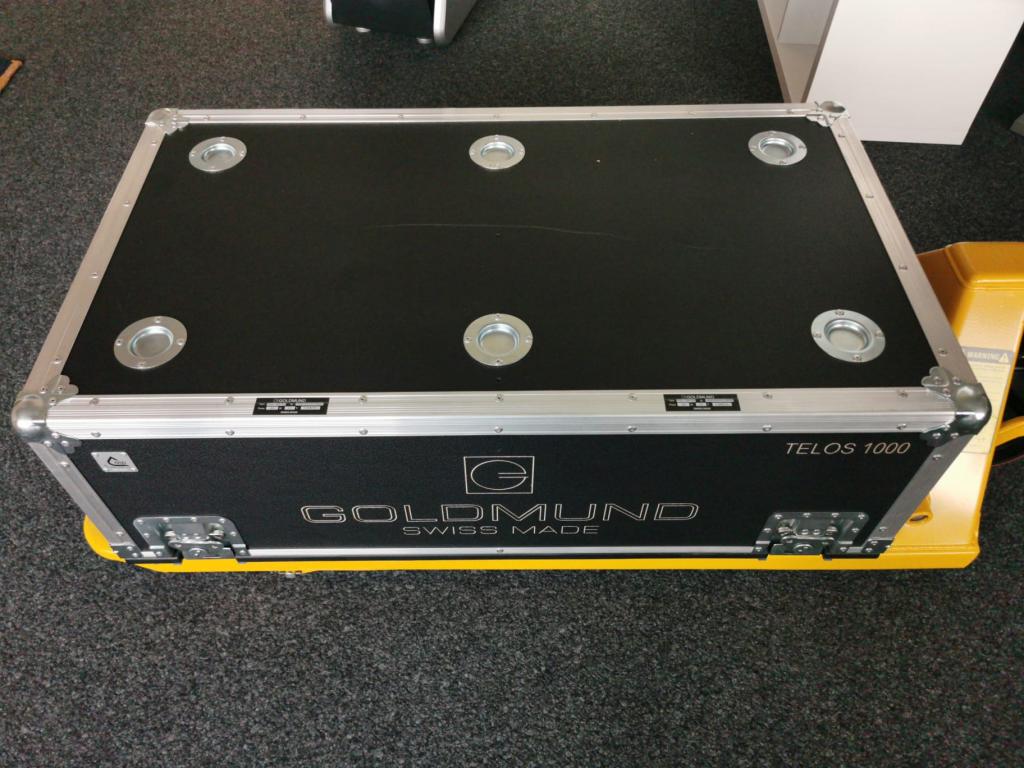

- komplett mit OVP
- Neupreis
- 130.000,00 €
- Preis
- Auf Anfrage
- Weitere Informationen
- http://www.goldmund.com
Beschreibung

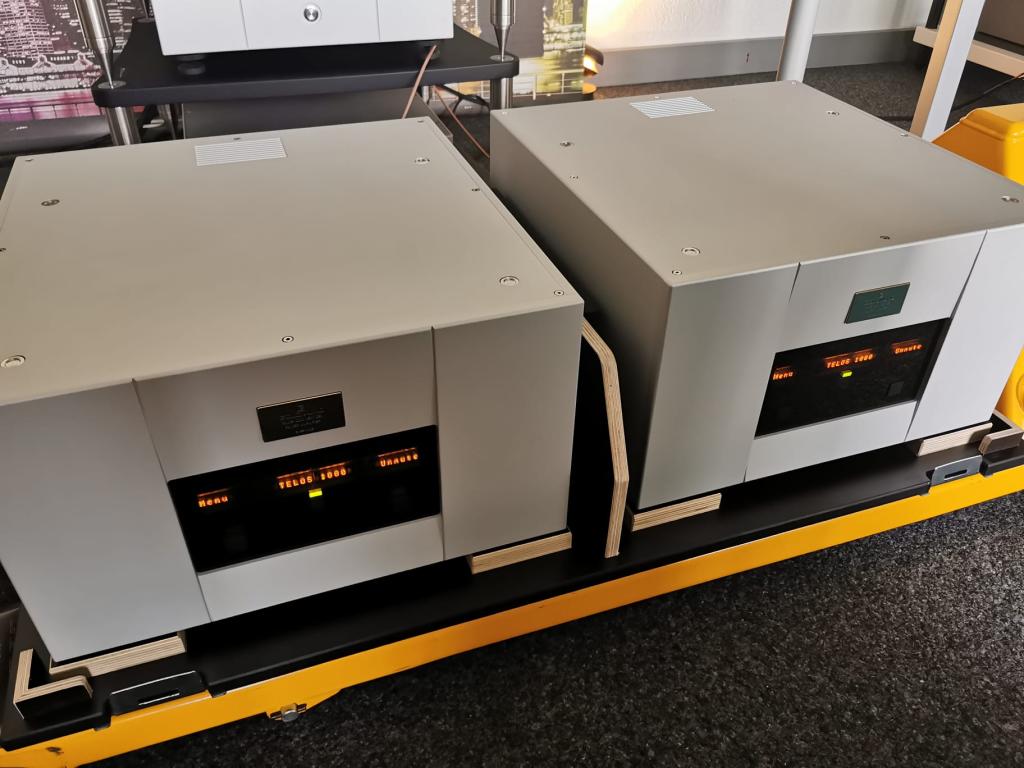

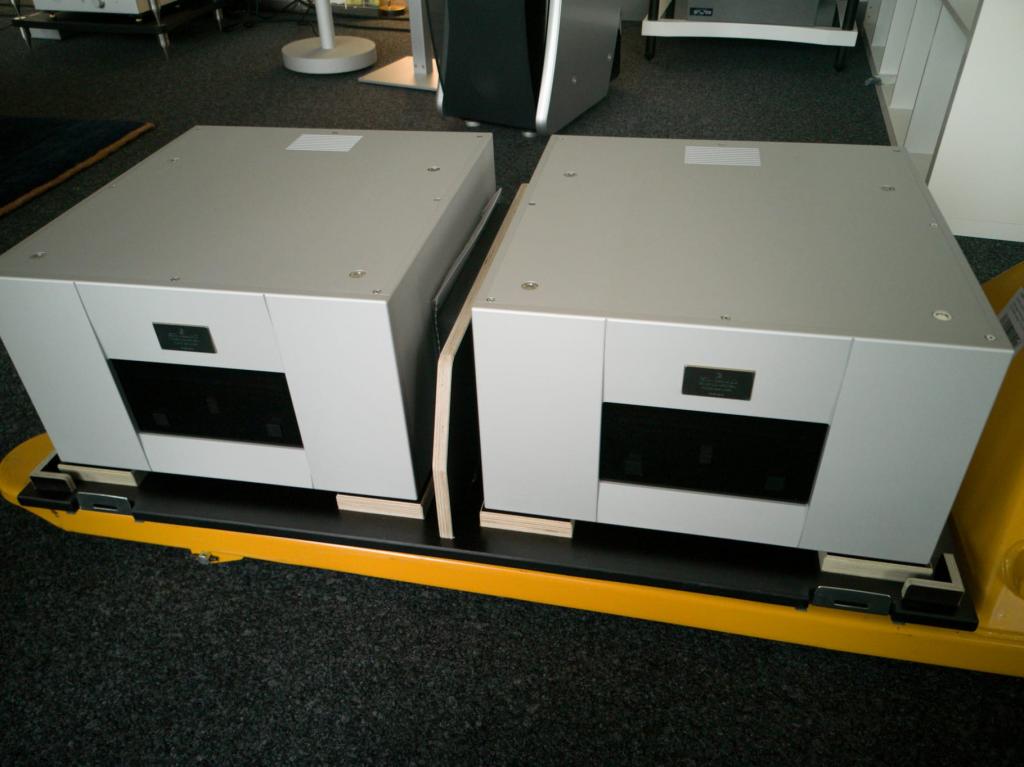

2 pces.
Warranty 1 year
ONE AMP, ONE SPEAKER UNIT
A truly stellar universal mono amplifier whose design includes the latest amplification board developed for the best and most powerful amplifier on the market today: the Goldmund Telos 5500 NextGen.
SPECIFICATIONS
OUTPUT POWER
Maximum power (IEC60065): 365 Wrms on 8 Ω / 1 % THD.
DAMPING FACTOR
600 at 1 kHz / 8 Ω.
OUTPUT NOISE FLOOR
Analog input terminated with RCA Shorting Caps, unloaded: < 3 μV from 20 Hz to 20 kHz.
GAIN
35 dB.
DISTORTION
IMD (SMPTE), unloaded: < 0.05 %.
THD+N, unloaded: < 0.05 % from 20 Hz to 20 kHz at 30 Vrms output.

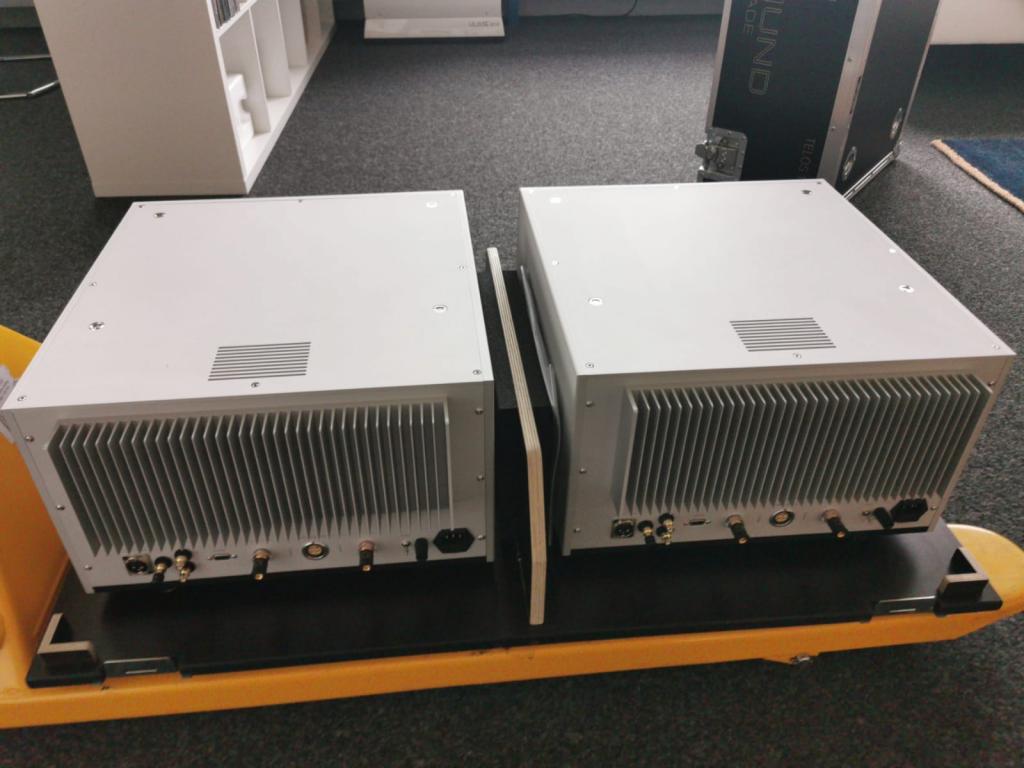

REAR PANEL
Power cord: universal socket 3 lugs.
Main fuse (4 A slow-blow for 230 V) ; (8 A slow-blow for 115 V).
AC black GND binding post.
Ground lift switch.
2 x output binding posts (red & black).
1 x output speaker Lemo 4B type connector.
Analog RCA input (unbalanced connector).
Analog XLR input (balanced connector).
Digital input and output RCA connectors.
RS232 command connector.
INPUT
Max level before clipping:
Analog input: 1 Vrms.
Digital input: -6 dBFS.
OUTPUT
Max level before clipping:
1 % THD, unloaded: 170 Vpp.
RATED POWER CONSUMPTION
IEC 60065, 1/8 Output Power at 8 Ω: 220 W.
POWER SUPPLY
Nominal line voltage: 115 V or 230 V.
Input voltage range: +/- 15 %.
DYNAMIC RANGE
22 kHz measurement bandwidth (flat), true RMS unloaded: 110 dB.
DIMENSIONS & WEIGHT
44 W x 49 D x 28 H (cm).
60 kg.
Ausstattung & technische Daten
OUTPUT POWER
Maximum power (IEC60065): 365 Wrms on 8 Ω / 1 % THD.
DAMPING FACTOR
600 at 1 kHz / 8 Ω.
OUTPUT NOISE FLOOR
Analog input terminated with RCA Shorting Caps, unloaded: < 3 μV from 20 Hz to 20 kHz.
GAIN
35 dB
DISTORTION
IMD (SMPTE), unloaded: < 0.05 %.
THD+N, unloaded: < 0.05 % from 20 Hz to 20 kHz at 30 Vrms output.
REAR PANEL
Power cord: universal socket 3 lugs.
Main fuse (4 A slow-blow for 230 V) ; (8 A slow-blow for 115 V).
AC black GND binding post.
Ground lift switch.
2 x output binding posts (red & black).
1 x output speaker Lemo 4B type connector.
Analog RCA input (unbalanced connector).
Analog XLR input (balanced connector).
Digital input and output RCA connectors.
RS232 command connector.
INPUT
Max level before clipping:
Analog input: 1 Vrms.
Digital input: -6 dBFS.
OUTPUT
Max level before clipping:
1 % THD, unloaded: 170 Vpp.
RATED POWER CONSUMPTION IEC 60065, 1/8 Output Power at 8 Ω: 640 W.
IEC 60065, 1/8 Output Power at 8 Ω: 220 W.
POWER SUPPLY
Nominal line voltage: 115 V or 230 V.
Input voltage range: +/- 15 %.
DYNAMIC RANGE
22 kHz measurement bandwidth (flat), true RMS unloaded: 110 dB.
DIMENSIONS & WEIGHT
44 W x 49 D x 28 H (cm).
60 kg.
www.highendcinema.ch / www.goldmund.com
