Goldnote Gold Note PA10
Preis: 1.170,00 €
| Gebrauchtgerät
Produktdetails
- Produktgruppe
- Transistor-Endverstärker
- Hersteller
- Goldnote
- Funktion
- einwandfrei
- Alter
- 1 Jahre Nach Schätzung
- Gebrauchszustand
- gebraucht
- Optik
- neuwertig
- Zubehör
- komplett ohne OVP
- Neupreis
- 1.800,00 €
- Preis
- 1.170,00 €
- Weitere Informationen
- http://www.goldnote.it/
Beschreibung
Gold Note PA-10 class power amplifier. In impeccable condition, with all accessories (box, manual, etc.). Real photos.
Compact amplifier, stable in 2 ohms, WBT connectivity, proprietary Gold Note technology. Can be used in both stereo and mono.
Many positive reviews can be found on the internet.

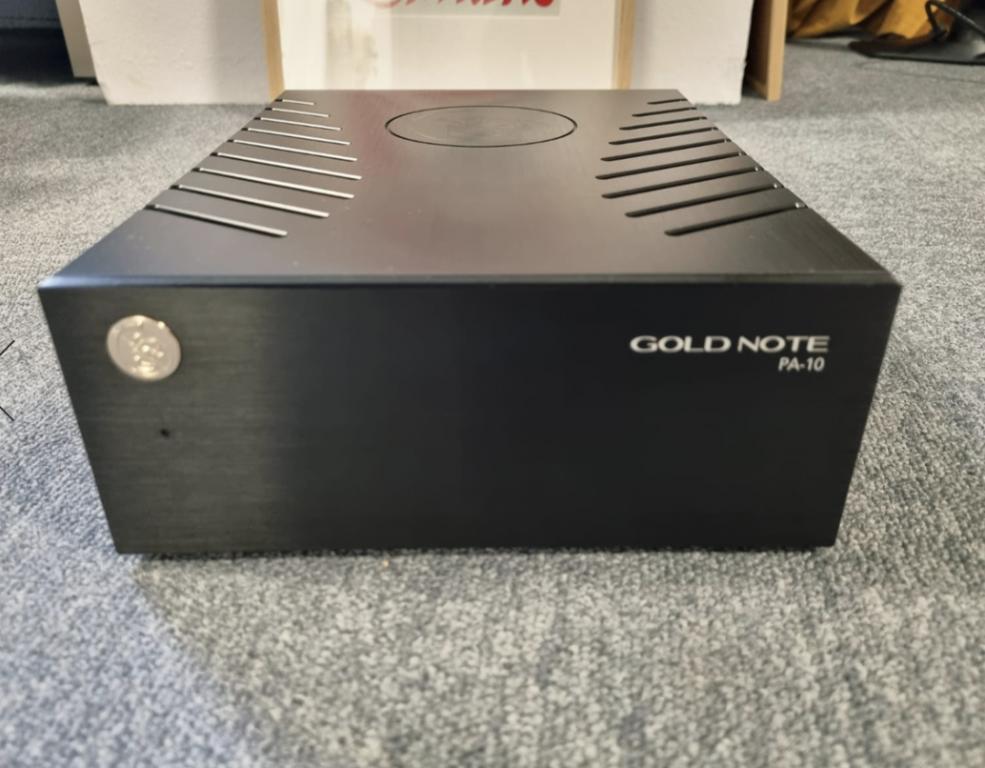

PA-10 is a compact, high-performance and extremely versatile power amplifier, suitable for any modern high-end audio system, with the possibility of being used in both Stereo and Mono mode. The aesthetics of the chassis are derived from the other products in the 10 Series, integrating the PA-10 into a coherent concept inspired by the Italian style and modular design characteristic of Gold Note. The chassis is made of thick aluminum panels and carefully selected audio components.
The PA-10 was designed with the desire to create a power amplifier with compact dimensions, but characterized by high power and the ability to handle any type of speaker. The proprietary technology developed for the PA-10 makes it comparable to a Class A amplifier, doubling the power and reducing the speaker impedance. It offers 75W @ 8Ω, 150W @ 4Ω and 300W @ 2Ω in stereo mode and an impressive 300W @ 8Ω and 600W @ 4Ω in mono mode.
The PA-10 stands out for its excellent versatility: thanks to the adjustable damping factor and the BTL (Bridge-Tied-Load) function, it can be perfectly suited to any type of speaker, whether large and difficult to drive (DF High), or with high sensitivity or mini-monitors (DF Low). The XLR stereo output allows the PA-10 to be configured in series for high-quality multi-room solutions, facilitated by automatic On/Standby mode based on the received audio signal.
The PA-10 is equipped with RCA and XLR inputs and optionally offers the possibility of connecting to two different sources simultaneously. It is easy to use thanks to the GN Link technology, which allows the use of two or more amplifiers in master-slave mode together with other compatible units (turning on/off all units connected via GN Link).
PA-10 – Technical Specifications
Output Power:
75W @ 8Ω per channel (stereo)
150W @ 4Ω per channel (stereo)
300W @ 2Ω (stereo)
300W @ 8Ω in mono (BTL)
600W @ 4Ω in mono (BTL)
Frequency Response: 10Hz – 30kHz (+/-1dB)
Total Harmonic Distortion (THD): 0.05%
Damping Factor:
- High: 250
- Low: 25
Input Sensitivity: 1.4V RMS (RCA and XLR)
Input Impedance: 13kΩ (RCA and XLR)

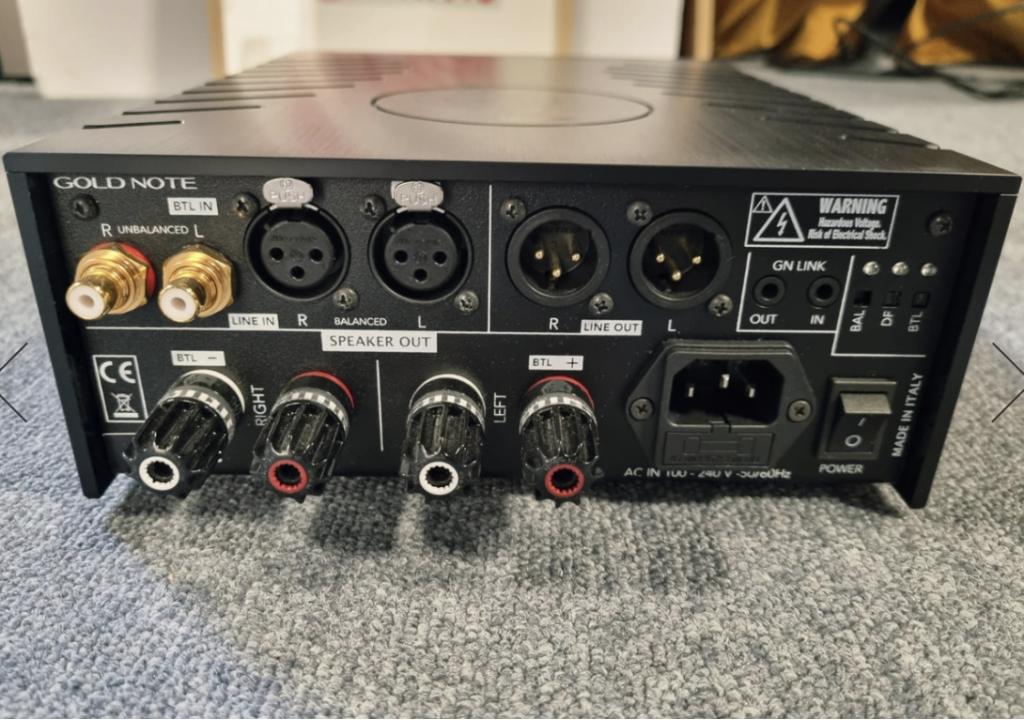

Audio Inputs
- Stereo RCA (unbalanced)
- Stereo XLR (balanced)
Audio Outputs
- Gold Plated Binding Posts
Power
- Supply Voltage: 100–240V, 50/60Hz
Standby power: < 1W
No signal power: < 10W
Rated power: 600W
Dynamic power: max. 1400W
Fuse: 6.3A T
Dimensions and Weight
- Dimensions: 200 mm wide × 80 mm high × 260 mm deep
- Dimensions in box: 290 × 180 × 390 mm
- Weight: 4 kg (net), 5 kg (packed)
Compact amplifier, stable in 2 ohms, WBT connectivity, proprietary Gold Note technology. Can be used in both stereo and mono.
Many positive reviews can be found on the internet.
PA-10 is a compact, high-performance and extremely versatile power amplifier, suitable for any modern high-end audio system, with the possibility of being used in both Stereo and Mono mode. The aesthetics of the chassis are derived from the other products in the 10 Series, integrating the PA-10 into a coherent concept inspired by the Italian style and modular design characteristic of Gold Note. The chassis is made of thick aluminum panels and carefully selected audio components.
The PA-10 was designed with the desire to create a power amplifier with compact dimensions, but characterized by high power and the ability to handle any type of speaker. The proprietary technology developed for the PA-10 makes it comparable to a Class A amplifier, doubling the power and reducing the speaker impedance. It offers 75W @ 8Ω, 150W @ 4Ω and 300W @ 2Ω in stereo mode and an impressive 300W @ 8Ω and 600W @ 4Ω in mono mode.
The PA-10 stands out for its excellent versatility: thanks to the adjustable damping factor and the BTL (Bridge-Tied-Load) function, it can be perfectly suited to any type of speaker, whether large and difficult to drive (DF High), or with high sensitivity or mini-monitors (DF Low). The XLR stereo output allows the PA-10 to be configured in series for high-quality multi-room solutions, facilitated by automatic On/Standby mode based on the received audio signal.
The PA-10 is equipped with RCA and XLR inputs and optionally offers the possibility of connecting to two different sources simultaneously. It is easy to use thanks to the GN Link technology, which allows the use of two or more amplifiers in master-slave mode together with other compatible units (turning on/off all units connected via GN Link).
PA-10 – Technical Specifications
Output Power:
75W @ 8Ω per channel (stereo)
150W @ 4Ω per channel (stereo)
300W @ 2Ω (stereo)
300W @ 8Ω in mono (BTL)
600W @ 4Ω in mono (BTL)
Frequency Response: 10Hz – 30kHz (+/-1dB)
Total Harmonic Distortion (THD): 0.05%
Damping Factor:
- High: 250
- Low: 25
Input Sensitivity: 1.4V RMS (RCA and XLR)
Input Impedance: 13kΩ (RCA and XLR)
Audio Inputs
- Stereo RCA (unbalanced)
- Stereo XLR (balanced)
Audio Outputs
- Gold Plated Binding Posts
Power
- Supply Voltage: 100–240V, 50/60Hz
Standby power: < 1W
No signal power: < 10W
Rated power: 600W
Dynamic power: max. 1400W
Fuse: 6.3A T
Dimensions and Weight
- Dimensions: 200 mm wide × 80 mm high × 260 mm deep
- Dimensions in box: 290 × 180 × 390 mm
- Weight: 4 kg (net), 5 kg (packed)
