Hypex Modules Hypex Ncore et Ncore X : NC1200 + NCX252MP / Ncx102ext as NEW
Preis: 370,00 €
| Neugerät
Produktdetails
- Produktgruppe
- Endverstärker
- Hersteller
- Hypex
- Funktion
- Neugerät
- Alter
- 1 Jahre Laut Vertrieb
- Gebrauchszustand
- neu
- Optik
- neuwertig
- Zubehör
- komplett mit OVP
- Preis
- 370,00 €
- Weitere Informationen
- https://www.hypex.nl/
Beschreibung
Hi,

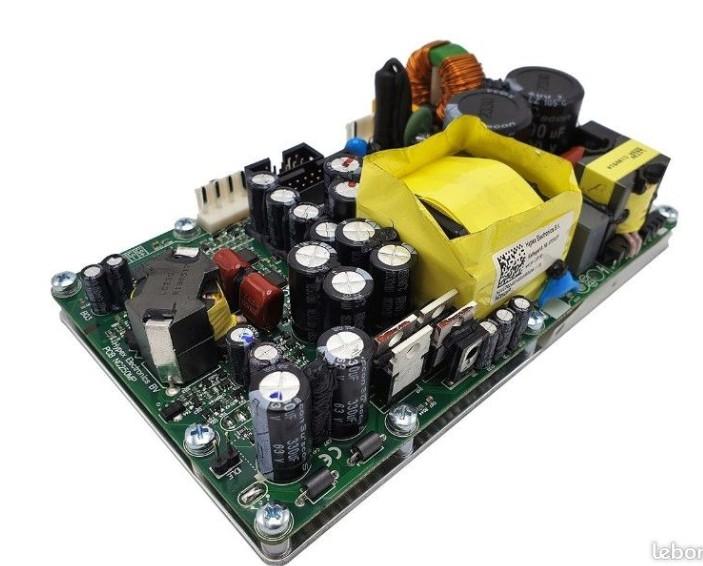

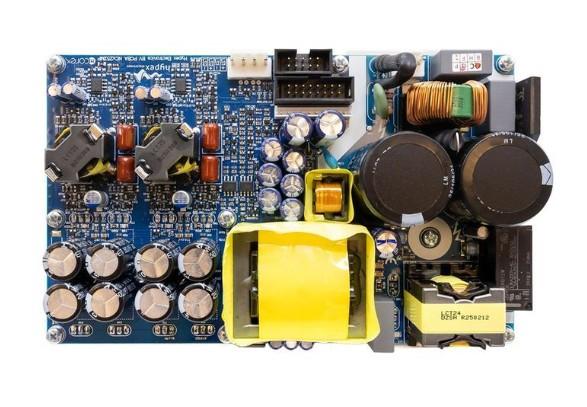

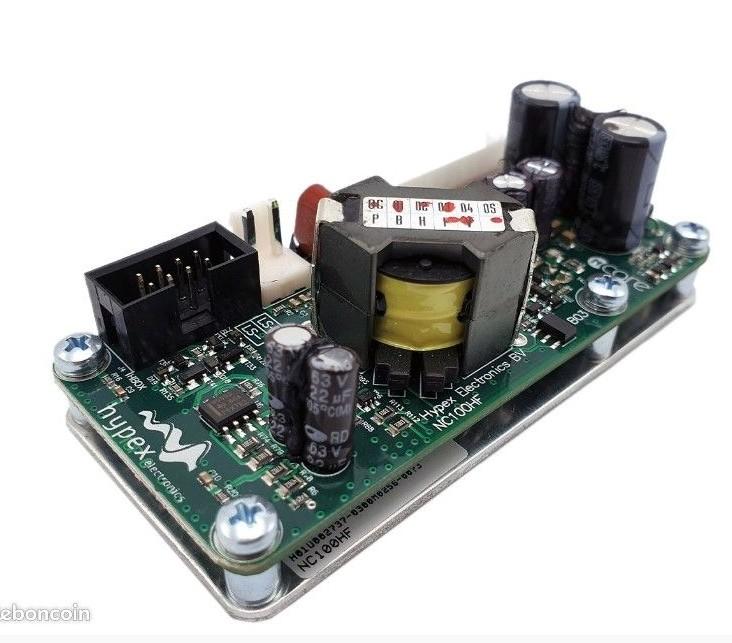

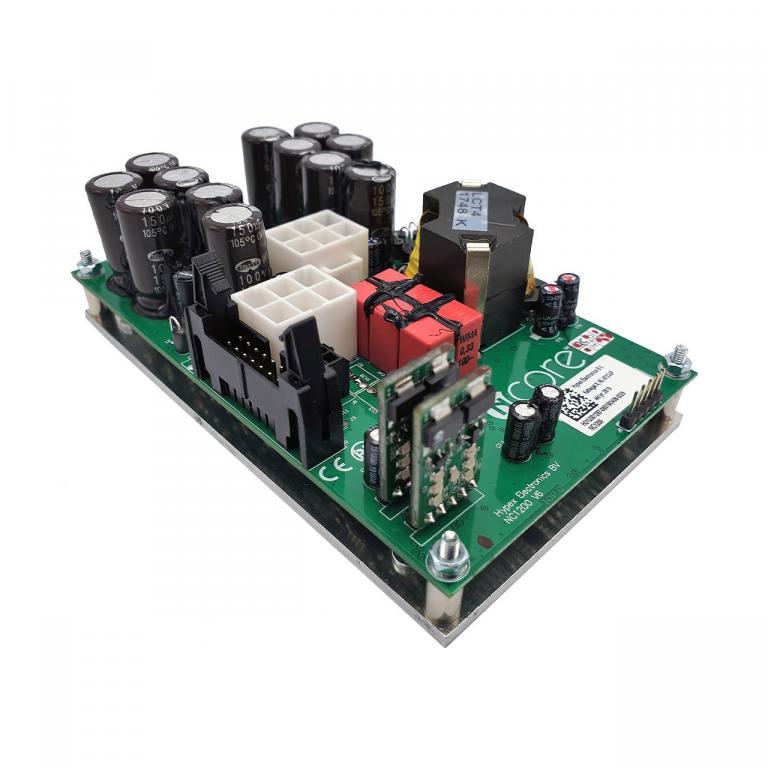

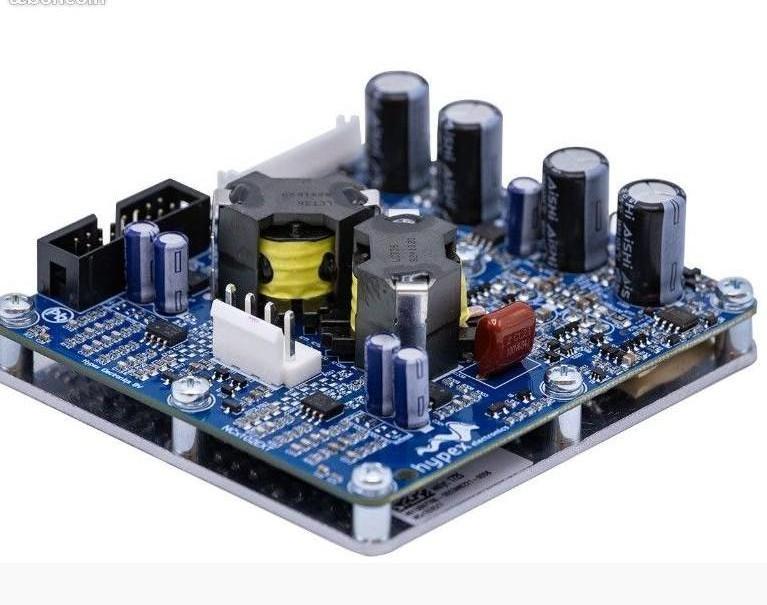

I am selling some Hypex Ncore and Ncore X (new gen) modules
They are like new.
Perfect for any Diy Power amp, Active Speakers etc
The Hypex Ncore are the best Class D modules available on the market. They offer a lot of power with excellent THD+N (ultra low distortion). They are highly sought after in the audiophile market )
Pack NCX252MP + Ncx102Ext = 470€
Ncx252MP Alone = 370€
The NC1200 = 390€ per unit (I have 4 modules)
I offer the kit cables for free (value $25)
Shipment in EU only via DHL
Hypex NC1200 (compatible with PSU SMPS3kA400, SMPS3kA700, SMPS1200A400 et SMPS1200A700)
Output Power (2Ω): 1 x 1200W
Output Power (4Ω): 1 x 700W, 2400W (BTL)
Output Power (8Ω): 1 x 400W, 1400W (BTL)
HYpex NCX252MP + Ncx102Ext (for mid/highs extension)
Output Power (2Ω): 2 x 180W
Output Power (4Ω): 2 x 250W
Output Power (8Ω): 2 x 150W
NC1200 SPEC :
SPEC :
Bridgable: Yes
Output Power (2Ω): 1 x 1200W
Output Power (4Ω): 1 x 700W, 2400W (BTL)
Output Power (8Ω): 1 x 400W, 1400W (BTL)
Channels: 1
Distortion: 0.001%, 20Hz < f < 20kHz. Pout = 1W
Output Noise: 20 µV
Power Bandwidth: 20Hz - 35kHz
Frequency Response: DC 50kHz +0/-3dB. All loads
Power Supply Voltage: 35HV+/- (Min), 84HV+/- (Typ), 98HV+/- (Max) HV+/-
Idle Power: 15W (Typ), 17W (Max)
Output impedance: 2mΩ (Max) - f < 1kHz
Output Impedance: 3mΩ (Max) - f < 20kHz
HxR Ready: On board
Compatible SMPS: SMPS3kA400, SMPS3kA700, SMPS1200A400, SMPS1200A700
Family: NCORE® Family
Technology: NCORE®
NCX252 SPEC :
Output Power (2Ω): 2 x 180W
Output Power (4Ω): 2 x 250W
Output Power (8Ω): 2 x 150W
Channels: 2
Distortion: 0.0007% (Typ) - 0.002% (Max) - 20Hz < f < 20kHz. Pout = 1W
Power Bandwidth: 20Hz - 35kHz
Frequency Response: 10Hz (Min) - 50kHz (Max), +0/-3dB. All loads
Idle Power: 15.5W - SMPS + amplifiers
Output impedance: 0.6mΩ (Max) - f < 1kHz
Output Impedance: 5mΩ (Max) - f < 20kHz
Standby Output Voltage: 4.9 (Min), 5 (Typ), 5.1 (Max) Vdc
Standby Output Current: 1 A
Output Voltage Vaux: ±19 (Min), ±20 (Typ), ±21 (Max) Vdc - Symmetric power supply
Output Current Vaux: 1 Adc, Per rail
Family: Mains Powered NCOREx® Family
Technology: NCOREx®
NCX102Ext SPEC :
Puissance de sortie (4Ω) : 2 x 100 W
Puissance de sortie (8Ω) : 2 x 100 W
Chaînes : 2
Distorsion: 0,002 %, < 10 Hz - 20 kHz AES17 Pout = 1 W
Bruit de sortie : 16 (typ.), 40 (max.) µV
Bande passante électrique : 20 Hz - 35 kHz
Réponse en fréquence : 10 Hz (min.) - 50 kHz (max.), +0/-3 dB. Toutes charges
Impédance de sortie : 500 µΩ (max.), f < 1 kHz
Impédance de sortie : 5 mΩ (max.) - f < 20 kHz
Hypex Ncx102Ext
Puissance de sortie (4Ω) : 2 x 100 W
Puissance de sortie (8Ω) : 2 x 100 W
I am selling some Hypex Ncore and Ncore X (new gen) modules
They are like new.
Perfect for any Diy Power amp, Active Speakers etc
The Hypex Ncore are the best Class D modules available on the market. They offer a lot of power with excellent THD+N (ultra low distortion). They are highly sought after in the audiophile market )
Pack NCX252MP + Ncx102Ext = 470€
Ncx252MP Alone = 370€
The NC1200 = 390€ per unit (I have 4 modules)
I offer the kit cables for free (value $25)
Shipment in EU only via DHL
Hypex NC1200 (compatible with PSU SMPS3kA400, SMPS3kA700, SMPS1200A400 et SMPS1200A700)
Output Power (2Ω): 1 x 1200W
Output Power (4Ω): 1 x 700W, 2400W (BTL)
Output Power (8Ω): 1 x 400W, 1400W (BTL)
HYpex NCX252MP + Ncx102Ext (for mid/highs extension)
Output Power (2Ω): 2 x 180W
Output Power (4Ω): 2 x 250W
Output Power (8Ω): 2 x 150W
NC1200 SPEC :
SPEC :
Bridgable: Yes
Output Power (2Ω): 1 x 1200W
Output Power (4Ω): 1 x 700W, 2400W (BTL)
Output Power (8Ω): 1 x 400W, 1400W (BTL)
Channels: 1
Distortion: 0.001%, 20Hz < f < 20kHz. Pout = 1W
Output Noise: 20 µV
Power Bandwidth: 20Hz - 35kHz
Frequency Response: DC 50kHz +0/-3dB. All loads
Power Supply Voltage: 35HV+/- (Min), 84HV+/- (Typ), 98HV+/- (Max) HV+/-
Idle Power: 15W (Typ), 17W (Max)
Output impedance: 2mΩ (Max) - f < 1kHz
Output Impedance: 3mΩ (Max) - f < 20kHz
HxR Ready: On board
Compatible SMPS: SMPS3kA400, SMPS3kA700, SMPS1200A400, SMPS1200A700
Family: NCORE® Family
Technology: NCORE®
NCX252 SPEC :
Output Power (2Ω): 2 x 180W
Output Power (4Ω): 2 x 250W
Output Power (8Ω): 2 x 150W
Channels: 2
Distortion: 0.0007% (Typ) - 0.002% (Max) - 20Hz < f < 20kHz. Pout = 1W
Power Bandwidth: 20Hz - 35kHz
Frequency Response: 10Hz (Min) - 50kHz (Max), +0/-3dB. All loads
Idle Power: 15.5W - SMPS + amplifiers
Output impedance: 0.6mΩ (Max) - f < 1kHz
Output Impedance: 5mΩ (Max) - f < 20kHz
Standby Output Voltage: 4.9 (Min), 5 (Typ), 5.1 (Max) Vdc
Standby Output Current: 1 A
Output Voltage Vaux: ±19 (Min), ±20 (Typ), ±21 (Max) Vdc - Symmetric power supply
Output Current Vaux: 1 Adc, Per rail
Family: Mains Powered NCOREx® Family
Technology: NCOREx®
NCX102Ext SPEC :
Puissance de sortie (4Ω) : 2 x 100 W
Puissance de sortie (8Ω) : 2 x 100 W
Chaînes : 2
Distorsion: 0,002 %, < 10 Hz - 20 kHz AES17 Pout = 1 W
Bruit de sortie : 16 (typ.), 40 (max.) µV
Bande passante électrique : 20 Hz - 35 kHz
Réponse en fréquence : 10 Hz (min.) - 50 kHz (max.), +0/-3 dB. Toutes charges
Impédance de sortie : 500 µΩ (max.), f < 1 kHz
Impédance de sortie : 5 mΩ (max.) - f < 20 kHz
Hypex Ncx102Ext
Puissance de sortie (4Ω) : 2 x 100 W
Puissance de sortie (8Ω) : 2 x 100 W
Produktinformationen gemäß EU-Verordnung (GPSR)
Product intended for integration into an audio device by a qualified person.
The module operates directly from the mains (100-240 VAC) or a high-voltage power supply (depending on the model) and carries dangerous voltages that can cause electric shock.
Never use the module without a protective enclosure that prevents contact with live parts.
Disconnect the mains power and wait at least 10 minutes before performing any work to allow the capacitors to discharge.
Do not expose the product to moisture, rain, or splashing liquids.
Ensure adequate ventilation to prevent overheating.
Observe the isolation distances recommended by Hypex (minimum 6 mm between live parts and any conductive chassis parts, where applicable).
Handle the module with appropriate electrostatic discharge (ESD) precautions.
Do not modify the product or attempt repairs without appropriate qualifications.
The product contains no user-serviceable parts.
Use only in accordance with the manufacturer's specifications.
The manufacturer of the final device is responsible for the compliance of the complete product with applicable regulations.
The module operates directly from the mains (100-240 VAC) or a high-voltage power supply (depending on the model) and carries dangerous voltages that can cause electric shock.
Never use the module without a protective enclosure that prevents contact with live parts.
Disconnect the mains power and wait at least 10 minutes before performing any work to allow the capacitors to discharge.
Do not expose the product to moisture, rain, or splashing liquids.
Ensure adequate ventilation to prevent overheating.
Observe the isolation distances recommended by Hypex (minimum 6 mm between live parts and any conductive chassis parts, where applicable).
Handle the module with appropriate electrostatic discharge (ESD) precautions.
Do not modify the product or attempt repairs without appropriate qualifications.
The product contains no user-serviceable parts.
Use only in accordance with the manufacturer's specifications.
The manufacturer of the final device is responsible for the compliance of the complete product with applicable regulations.
