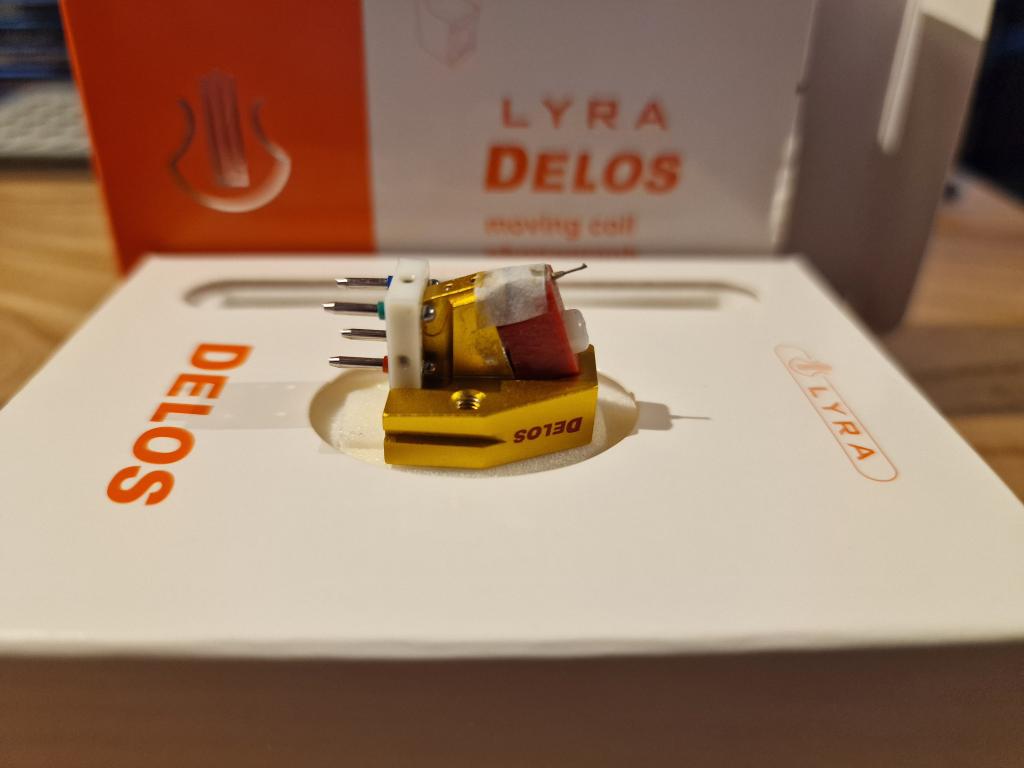

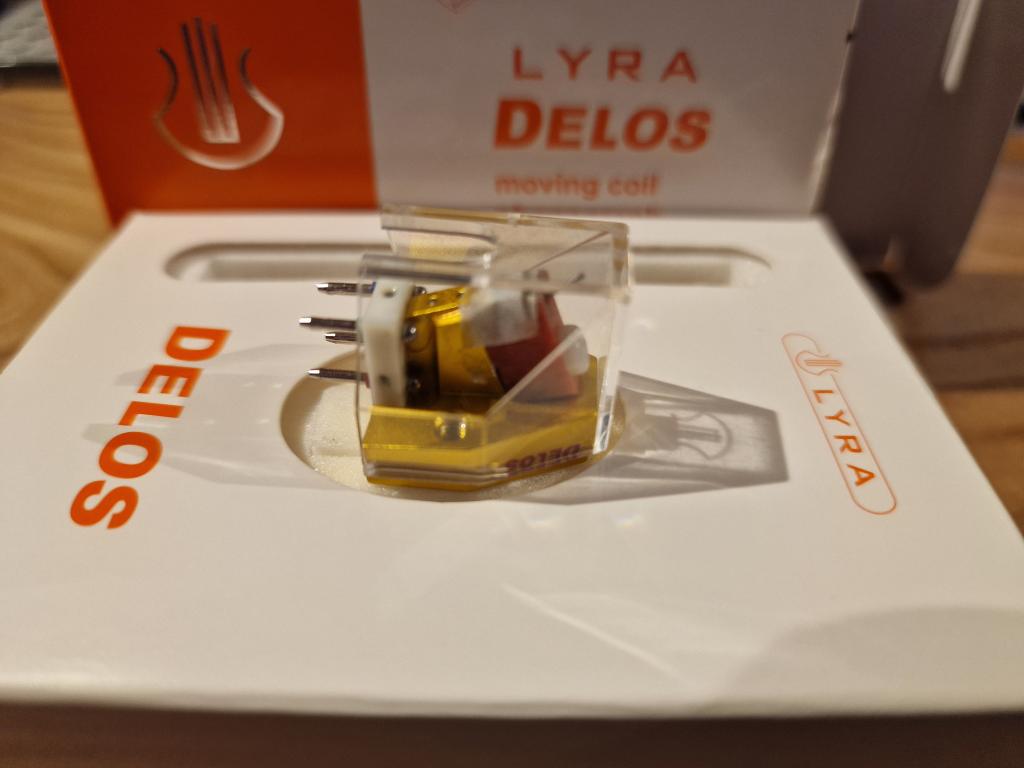

Lyra Delos MC System
Preis: 1.380,00 €
| Gebrauchtgerät
Produktdetails
- Produktgruppe
- Tonabnehmer MC
- Hersteller
- Lyra
- Funktion
- einwandfrei
- Alter
- 10 Monate
- Gebrauchszustand
- gebraucht
- Optik
- neuwertig
- Zubehör

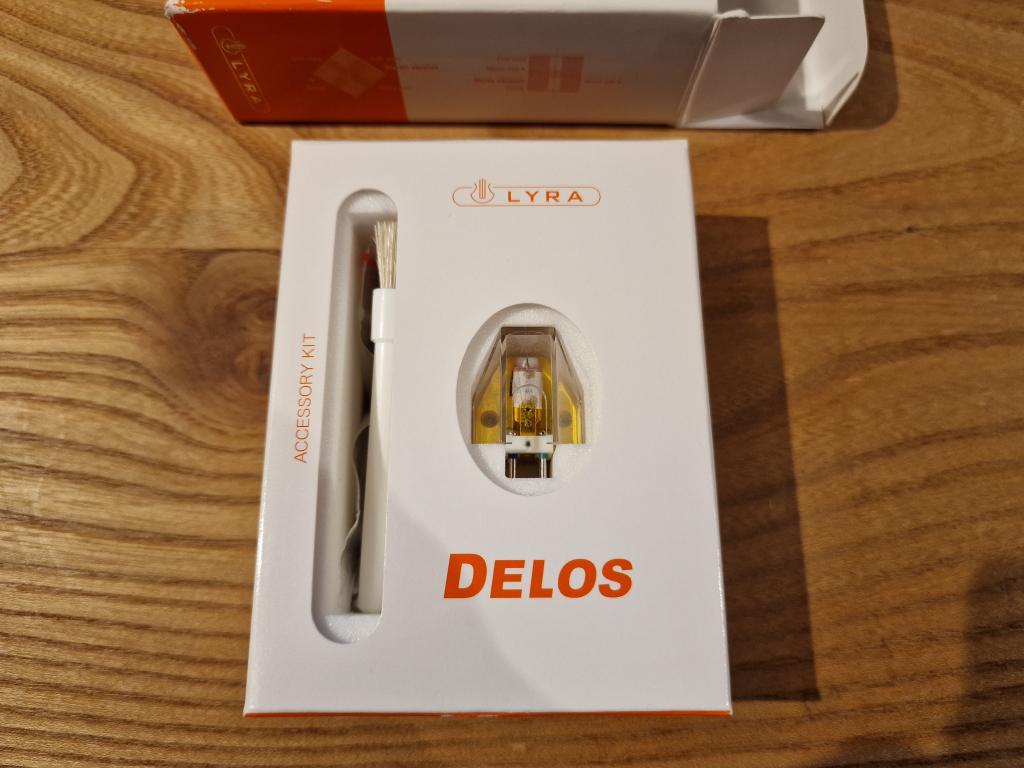

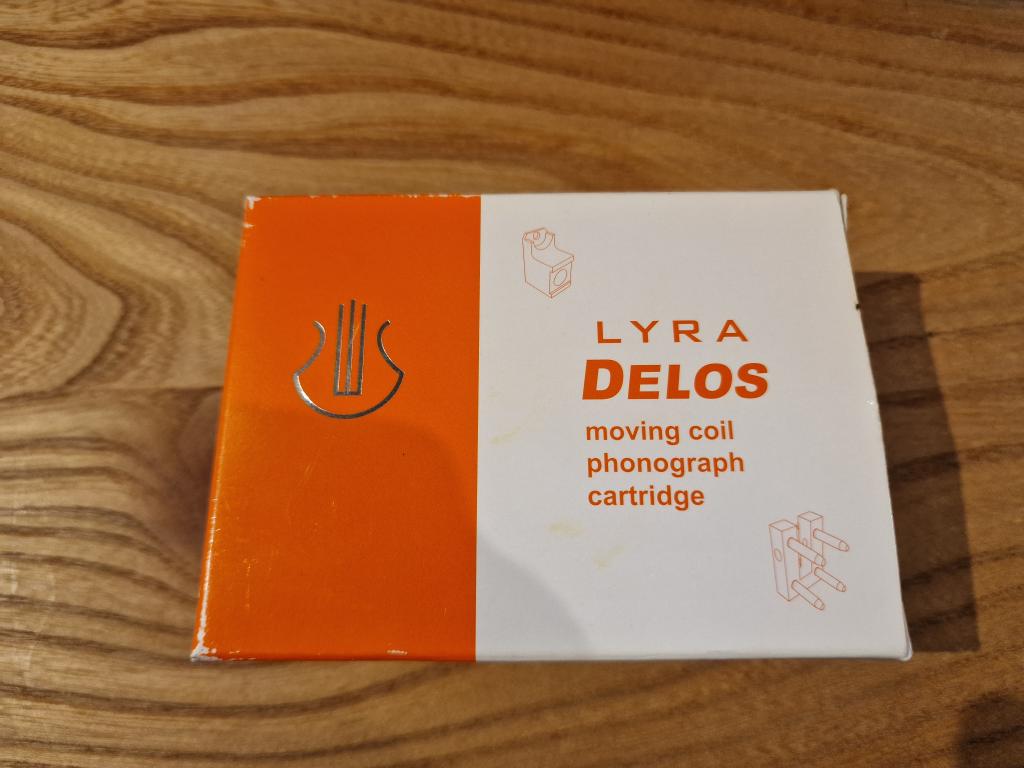

- komplett mit OVP
- Farbe
- siehe Fotos
- Neupreis
- 1.760,00 €
- Preis
- 1.380,00 €
- Weitere Informationen
- http://www.lyraconnoisseur.com/Products/Products.html
- Seriennummer
- auf Anfrage
Beschreibung
sehr wenig, unter 20 Stunden gelaufen, das System ist also noch nicht mal eingespielt,
Technische Daten :
Ausgangsspannung in mV 0,6
Auflagekraft in mN 17.5 (1.75 gramm)
Tonabnehmer Gewicht (gramm) 7.3
Compliance in µm/mN (Nadelnachgiebigkeit) 12
• Type : Medium weight, medium compliance, low-impedance moving coil cartridge
• Stylus: Namiki microridge line-contact nude diamond stylus (2.5um x 75um), surface-mounted
• Cantilever system: Solid boron rod with short one-point wire suspension, directly mounted into cartridge body
• Coils: 3-layer deep, 6N high-purity copper, square-shaped high-purity iron former, 6.3ohm self-impedance, 9.5uH inductance
• Output voltage: 0.6mV@5cm/sec., zero to peak, 45 degrees (CBS test record, other test records may alter results)
• Frequency range: 10Hz ~ 50kHz
• Channel separation: 30dB or better at 1kHz
• Compliance: Approx. 12 x 10-6cm/dyne at 100Hz
• Vertical tracking angle: 20 degrees
• Cartridge body: One-piece machining from solid 6063 aluminum billet, partially non-parallel shaping, body threaded directly for mounting screws
• Cartridge mounting screws: 2.6mm 0.45 pitch JIS standard
• Distance from mounting holes to stylus tip: 9.5mm
• Cartridge weight (without stylus cover): 7.3g
• Recommended tracking force: 1.7g ~ 1.8g (1.75g preferred)
• Recommended load directly into MC phono input: 97.6ohm ~ 806ohm (determine by listening, or follow detailed guidelines in user manual)
• Recommended load via step-up transformer: 5 ~15ohm (step-up transformer's output must be connected to 10kohm ~ 47kohm MM-level RIAA input, preferably via short, low-capacitance cable)
03322-2131655,
info@berlin-hifi.de
Technische Daten :
Ausgangsspannung in mV 0,6
Auflagekraft in mN 17.5 (1.75 gramm)
Tonabnehmer Gewicht (gramm) 7.3
Compliance in µm/mN (Nadelnachgiebigkeit) 12
• Type : Medium weight, medium compliance, low-impedance moving coil cartridge
• Stylus: Namiki microridge line-contact nude diamond stylus (2.5um x 75um), surface-mounted
• Cantilever system: Solid boron rod with short one-point wire suspension, directly mounted into cartridge body
• Coils: 3-layer deep, 6N high-purity copper, square-shaped high-purity iron former, 6.3ohm self-impedance, 9.5uH inductance
• Output voltage: 0.6mV@5cm/sec., zero to peak, 45 degrees (CBS test record, other test records may alter results)
• Frequency range: 10Hz ~ 50kHz
• Channel separation: 30dB or better at 1kHz
• Compliance: Approx. 12 x 10-6cm/dyne at 100Hz
• Vertical tracking angle: 20 degrees
• Cartridge body: One-piece machining from solid 6063 aluminum billet, partially non-parallel shaping, body threaded directly for mounting screws
• Cartridge mounting screws: 2.6mm 0.45 pitch JIS standard
• Distance from mounting holes to stylus tip: 9.5mm
• Cartridge weight (without stylus cover): 7.3g
• Recommended tracking force: 1.7g ~ 1.8g (1.75g preferred)
• Recommended load directly into MC phono input: 97.6ohm ~ 806ohm (determine by listening, or follow detailed guidelines in user manual)
• Recommended load via step-up transformer: 5 ~15ohm (step-up transformer's output must be connected to 10kohm ~ 47kohm MM-level RIAA input, preferably via short, low-capacitance cable)
