Merging Merging NADAC Player and NADAC Power

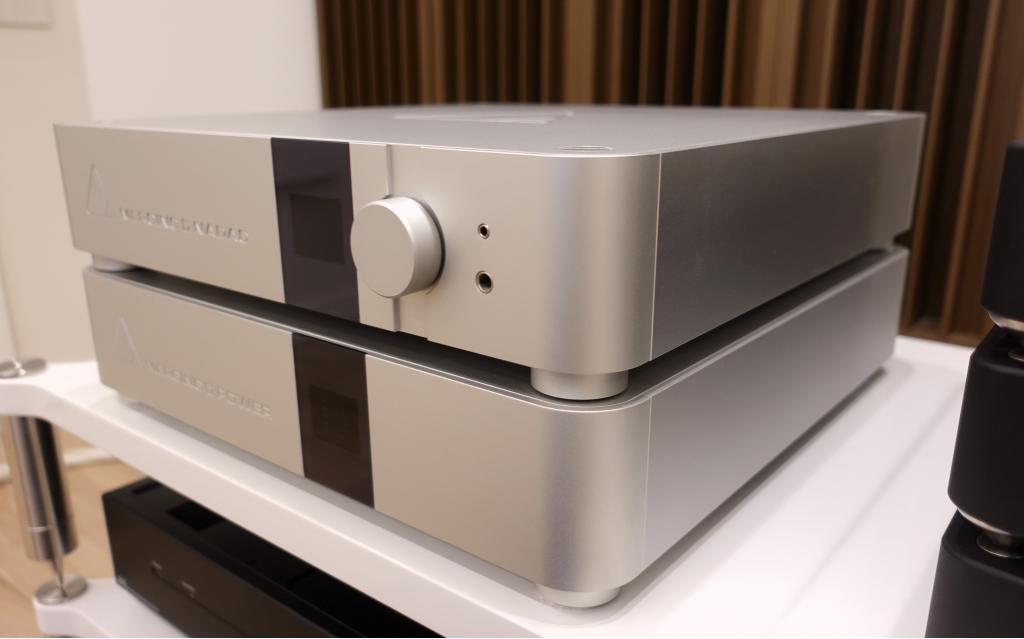

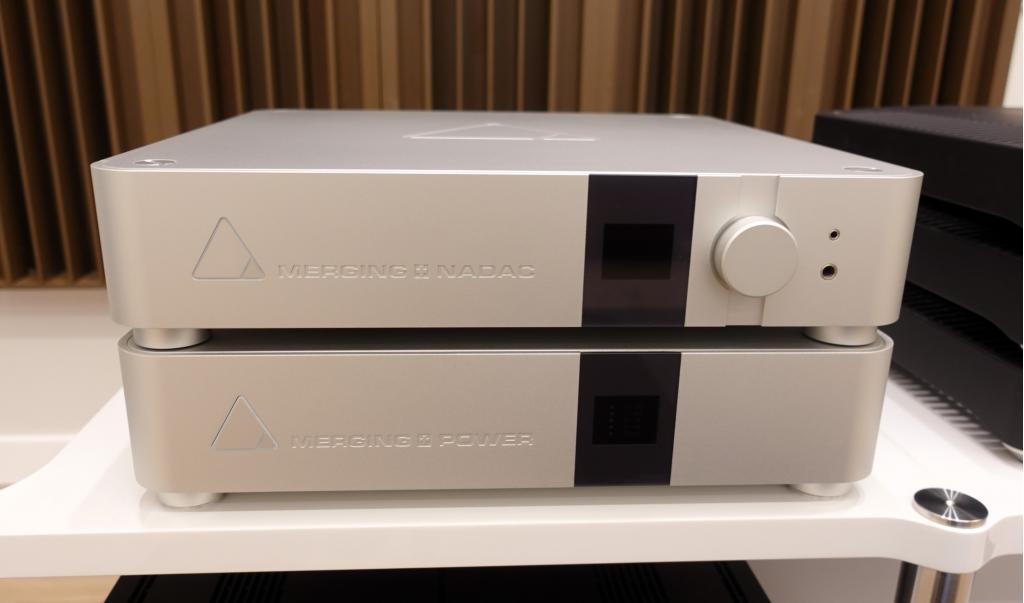

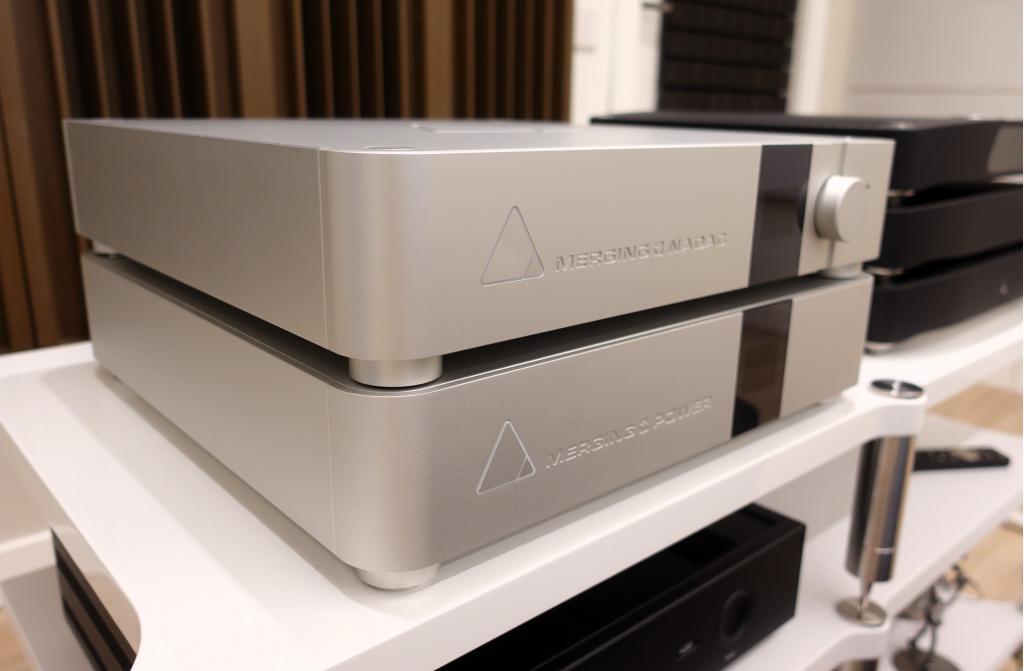

D/A converter from Swisse manufacturer Merging, model NADAC P°layer and Nadac Power (power supply).

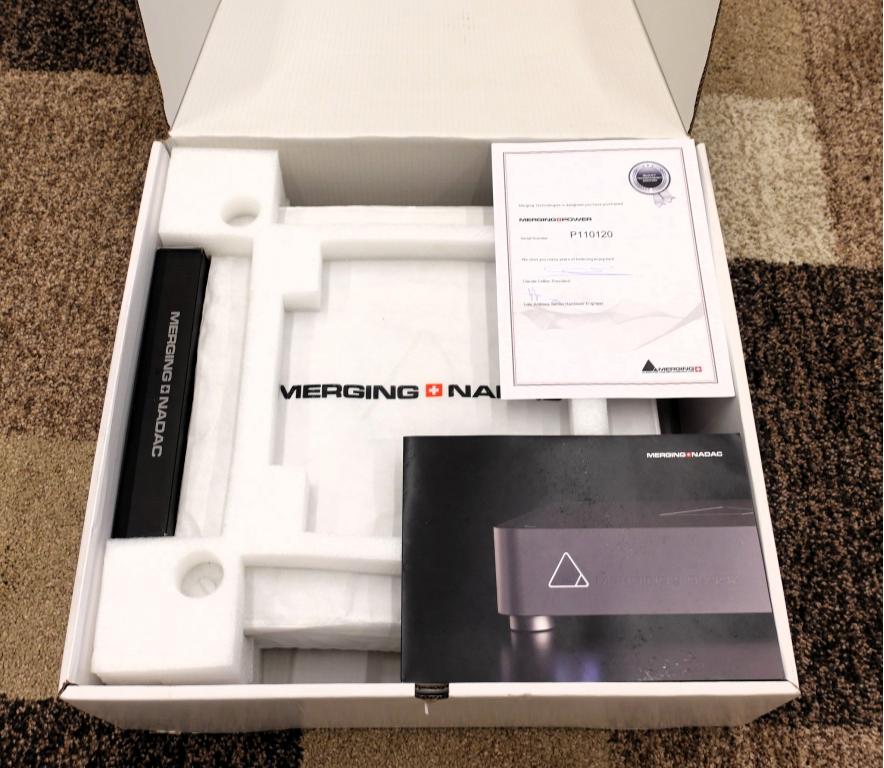

Both are like new with original box and equipmnet.
Also available the top of the line Merging NADAC CLOCK-U for sale in our advices, for an exceptional three-chassis digital front-end.

MERGING+PLAYER uses all the same audio components and offers the identical audio quality to the original MERGING+NADAC.
It enables connection to any player, server or computer on the network and its AES, Optical and Coaxial SPDIF inputs allow other digital equipment to be connected.
These are identical features to the original MERGING+NADAC but without the need to have an additional computer to access your music files. Simplicity itself!

MERGING+PLAYER internal CPU runs RoonCore and is controlled by any Roon Remote on tablet, smartphone or computer.
MERGING+PLAYER easily connects to your home network to access your music library directly on any NAS or server.
Additional or temporary music libraries stored on external drives or memory sticks can be connected on the back plate of MERGING+PLAYER on two dedicated USB ports.
MERGING+PLAYER requires to be connected on a Wifi router with access to the Internet, both to connect to your Roon Remote on tablet or smart phone and to the Roon Labs server for authentication, metadata access and additional services access such as Tidal or other services offered by Roon.

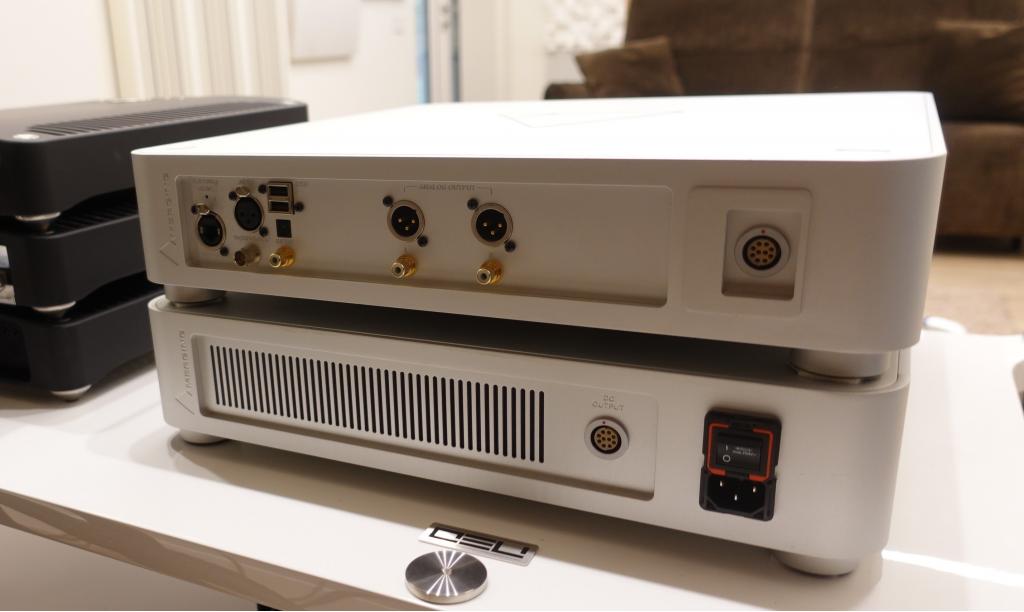

Analog Outputs
2 Balanced on 3-pin male XLR
2 Unbalanced RCA Phono connectors
Separate headphone sockets with 1/4" jack and mini-jack ( when connected to a network, the headphones and main outputs may be driven by different source if required)

Digital Inputs
Ethernet (RAVENNA/AES67) on RJ45 connector. Accepts 44.1kHz – 384kHz PCM, DXD, DSD 64, DSD128, DSD256
Asynchronous communication. The MERGING+NADAC controls the rate at which the digital audio data is sent to the DAC, not the computer or the player
Ultra-precise communication clocking driven by the DAC…. Precision Time Protocol is at the heart of RAVENNA, ensuring a clock resolution of one nanosecond
AES/EBU on 3-pin female XLR connector (44.1kHz - 192kHz PCM)
SPDIF Optical on Toslink connector (44.1kHz - 96kHz PCM)
SPDIF Coaxial on RCA Phono (44.1kHz - 96kHz PCM)

Additional:
Word Clock Input. BNC connector
MERGING+PLAYER offers two additional USB ports to connect music libraries on USB drives or memory sticks and allow for maintenance and system recovery.
Volume adjustment using the front panel rotary control
Main output and the headphone output levels may be independently adjusted

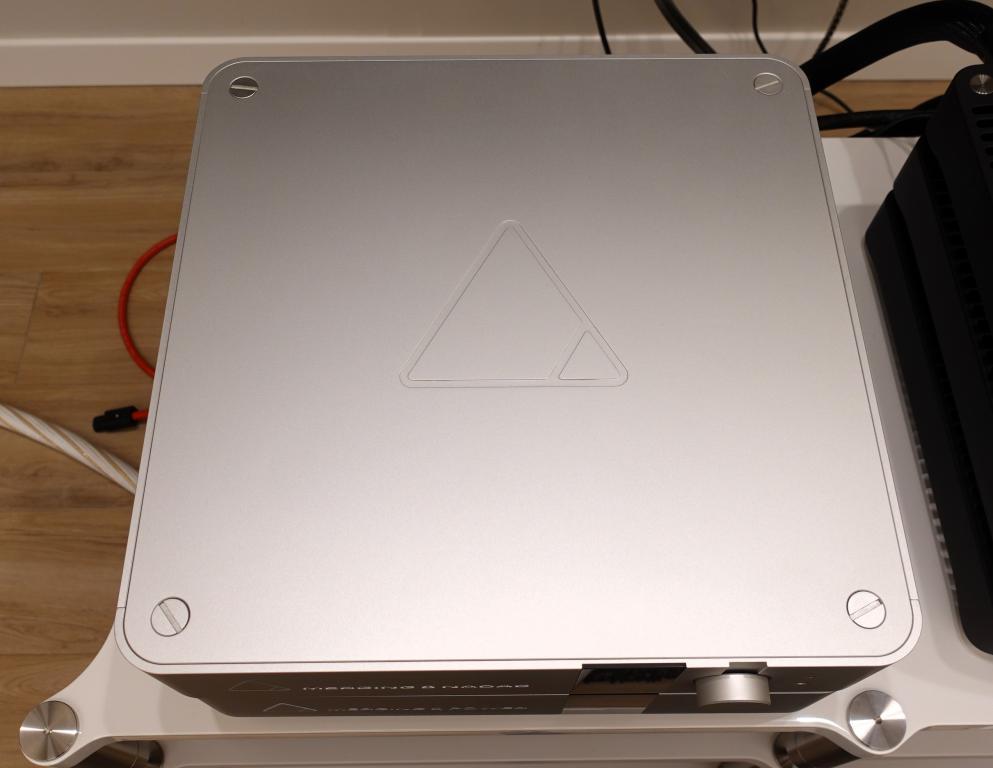

Enclosure material: Premium machined and anodized aluminium
Dimension: 435 W x 435 D x 95 H mm
Weight: 11 kg


MERGING+POWER is designed for the ultimate no-compromise audio performance. It boasts some very innovative features:

Hybrid design - Switch Mode mixed with Toroidal transformer
The Switch Mode powers the high current applications such as the main DSP/FPGA as well as the Media Player.
The Analog section powers the analog stage plus the noise sensitive digital areas.
Merging Capacitor Array (MCA) technology mixes three types of capacitor - Polymer + Aluminum + Polypropylene. The latter is designed to aerospace and military specifications.
Highest Specification FR-4 printed circuit board designed to deliver military grade performance in a severe environment.

Enclosure material: Premium machined and anodized aluminium
Dimension: 435 W x 435 D x 95 H mm
Weight: 17 kg


We are dealer and distributor in Italy and ship worldwide.
We accept wire transfer on our company bank account.
You can find the advice on our website at: www.mondoaudio.it/ads
