Musical Surroundings NOVA II Phono Vorverstärker mit eingebautem Akku und Netzteil

Kunden Inzahlungnahme.
Näheres gerne auf Anfrage.
Verkauf gegen realistisches Gebot.

High End Phonovorstufe mit eingebautem Akku für störungsfreien Batteriebetrieb.

Farbe: schwarz

UVP war 1299€

Gebaut in Kalifornien, ist die neue Nova II eine batteriebetriebene Phono Bühne mit unglaublicher Flexibilität und Leistung. Der Nova II ersetzt die beliebte Nova Phonomena. Unser Nova II Akku-Phono-Vorverstärker teilt ein verbessertes Chassis-Design unseres MYDAC II, verfügt über Dual-Mono, diskrete Schaltung mit umfangreicher Verstärkung und Ladeflexibilität und liefert den besten Klang in seiner Preisklasse.
Wie die Phonomena II und SuperNova II verfügt der Nova II über rückseitige Schalter für leicht zugängliche und hochflexible Verstärkungs- und Ladeeinstellung. Es verfügt über 2 wiederaufladbare interne NiMH-Dual-Mono-Akkus mit intelligenter Sensing-Auto-Ladefunktion. Alle Wechselstrom- und Ladeschaltungen trennen automatisch, wenn Sie im Batteriemodus hören. Der Nova II verfügt über ein verbessertes Gehäuse und verbesserte interne Komponenten.

The Nova II is a complete phonograph preamplifier with RIAA equalization that
amplifies the output signal of a phono cartridge, either moving coil or moving
magnet, up to a nominal “line level”. The Nova II may be used with a receiver or an
integrated amplifier. If you use separate components, a line level control unit
(preamp) is required before the power amp, since there is no built-in volume
control for the Nova II. The Nova II’s power supply is internal and connects to the
wall with the supplied wall mount transformer.

BASIC GAIN SETTINGS

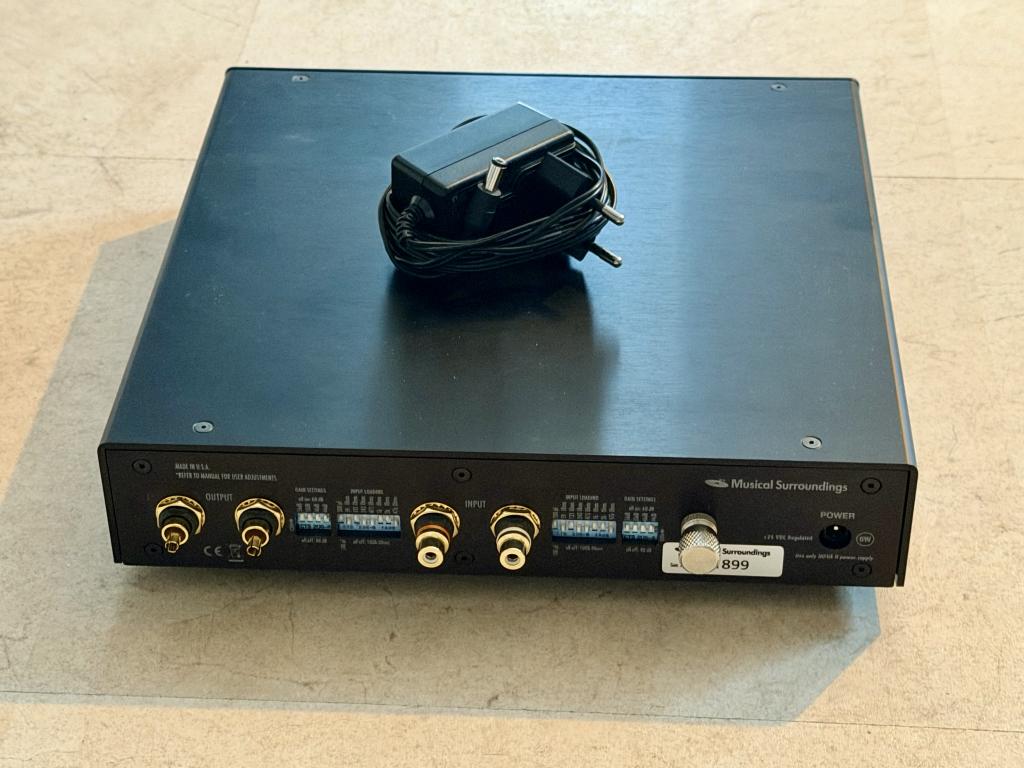

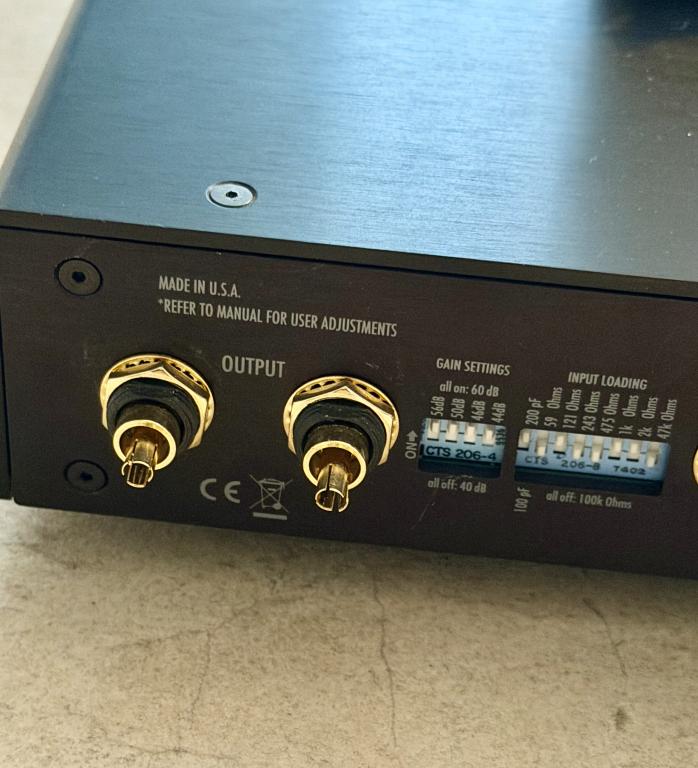

To set the gain, there are two sets of dip switches located on the Nova II’s back
panel. The two sets of four switches set the gain for the left and right channels.
Refer to your phono cartridge’s instruction manual for the suggested gain setting.
Factory settings are always 40dB for gain. Lower gain settings (40 and 44dB) are
intended for moving magnet cartridges or very high output moving coil cartridges
(>2.0 mV). Medium gain settings (46 and 50dB) are ideal for medium-output
moving-coils (.9-1.5mV). High gain settings (51 56 58 60dB) work well with low-output moving-coil
cartridges. Using a non-metallic object, push the switches UP for the ON position

NPUT LOADING SWITCH
30 - 100 000 Ohm möglich. (Siehe Bedienungsanleitung)

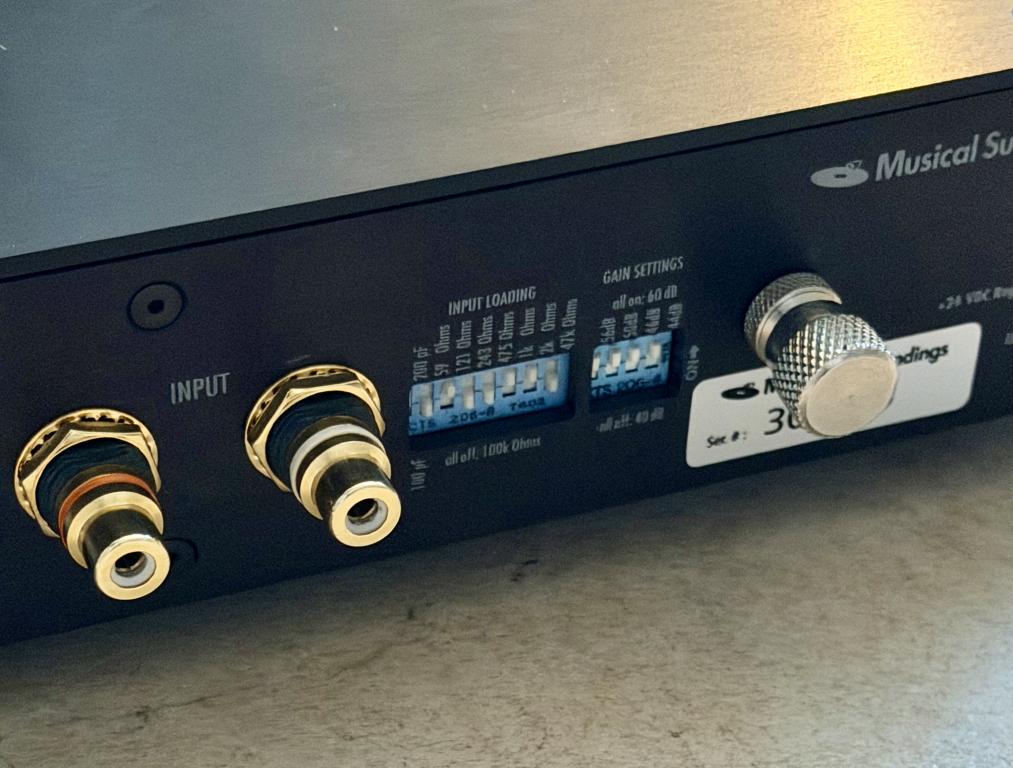

To set the input loading, there are two eight-position switches, one for each
channel, located on the rear panel. Refer to your cartridge owner’s manual to
determine proper input loading settings. The factory setting for input loading is
50,000 Ohms.
Switch #1 controls capacitive loading, which is often used with moving-magnet
cartridges and has little effect on moving-coil cartridges. When using a moving-coil
cartridge, you can try both capacitive loading positions to determine the effect.
CAPACITIVE LOADING (SWITCH #1): OFF=200pF; ON=300pF.
Switches #2-8 control resistive loading, which is primarily used with lower-output
moving-coil cartridges. Most moving-magnet along with medium and high-output
moving-coil cartridges use approximately 50,000 Ohms. Low-output moving-coil
cartridges typically use 2000 Ohms or less. Check the chart below and select the
closest loading value to the cartridge manufacturer’s recommended value.
Typically, a lower resistive setting provides increased focus and tighter bass, while
a higher setting provides more openness. Use a non-metallic object to select the
proper settings, flipping the switch UP to activate the ON setting.
