Rockna Rockna DAC Wavedream Sigantuer XLR
Preis: 7.500,00 €
| Ausstellungsstück
Produktdetails
- Produktgruppe
- D/A Wandler
- Hersteller
- Rockna
- Funktion
- einwandfrei
- Alter
- 3 Jahre 2 Monate
- Gebrauchszustand
- Ausstellungsstück
- Optik
- guter Zustand
- Zubehör
- komplett mit OVP
- Farbe
- Gris Alu
- Neupreis
- 17.400,00 €
- Preis
- 7.500,00 €
- Weitere Informationen
- http://www.rockna-line.com/
Beschreibung

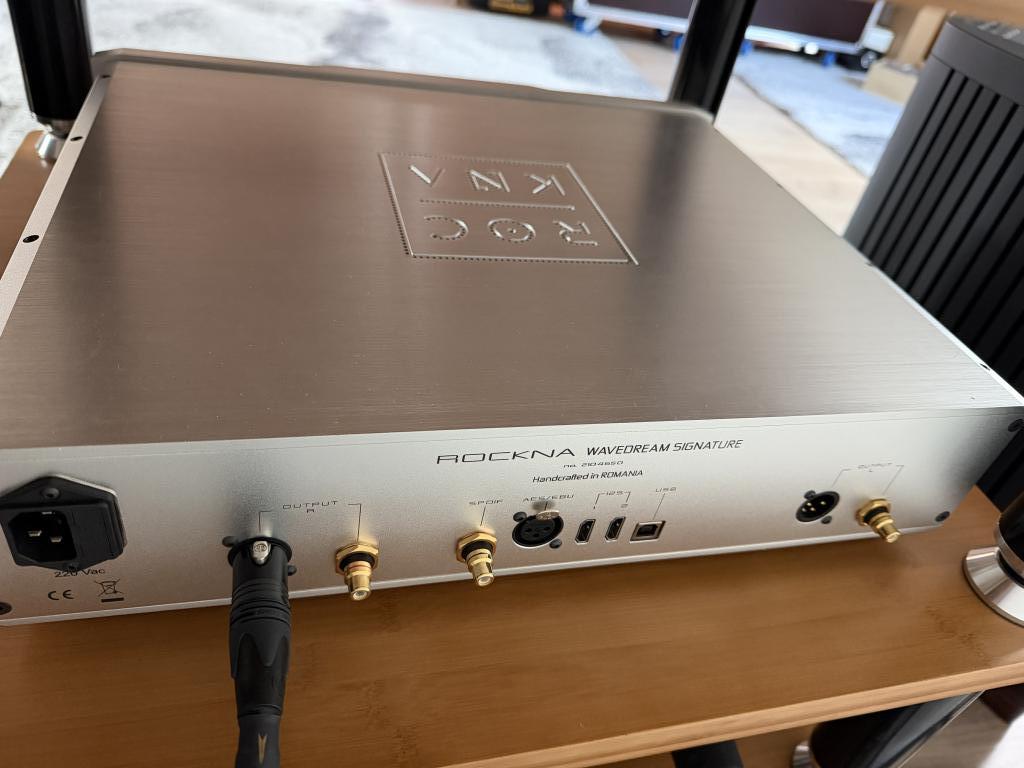

We are offering a Rockna WaveDream Signature XLR DAC for sale; it is in excellent working condition.
The WaveDream Signature XLR is a discrete R-2R DAC. Built around a proprietary FPGA architecture and featuring a fully discrete analog output stage, it embodies a no-compromise design philosophy, eschewing off-the-shelf digital-to-analog converter (DAC) chips.
Widely acclaimed by international critics for its natural reproduction, expansive soundstage, exceptional detail, and dynamics, it delivers a deeply immersive musical experience and remarkable transparency, along with deep, articulate, and perfectly controlled bass.

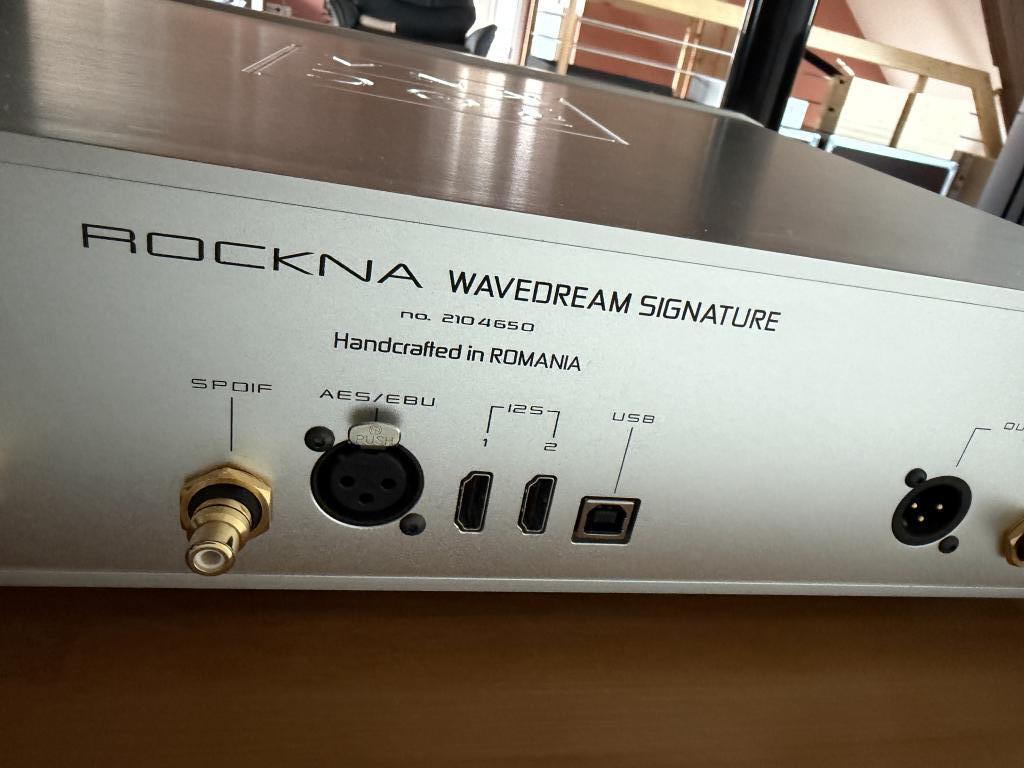

DIGITAL INPUTS
S/PDIF: 24-bit 44.1–192 kHz PCM; DoP DSD 64
AES/EBU: 24-bit 44.1–192 kHz PCM; DoP DSD 64
USB: 32-bit 44.1–384 kHz PCM; DSD 64–512
HD-Link1 (LVDS): 32-bit 44.1–384 kHz PCM; DSD 64–512
HD-Link2 (LVDS): 32-bit 44.1–384 kHz PCM; DSD 64–512
OUTPUTS (Wavedream Edition)
Total Harmonic Distortion (at –6 dB): 0.003% or –90 dB
Signal-to-Noise Ratio (0 dB): 122 dB
Dynamic Range: 122 dB
Output Impedance: 0.5 ohm
Maximum Voltage: 6.6V RMS (RCA); 13.2V RMS (XLR)
OUTPUTS (Wavedream Signature)
Total Harmonic Distortion (at –6 dB): 0.0008% or –102 dB
Signal-to-Noise Ratio (0 dB): 132 dB
Dynamic Range: 132 dB
Output Impedance: 0.5 ohm
Maximum Voltage: 10V RMS (RCA); 20V DC (XLR)
Digital Processing
Asynchronous, high-frequency digital input capture
560 MHz sampling rate
All-digital memory-based PLL (Phase-Locked Loop)
Jitter: 300 fS
Proprietary 16x oversampling digital filter (linear, minimum, or hybrid phase)
Filter type: Parks-McClellan, 4820 taps
Mathematical resolution: 68-bit integer
Stop-band attenuation: –145 dB
Pass-band tolerance: 0.0001 dB
Triangular probability density function (TPDF) dither
Volume control: 256 steps in 0.5 dB increments
Miscellaneous

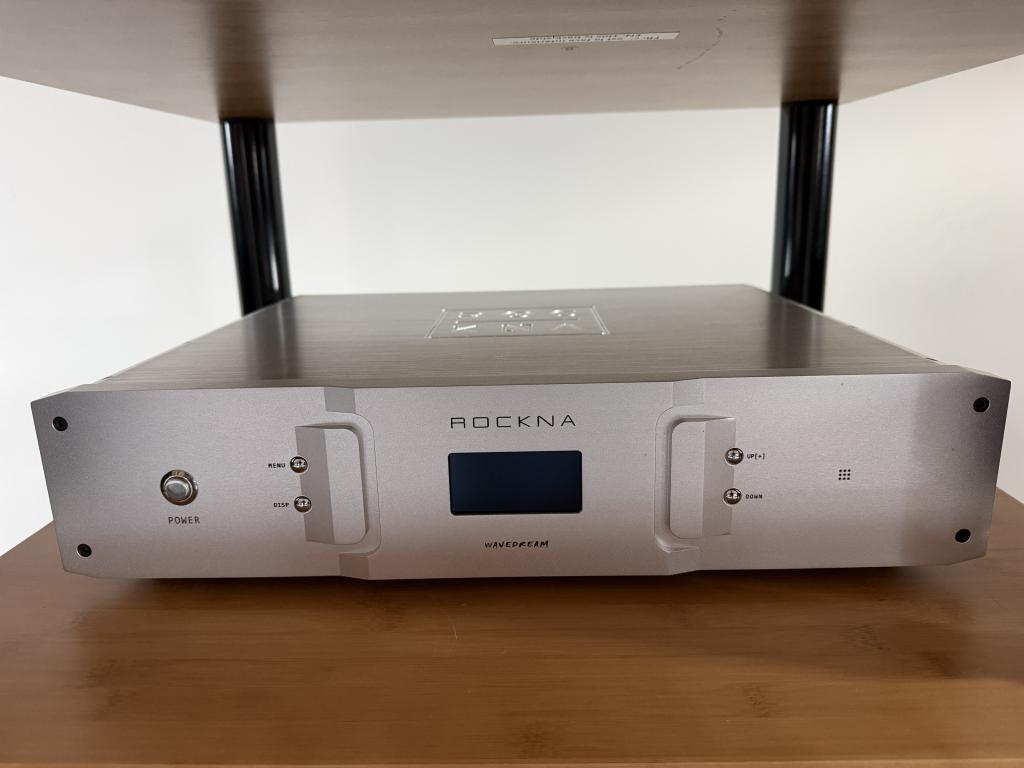

128×64 yellow display with 8 brightness/dimming levels
4 control switches
IR remote control
Software updates via USB
Dimensions (W x H x D): 440 x 90 x 360 mm
Weight: 7.8 kg
