Produktgruppe: CD Geräte

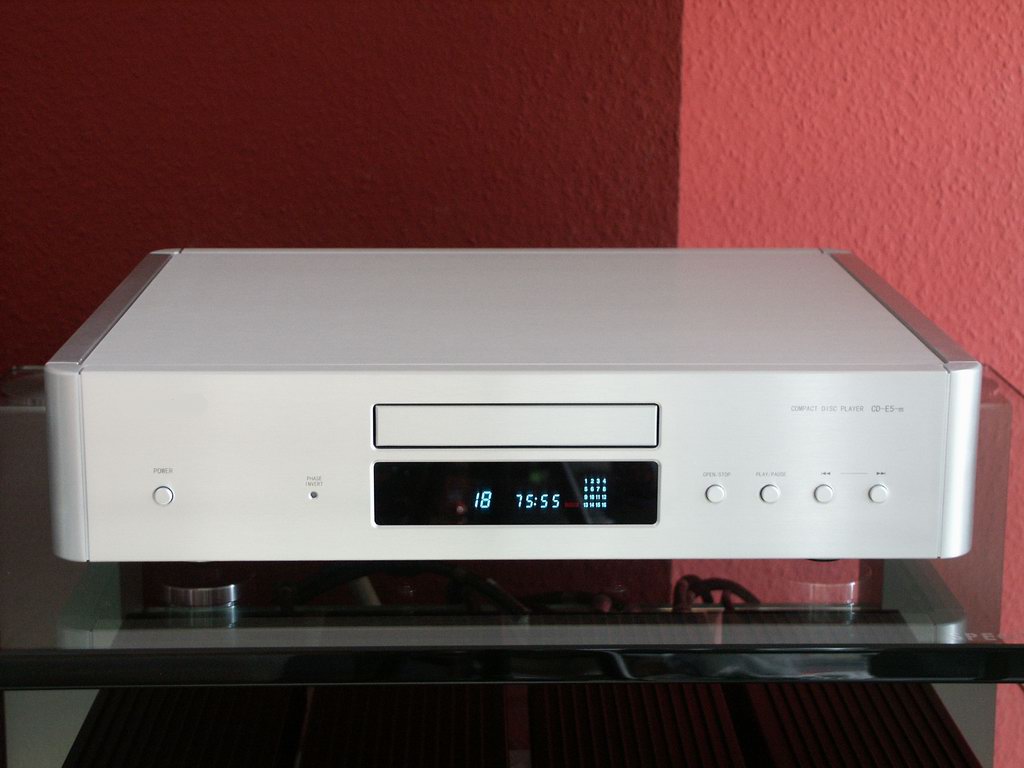

AUTHENTIC CD-E5-m, 24bit/192khz Upsampling

09.04.2009
AUTHENTIC CD-E5-m, 24bit/192khz Upsampling AUTHENTIC CD-E5-m, 24bit/192khz Upsampling
AUTHENTIC CD-E5-m: Der preiswerte Einstieg in die High-End-Klasse!


AUTHENTIC hat diesen eleganten Player mit hervorragendem Preis- Leistungsverhältnis
für den qualitäts- und preisbewussten Musikliebhaber konstruiert.
Der E5-m weist wichtige Grundzüge des Spitzenplayers Platinum Reference Edition auf
und hat dadurch auch einen sehr ähnlichen musikalischen Klangcharakter.

Hochwertiges Vollaluminium- Gehäuse gegen magnetische Verzerrungen, sowie eine
Aluminium- Fernbedienung sind bei AUTHENTIC selbstverständlich.



Vereinbaren Sie mit uns einen persönlichen Hörtermin in ruhiger Atmosphäre.
Wir freuen uns auf Ihren Besuch.

Mehr Informationen auch gerne telefonisch:
02064-609498





Beschreibung vorerst noch in Englisch:


1. an extremely high performance to price ratio cd player offering the taste of the E5 Platinum Reference Edition at only a small portion of its price.

2. It brings a new lease of life to your CDs and opens up a colorful musical spectrum.

3. with 19200uF Elna filtering capactance and design features based on the Signature Edition and Reference Edition.

4. fully differential voltage output 24bit / 192Khz DAC, 64 times oversampling.

5. Fully balanced pure Class A RCA output and Class AB XLR balanced output.

6. Other features including:

PHILIPS MACHANISM: MOUNTED ON A 5mm THICK ALUMINUM PLATE: OPTIMUM ENHANCEMENT ON STABILITY.

CHASSIS MADE OF POLISHED ALUMINUM OFFERING COMPLETE BLOCK ON INTERFERENCE.



TCCO / TCXO (TEMPERATURE COMPENSATED CRYSTAL OSCILLATOR) CLOCK SYSTEM: AS REFERENCE FREQUENCY COUPLED BY ADAPTATION OF CLOCK DISTRIBUTION SYSTEM (CDS). TCCO / TCXO IS AN EXTREMELY HIGH-END AND EXPENSIVE CLOCK SYSTEM WITH BETTER THAN 5ppm (part-per-million) ACCURACY - 200 FOLD IMPROVEMENT OVER STANDARD OSCILLATORS USED IN MOST CD PLAYERS. EXTREME HIGH-END CD PLAYERS INCORPORATED WITH TCCO / TCXO CLOCK SYSTEM INCLUDE: MARK LEVINSON 390S, WADIA 270, 270SE TRANSPORT SYSTEM AND WADIA 27iX DECODING COMPUTER.



CLOCK DISTRIBUTION SYSTEM (CDS): THE FIRST IN CHINA THAT EMPLOYS THIS HIGH-END TECHNIQUE - EACH COMPONENT REQUIRING THE REFERENCE FREQUENCY IS EQUIPPED WITH AN INDEPENDENT PATHWAY, WITH PRECISE IMP MATCHING. DIGITAL SIGNAL REFLECTION INTERFERENCE TO ANALOG SIGNAL CIRCUITS ARE BANNED. TCCO / TCXO + CDS HAVE TURNED E5 INTO A SUPREME ACCURATE AND HIGH PERFORMANCE DIGITAL TRANSPORT AS WELL.



CRYSTAL CLEAR ELECTRIC SUPPLY (CCES) TECHNIQUE: 10 SETS OF ISOLATED STABLE VOLTAGE SUPPLY EMPLOYING THE UNIQUE CCES TECHNIQUE TO ALL DIGITAL AND ANALOG SIGNAL PATHWAYS - COMPLETELY TACKLE CROSS INTERFERENCE. SPEICAL HANDMADE MASSIVE TOROIDAL TRANSFORMER WITH NO WELDING POINT OUTLETS. THERE IS A 3mm EXTRA ZINC PLATED STEEL BOARD UNDER THE TRANSFORMER: AGAINST ELECTROMAGNETIC INTERFERENCE. POWER SUPPLY BOARD EMPLOYS WIMA BLACK BOX - REVEALS THE GREAT EMPHASIS ON POWER SUPPLY.



TOTAL SEPARATED BUFFERED CIRCUIT DESIGN: THE NEW DEVELOPED CURRENT SERVO CIRCUIT AS OPPOSITE TO THE TRADITIONAL DC SERVO CIRCUIT SYSTEM - GREAT IMPROVEMENT ON LOW FREQUENCY EXTENSION AND RESOLUTION.





TECHNICAL:

FREQUENCY RESPONSE: 20Hz – 20KHz +/-0.2db

OUTPUT IMPEDENCE: 22ohms

DYNAMIC RANGE: 95db

S/N RATIO: 100db

THD: < 0.01% (UNBALANCED); < 0.005% (BALANCED)

CHANNEL SEPERATION: 96db

OUTPUT VOLTAGE: 2Vrms (UNBALANCED); 4Vrms (BALANCED)

DIGITAL OUTPUT (COAXIAL):

S/PDIP (SONY / PHILIPS), 6MB/s, 80MHz

DIGITAL OUTPUT (OPTICAL): JEITA CP-1201 TOS-LINK, 6MB/s

POWER CONSUMPTION: 18VA

DIMENSION: 430 x 345 x 90mm LxWxH
