Produktgruppe: Netzteile / Stromversorgung

Ferrum Audio - A new star is born

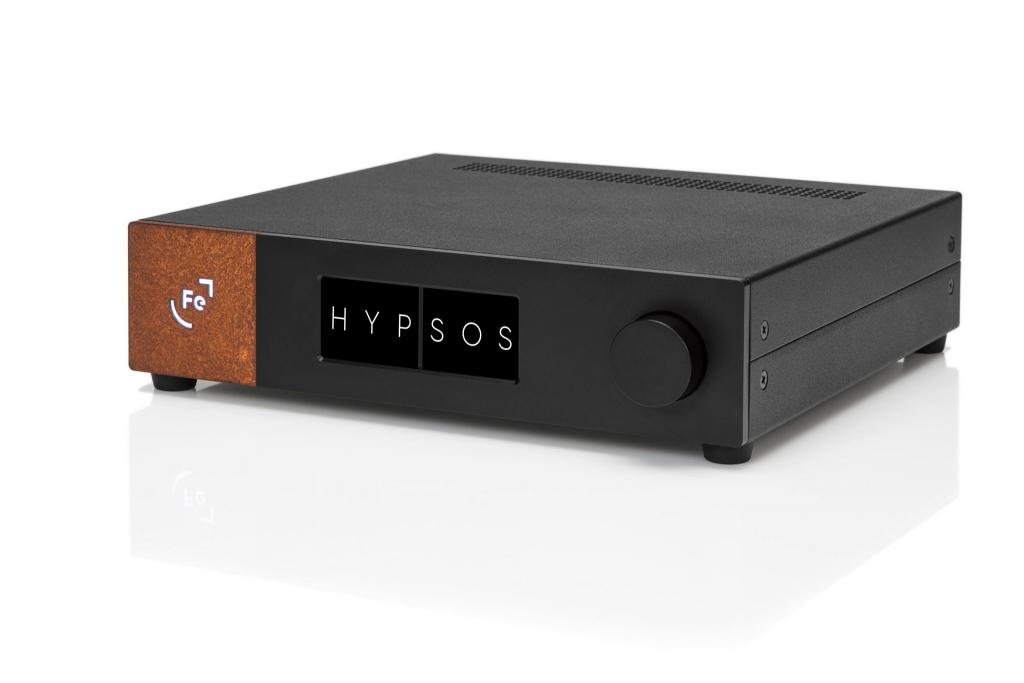

Ferrum Audio - A new star is born Ferrum Audio - Hypsos
Siehe Kurzbericht STEREO Februar 2020 + Annonce!!!

Brandneu und DIE Entdeckung im Bereich externe Netzteile!!! Siehe auch

Neue Webseite seit 12.10.2020!

Instagram unter #audition.6

Ebay Angebot unter "vip-exklusiv"

Erfragen Sie IHR Angebot! Please ask for YOUR individual offer!

HYPSOS defines a brand new category of a hifi products. It’s not a simple power supply but an audio component of its own – an equally (or even more) important part of a setup as any other. HYPSOS offers a selection of unique features and even accounts for future software improvements – the device is software controlled with as few hardware dependent elements as possible.

Power input:
110-240Vac/50-60Hz (EU/US Version)
90 – 110Vac/50-60Hz (JP Version)
IEC C14 power inlet, a fuse holder with power on/off switch plus two-stage EMI filter for low impedance load with better noise attenuation in low frequency applications

Mains cable: US/EU/UK
DC OUT cable: 5×2.5mm DC plug / 5×2.1mm DC plug
Custom cables made to order at additional cost

Output Voltage Range: 5-30 [V]
Max Continuous Output Current (for V_out below 10V): 6 [A]
Max Continuous Output Current (for V_out higher than 10V): l_out= 60[W] / DCout[V]
Max Continuous Output Power (for V_out below 10V): P_out = V_out[V] * 6[A]
Max Continuous Output Power (for V_out higher than 10V): 60W
Dimensions (without knob, feet and connectors) (W x D x H , mm / inches): 217.5 x 206.5 x 50.0 / 8.6 x 8.1 x 2.0
Net weight (kg / lb): ~ 2,8 / ~ 6.2
Primary winding fuse: IEC 5x20mm fuse, 3.15AT, 250V
Secondary winding fuse: Littelfuse 154004T, 4A
Power consumption (idle): TBD

Angebote, Neugeräte, Vorführgeräte und weitere Informationen gerne auf
Anfrage unter

Audition 6
Heiko Boss
Achalmstr. 6
72461 Albstadt

Helene-Weber-Allee 2
80637 München

Tel. 07432/23399
Mobil: 0151/12419673
