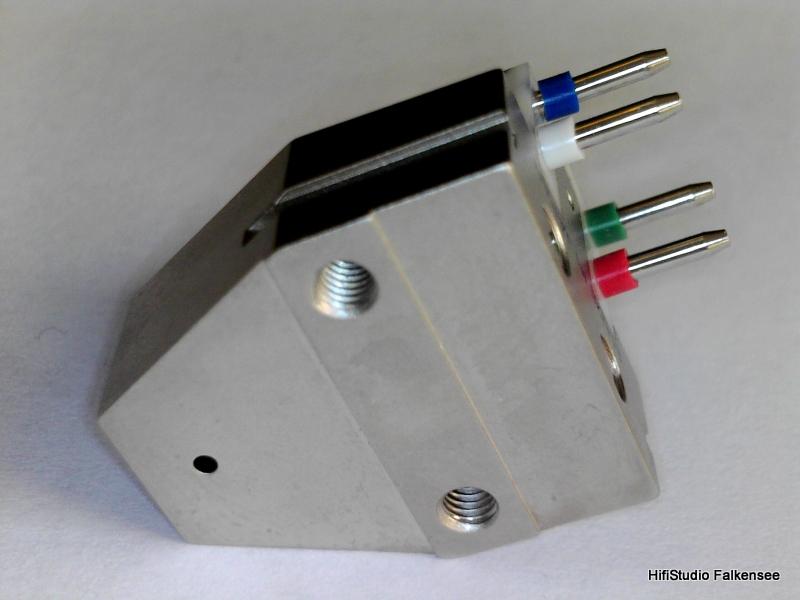

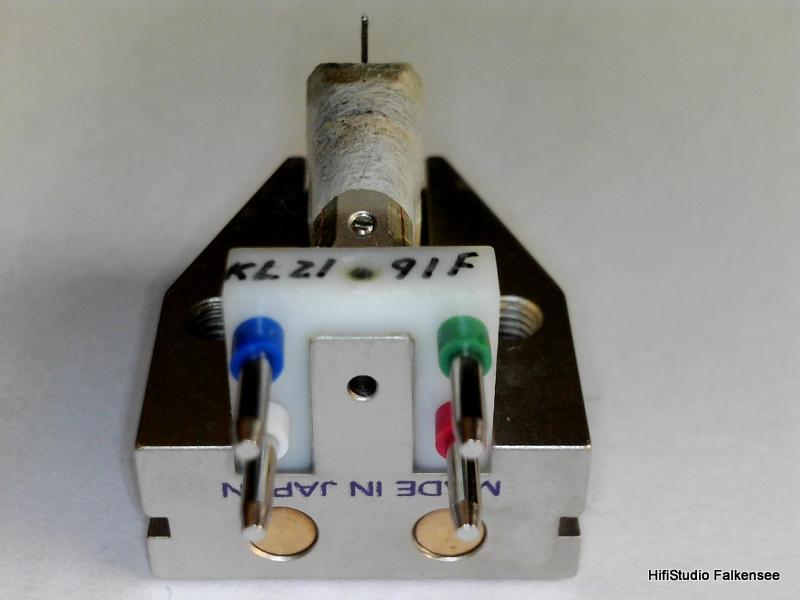

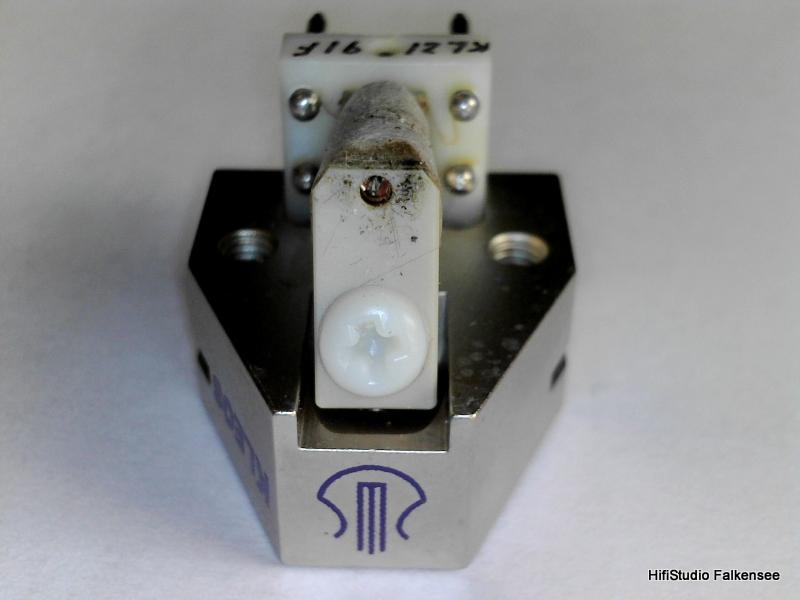

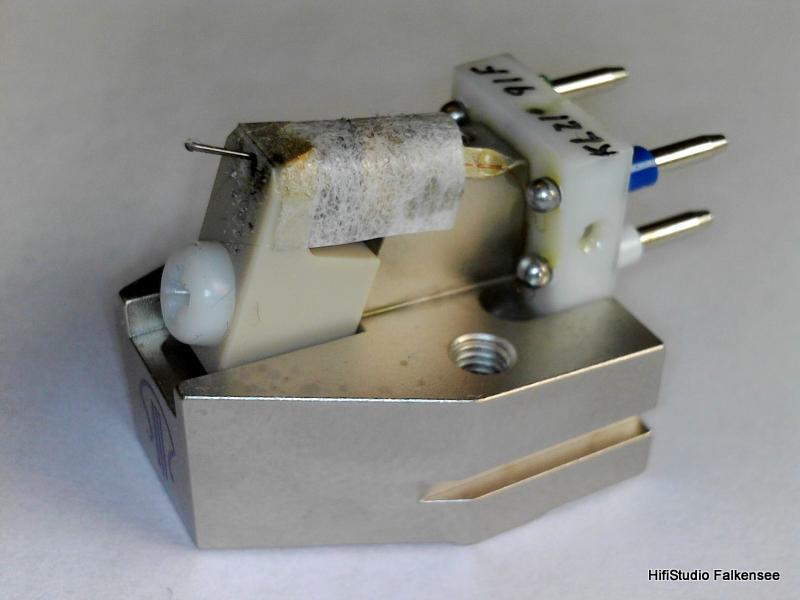

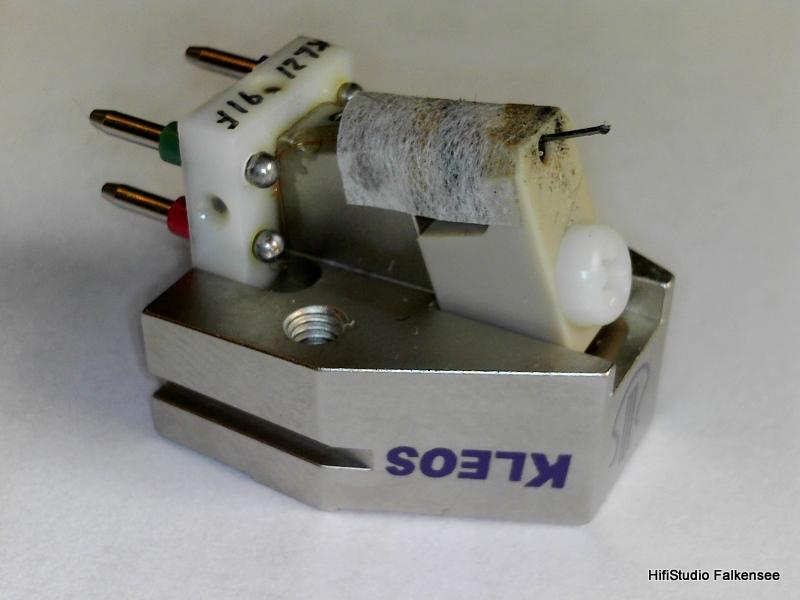

Lyra Kleos MC System
Product information
- Product category
- Pick-up MC
- Manufacturer
- Lyra
- Function
- flawless
- Age
- 2 years 8 months
- Usage state
- second-hand
- Appearance
- as good as new
- Accessories
- complete with original box
- Color
- siehe Fotos
- Original price
- 3,250.00 €
- Price
- 1,999.00 €
- More information
- http://www.lyraconnoisseur.com/Products/Products.html
Description
neuwertig, ca. 60-70 Stunden gelaufen, also gerade eingespielt,

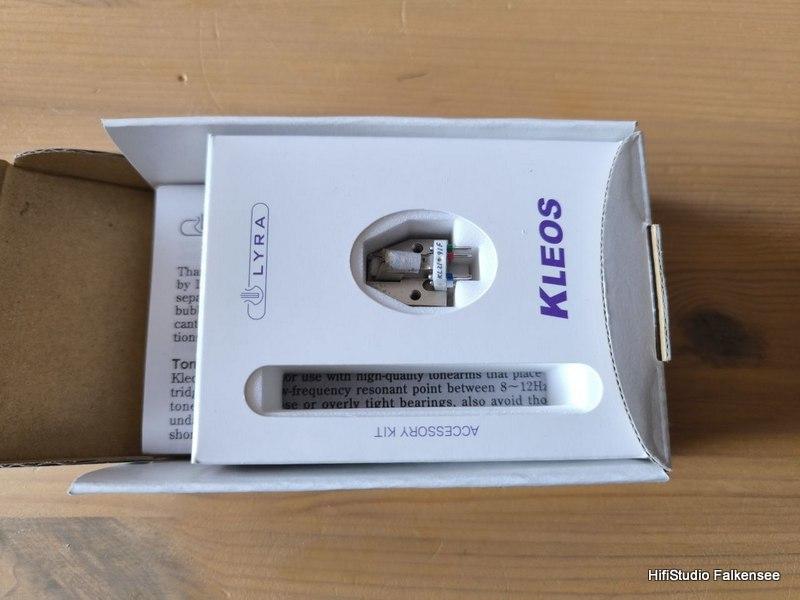

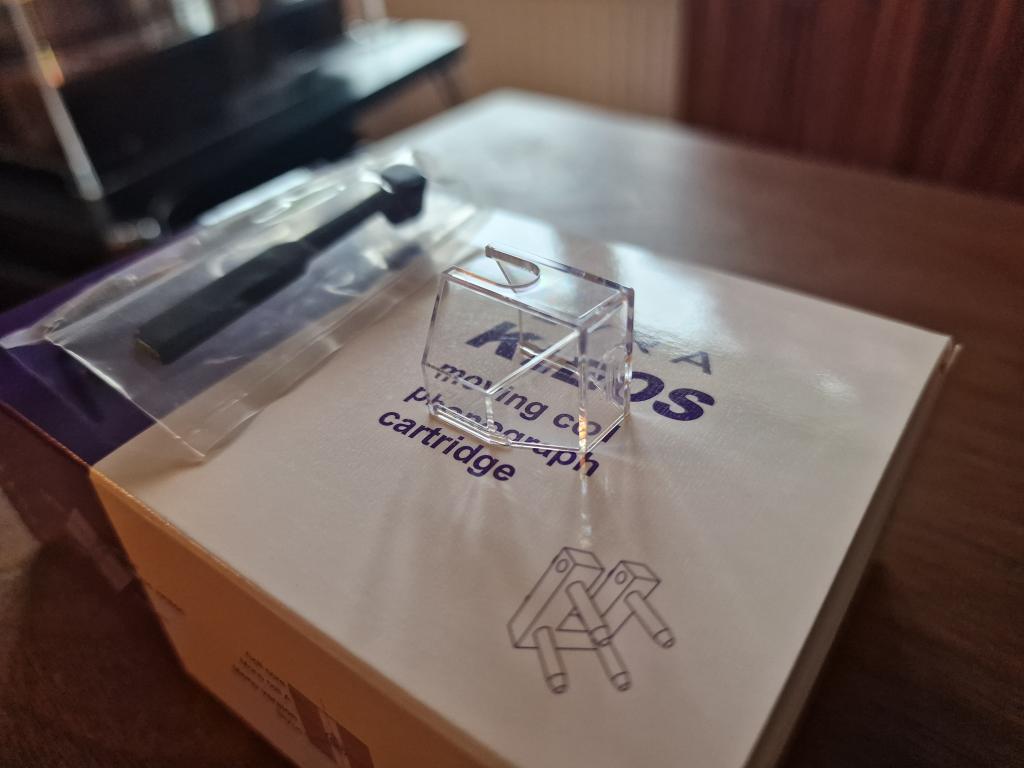

komplett mit OVP, Nadelschutz und Befestigunsset,
Technische Daten :
Specifications for LYRA KLEOS
• Designer: Jonathan Carr
• Builder: Yoshinori Mishima (final build, testing), Akiko Ishiyama (preliminary build)
• Type: Medium weight, medium compliance, low-impedance moving coil cartridge

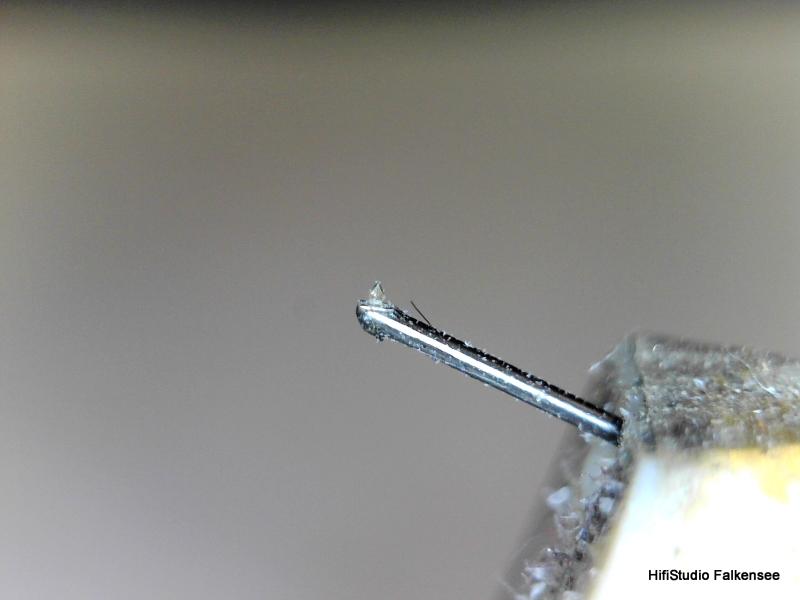

• Stylus: Lyra-designed long-footprint variable-radius line-contact nude diamond (3um x 70um), slot-mounted
• Cantilever system: Solid boron rod with short one-point wire suspension, directly mounted into cartridge body
• Coils: 2-layer deep, 6N high-purity copper, square-shaped chemically-purified high-purity iron former, 5.4ohm self-impedance, 9.0uH inductance
• Output voltage: 0.5mV@5cm/sec., zero to peak, 45 degrees (CBS test record, other test records may alter results)
• Frequency range: 10Hz ~ 50kHz
• Channel separation: 35dB or better at 1kHz
• Compliance: Approx. 12x10-6cm/dyne at 100Hz
• Vertical tracking angle: 20 degrees
• Cartridge body: One-piece machining from solid 7075 alloy billet, with reduced-surface higher-pressure headshell contact area, partially non-parallel shaping, phase-interference resonance-controlling mechanism, and body threaded directly for mounting screws
• Cartridge mounting screws: 2.6mm 0.45 pitch JIS standard
• Distance from mounting holes to stylus tip: 9.5mm
• Cartridge weight (without stylus cover): 8.8g
• Recommended tracking force: 1.65 ~ 1.75g (1.72g recommended)
• Recommended load directly into MC phono input: 95.3ohm ~ 816ohm (determine by listening, or follow detailed guidelines in user manual)
• Recommended load via step-up transformer: 5 ~ 15ohm (step-up transformer's output must be connected to 10kohm ~ 47kohm MM-level RIAA input, preferably via short, low-capacitance cable)
03322-2131655,
info@berlin-hifi.de
komplett mit OVP, Nadelschutz und Befestigunsset,
Technische Daten :
Specifications for LYRA KLEOS
• Designer: Jonathan Carr
• Builder: Yoshinori Mishima (final build, testing), Akiko Ishiyama (preliminary build)
• Type: Medium weight, medium compliance, low-impedance moving coil cartridge
• Stylus: Lyra-designed long-footprint variable-radius line-contact nude diamond (3um x 70um), slot-mounted
• Cantilever system: Solid boron rod with short one-point wire suspension, directly mounted into cartridge body
• Coils: 2-layer deep, 6N high-purity copper, square-shaped chemically-purified high-purity iron former, 5.4ohm self-impedance, 9.0uH inductance
• Output voltage: 0.5mV@5cm/sec., zero to peak, 45 degrees (CBS test record, other test records may alter results)
• Frequency range: 10Hz ~ 50kHz
• Channel separation: 35dB or better at 1kHz
• Compliance: Approx. 12x10-6cm/dyne at 100Hz
• Vertical tracking angle: 20 degrees
• Cartridge body: One-piece machining from solid 7075 alloy billet, with reduced-surface higher-pressure headshell contact area, partially non-parallel shaping, phase-interference resonance-controlling mechanism, and body threaded directly for mounting screws
• Cartridge mounting screws: 2.6mm 0.45 pitch JIS standard
• Distance from mounting holes to stylus tip: 9.5mm
• Cartridge weight (without stylus cover): 8.8g
• Recommended tracking force: 1.65 ~ 1.75g (1.72g recommended)
• Recommended load directly into MC phono input: 95.3ohm ~ 816ohm (determine by listening, or follow detailed guidelines in user manual)
• Recommended load via step-up transformer: 5 ~ 15ohm (step-up transformer's output must be connected to 10kohm ~ 47kohm MM-level RIAA input, preferably via short, low-capacitance cable)
03322-2131655,
info@berlin-hifi.de
Seller:
- Shipping from Germany (14612)
- Purchaser pays shipping costs
- EU wide shipping
Payment methods
- Cash upon collection
- Prepayment (bank transfer)
Advert ID
1393787810
Advert time period- Start:
- 02.10.2026 - 15:48
- End:
- 01.12.2026 - 15:48
8 times in 1 hour(s)
