Revox REVOX Amplifier A50 / FM-Tuner A76 / Tape Recorder A77 MK II
Product information
- Product category
- Vintage HiFi
- Manufacturer
- Revox
- Function
- flawless
- Age
- 55 years 2 months According to distributor
- Usage state
- second-hand
- Appearance
- signs of usage
- Accessories
- some accessories missing
- Color
- Braun silber schwarz
- Original price
- 5,000.00 €
- Price
- 750.00 €
- More information
- http://www.revox.de
Description

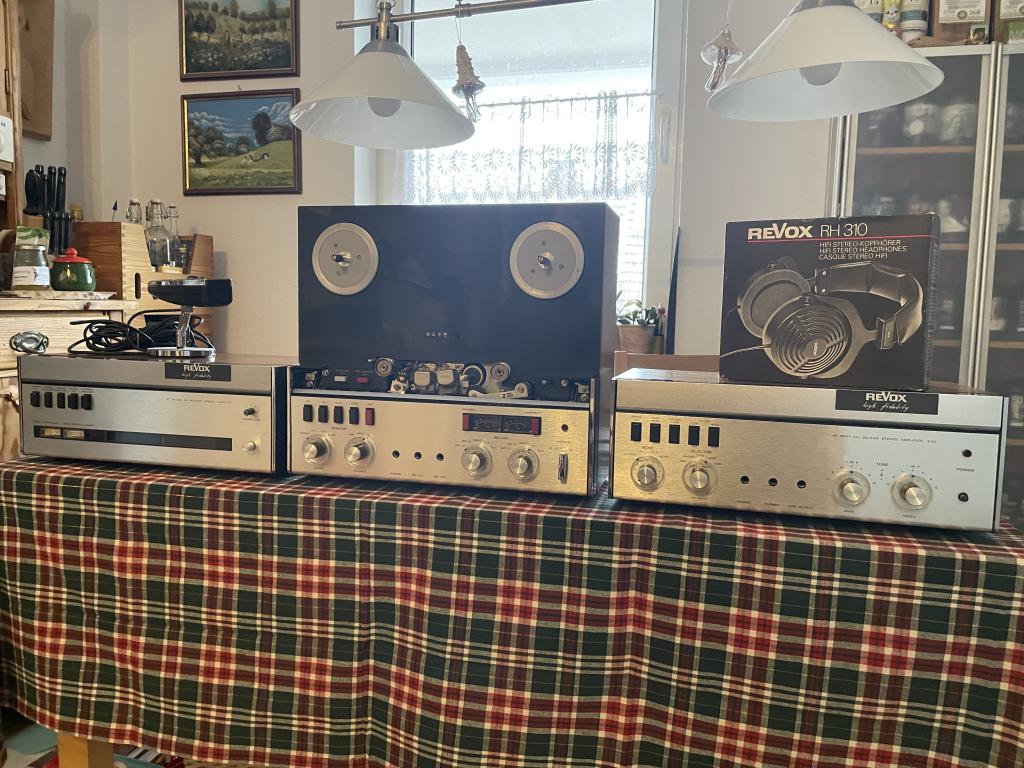

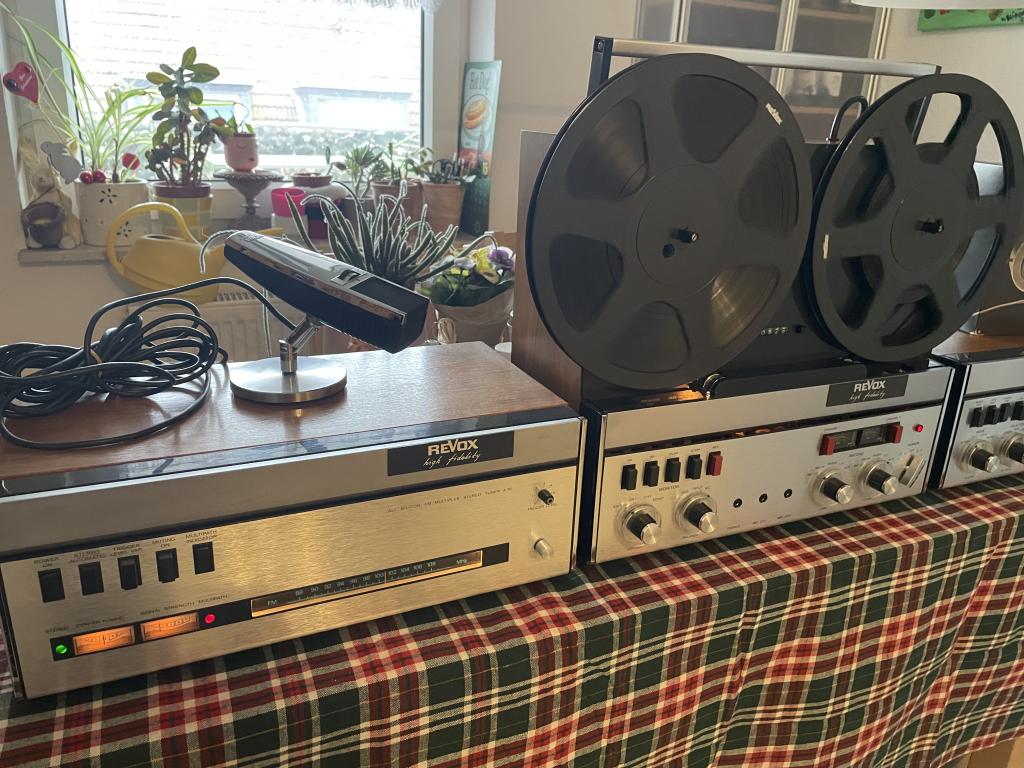

Schöne Vintage Anlage bestehend aus:

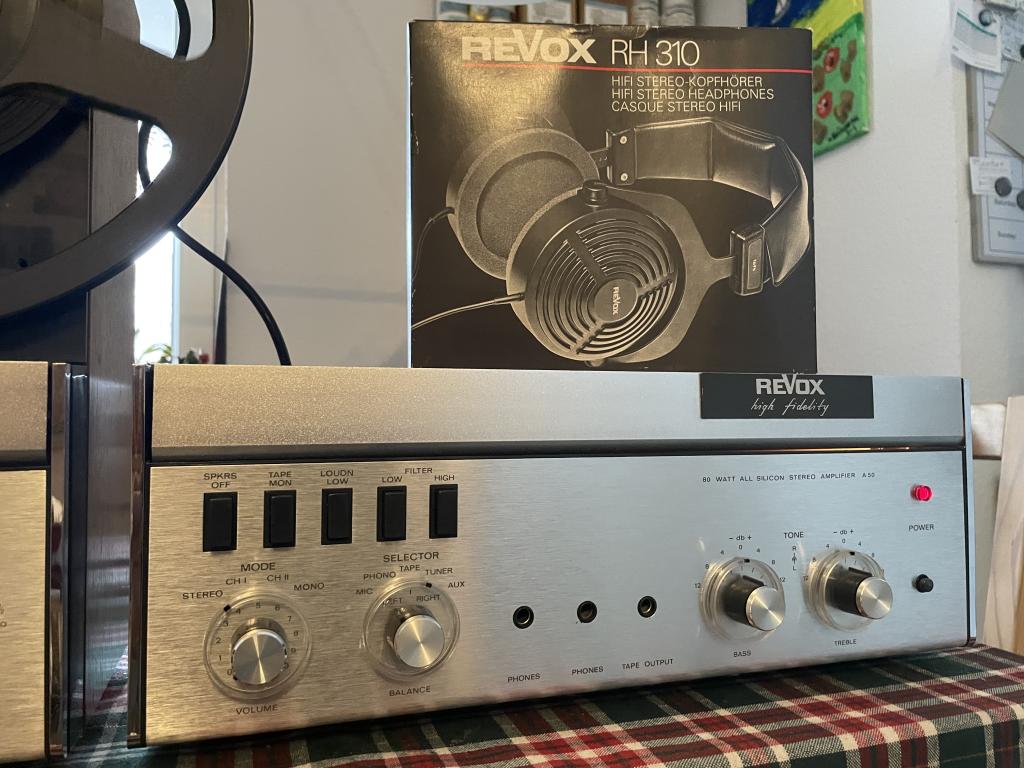

REVOX Verstärker A50 inkl. Netzkabel

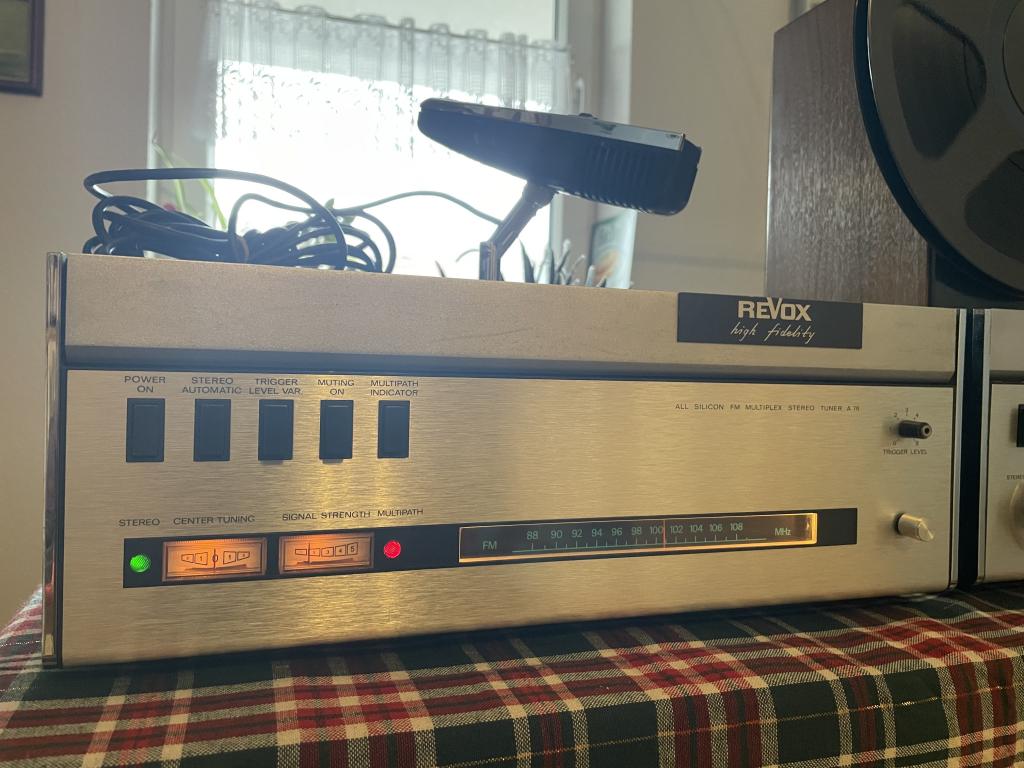

REVOX FM- Tuner A76 inkl. Netzkabel

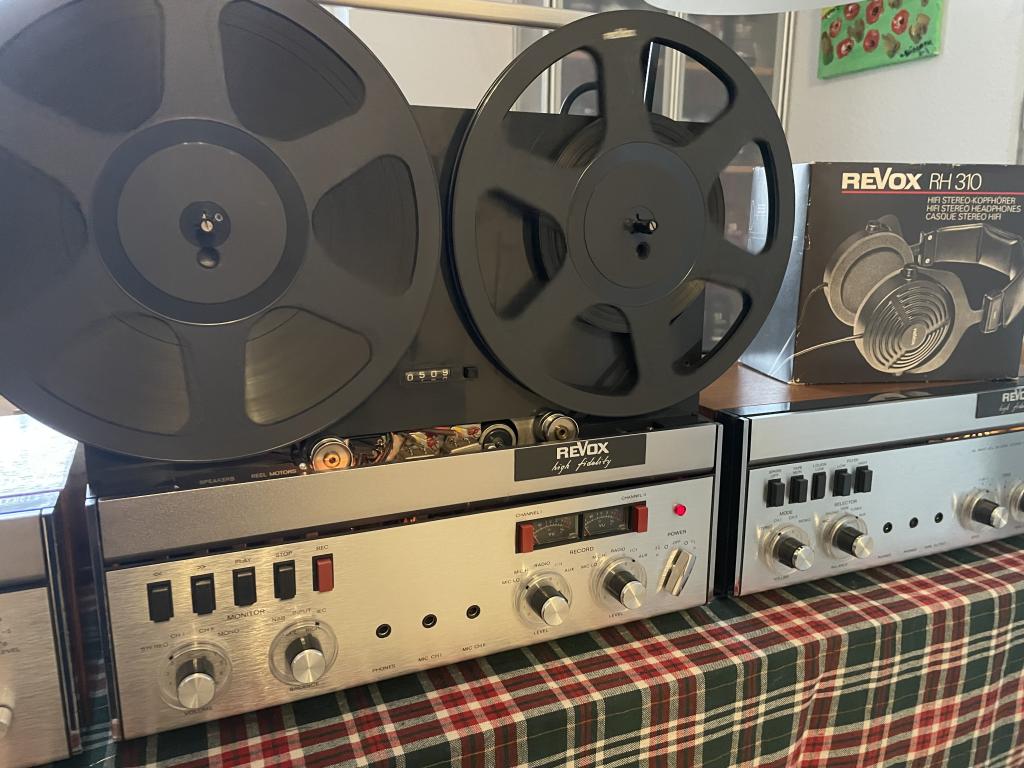

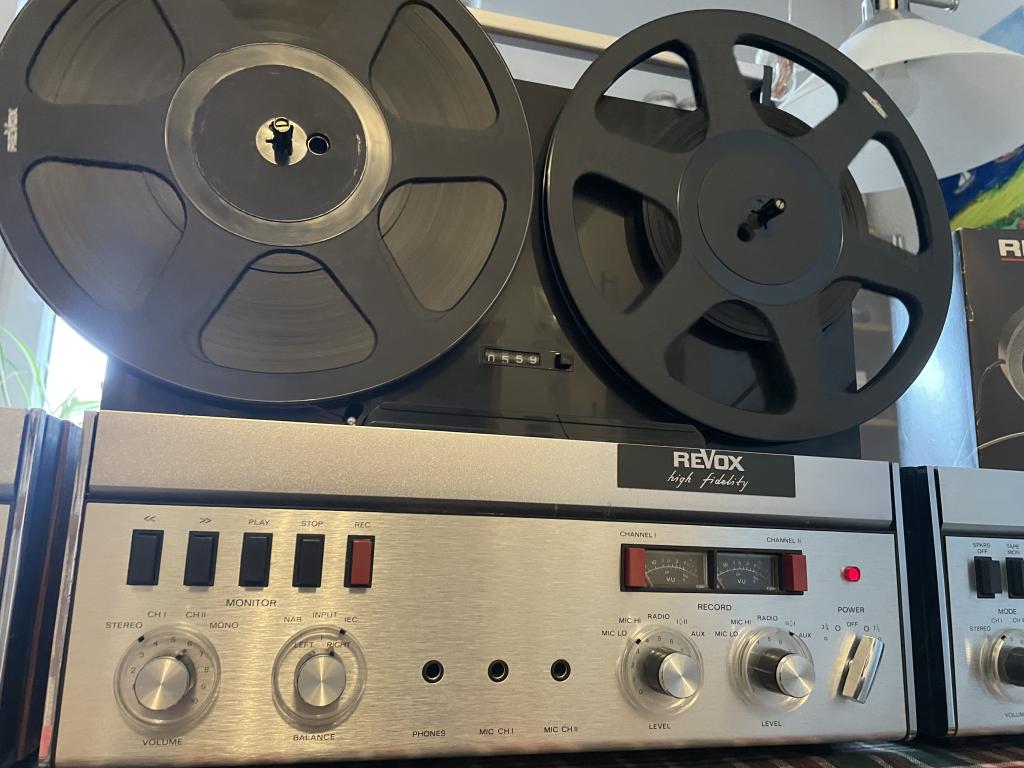

REVOX Tonbandgerät A77 inkl. Netzkabel
und 2 Revox Spulen, 1 Band
original Schaltungssammlung A77 - dreisprachig

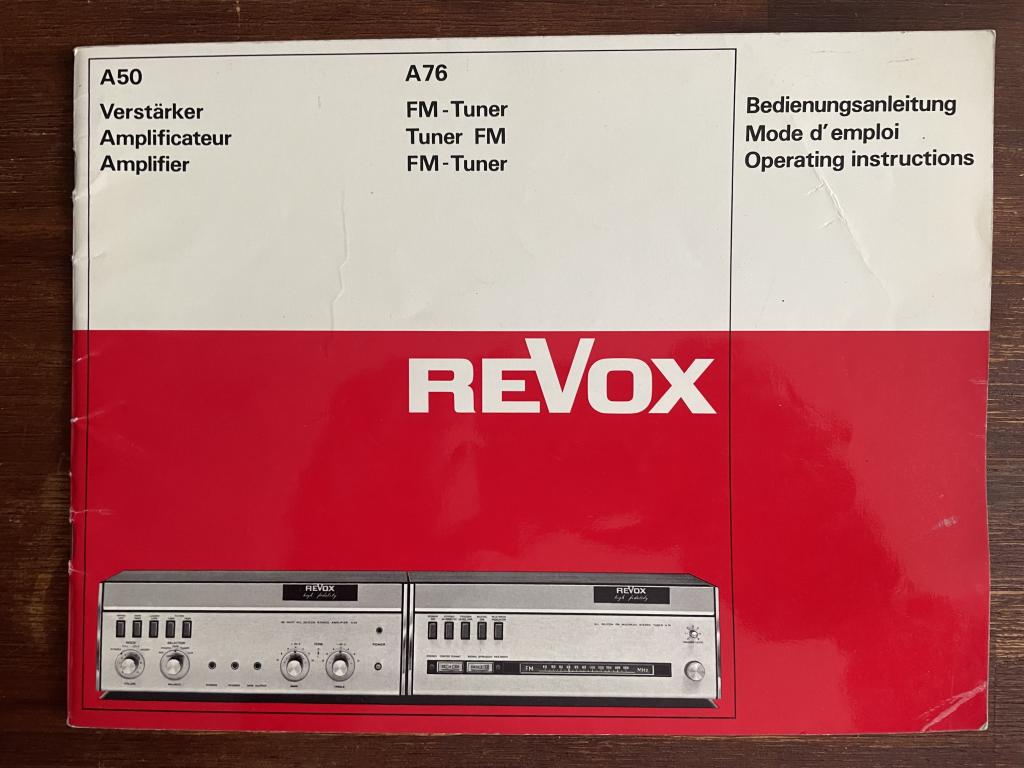

original Bedienungsanleitung A50 / A76 - dreisprachig
Technische Daten: A50
Power output: 40 watts per channel into 8Ω (stereo)
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 0.3%
Damping factor: 20
Input sensitivity: 3mV (MM), 230mV (ceramic), 100mV (line)
Signal to noise ratio: 65dB (MM), 75dB (line)
Semiconductors: 30 x transistors, 3 x rectifiers, 14 x diodes
Weight: 8.2kg
Technische Daten: A67
Type: Mono/Stereo Tuner
Tuning Bands: FM
Tuning Scale: Analogue
FM Tuning Range: 87.5 to 108 MHz
Sensitivity: 1.0uV (FM)
Signal to Noise Ratio: 70dB (FM)
Distortion: 0.2% (FM)
Frequency response: 30Hz to 15kHz (FM)
Output: 1000mV
Semiconductors: 2 x FET, 6 x IC, 41 x transistors, 27 x diodes, 2 x rectifiers
Dimensions: 413 x 146 x 226mm
Weight: 7.8kg

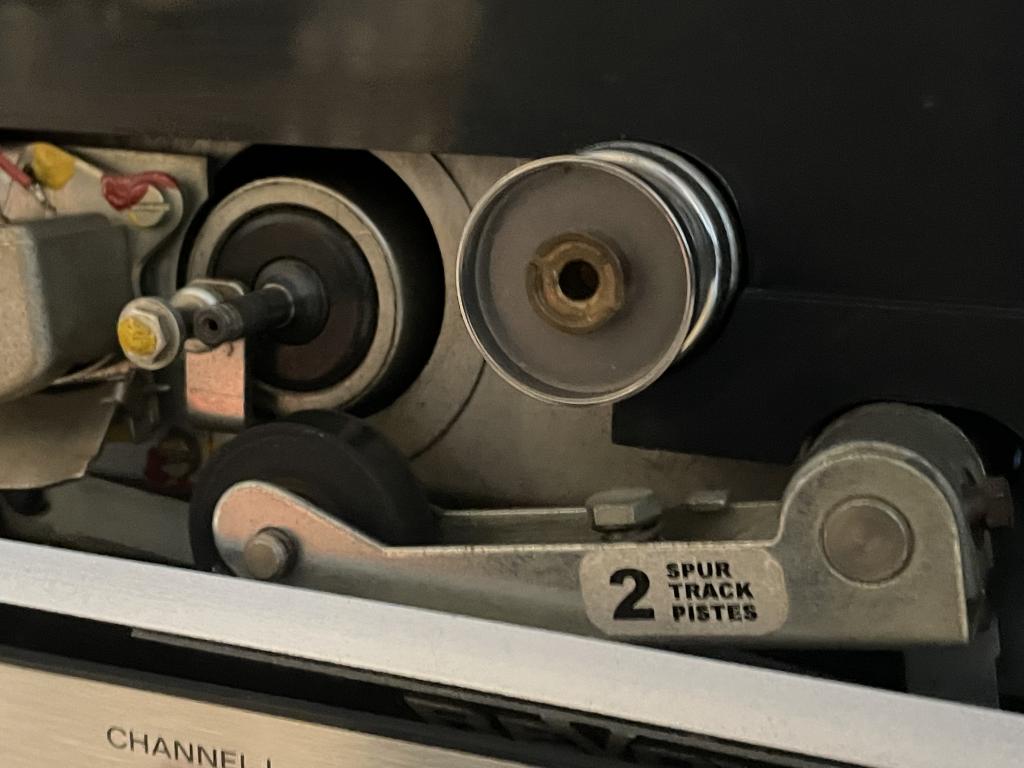

Technische Daten: A77 MK II
Motor: 2 x reel, 1 x capstan
Reel size: up to 10.5 inch reel
Equalization: NAB, IEC
Tape speeds: 3 3⁄4 7 1⁄2 ips
Wow and flutter: 0.08% (7 1⁄2 ips)
Frequency response: 30Hz to 20kHz (7 1⁄2 ips)
Signal to Noise Ratio: 62dB
Total harmonic distortion: 0.6%
Crosstalk: 45dB
Input: 35mV (line), 0.15mV (mic)
Output: 1.2V (line)
Output power: 8 watts
Semiconductors: 54 x transistors, 32 x diodes,
Dimensions: 415 x 359 x 180mm
Weight: 33lbs
Alle Geräte wurden in der Vergangenheit teilrevidiert und mit neuen 3 Pin Netzkabel
Anschlussbuchsen bestückt.
Alle Geräte wurden getestet und funktionieren einwandfrei!
Das auf den Fotos abgebildete Zubehör sowie weitere Revox- Geräte sind auf
Anfrage erhältlich.
Fragen werden gerne telefonisch und via email beantwortet.
Ich versende mit DHL.
Geräte können nach Absprache abgeholt / geliefert werden.
REVOX Verstärker A50 inkl. Netzkabel
REVOX FM- Tuner A76 inkl. Netzkabel
REVOX Tonbandgerät A77 inkl. Netzkabel
und 2 Revox Spulen, 1 Band
original Schaltungssammlung A77 - dreisprachig
original Bedienungsanleitung A50 / A76 - dreisprachig
Technische Daten: A50
Power output: 40 watts per channel into 8Ω (stereo)
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 0.3%
Damping factor: 20
Input sensitivity: 3mV (MM), 230mV (ceramic), 100mV (line)
Signal to noise ratio: 65dB (MM), 75dB (line)
Semiconductors: 30 x transistors, 3 x rectifiers, 14 x diodes
Weight: 8.2kg
Technische Daten: A67
Type: Mono/Stereo Tuner
Tuning Bands: FM
Tuning Scale: Analogue
FM Tuning Range: 87.5 to 108 MHz
Sensitivity: 1.0uV (FM)
Signal to Noise Ratio: 70dB (FM)
Distortion: 0.2% (FM)
Frequency response: 30Hz to 15kHz (FM)
Output: 1000mV
Semiconductors: 2 x FET, 6 x IC, 41 x transistors, 27 x diodes, 2 x rectifiers
Dimensions: 413 x 146 x 226mm
Weight: 7.8kg
Technische Daten: A77 MK II
Motor: 2 x reel, 1 x capstan
Reel size: up to 10.5 inch reel
Equalization: NAB, IEC
Tape speeds: 3 3⁄4 7 1⁄2 ips
Wow and flutter: 0.08% (7 1⁄2 ips)
Frequency response: 30Hz to 20kHz (7 1⁄2 ips)
Signal to Noise Ratio: 62dB
Total harmonic distortion: 0.6%
Crosstalk: 45dB
Input: 35mV (line), 0.15mV (mic)
Output: 1.2V (line)
Output power: 8 watts
Semiconductors: 54 x transistors, 32 x diodes,
Dimensions: 415 x 359 x 180mm
Weight: 33lbs
Alle Geräte wurden in der Vergangenheit teilrevidiert und mit neuen 3 Pin Netzkabel
Anschlussbuchsen bestückt.
Alle Geräte wurden getestet und funktionieren einwandfrei!
Das auf den Fotos abgebildete Zubehör sowie weitere Revox- Geräte sind auf
Anfrage erhältlich.
Fragen werden gerne telefonisch und via email beantwortet.
Ich versende mit DHL.
Geräte können nach Absprache abgeholt / geliefert werden.
