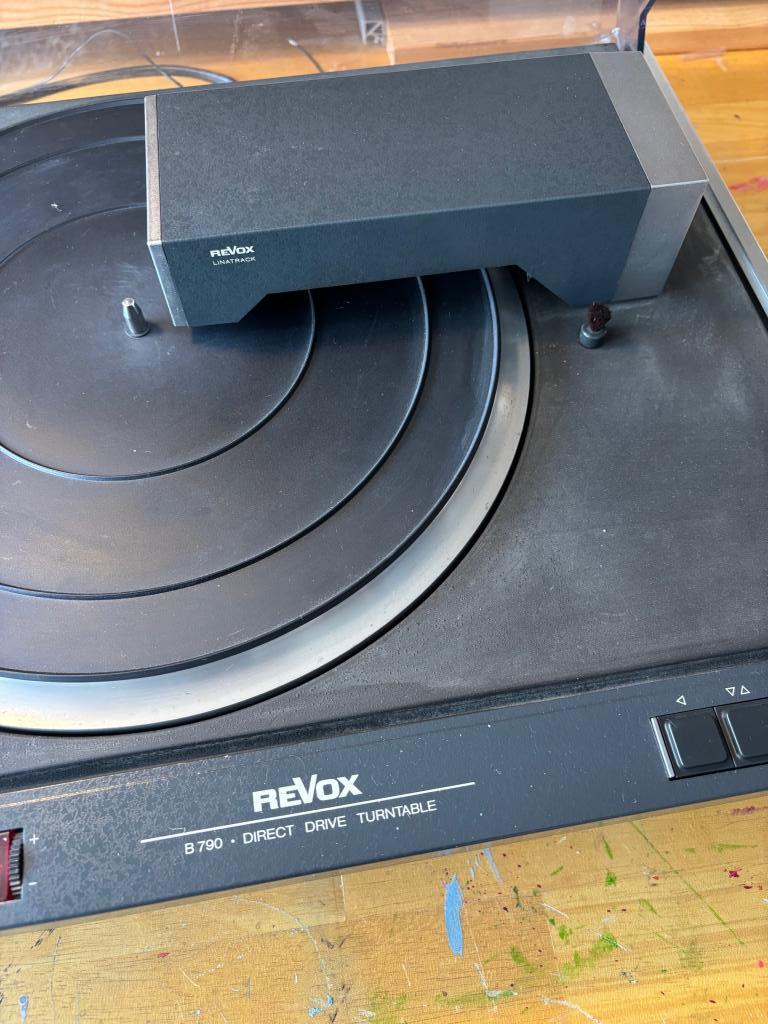

Revox Studer Revox B790 Professional Direct Drive Linear Tracking Turntable with Denon DL103 MC
Product information
- Product category
- Record Player complete
- Manufacturer
- Revox
- Function
- flawless
- Age
- 15 years By estimate
- Usage state
- second-hand
- Appearance
- little marks
- Accessories
- without accessories
- Color
- Silver
- Price
- 700.00 €
- More information
- http://www.revox.de
Description

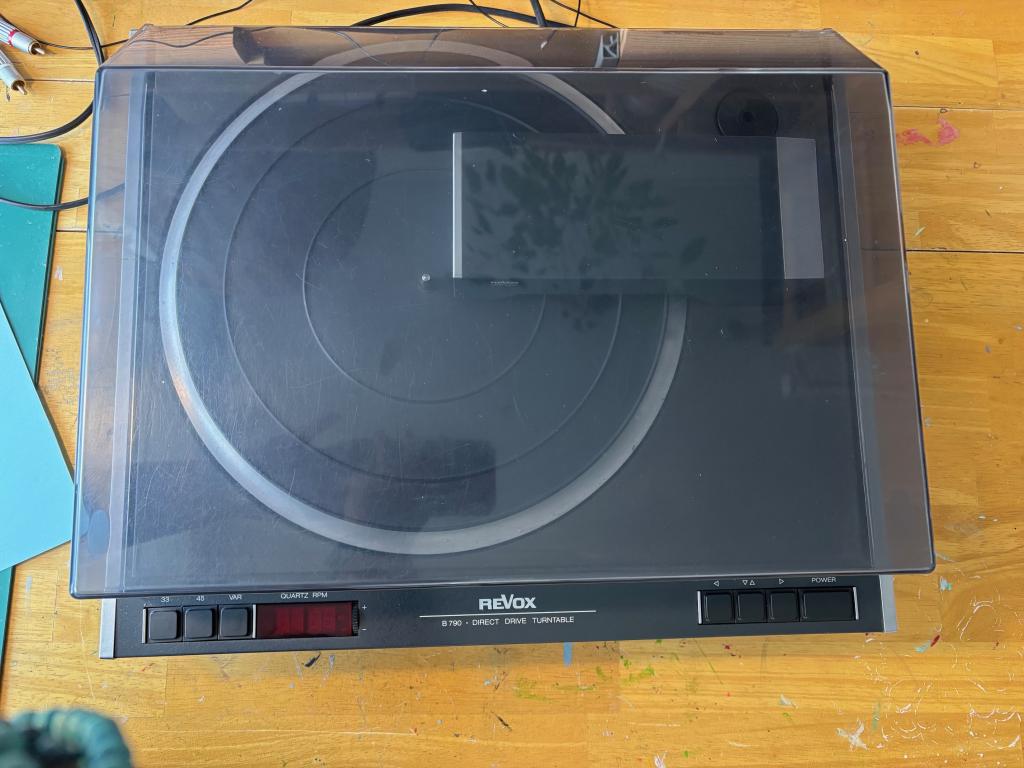

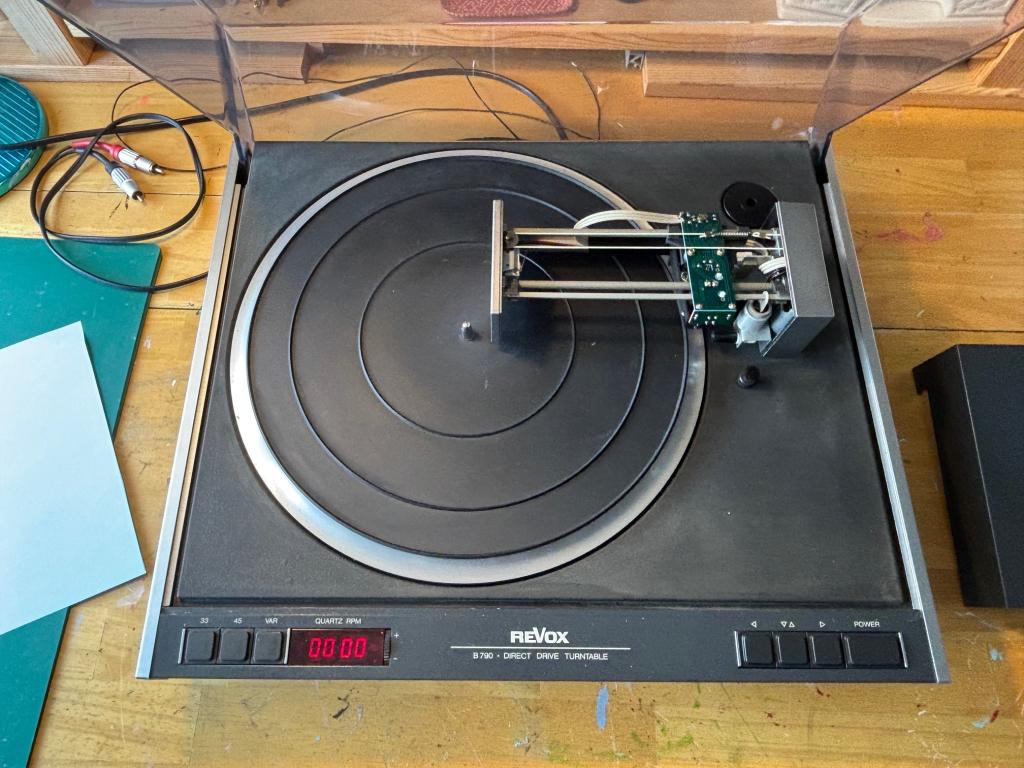

The Revox B790 is a record player with tangential tonearm, it was introduced in 1977.
Tangential tonearms have the advantage that the pickup system moves parallel to the record groove. This minimizes skating force, eliminating the need for complex anti-skating measures. Tracking occurs tangentially, just like cutting a record!

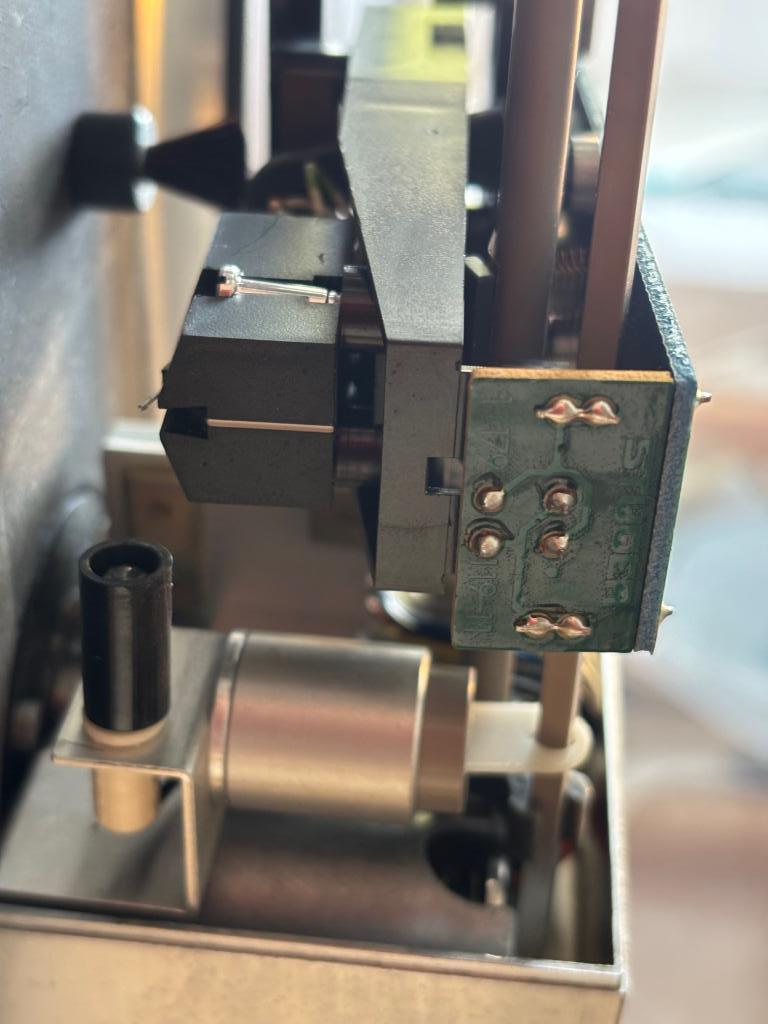

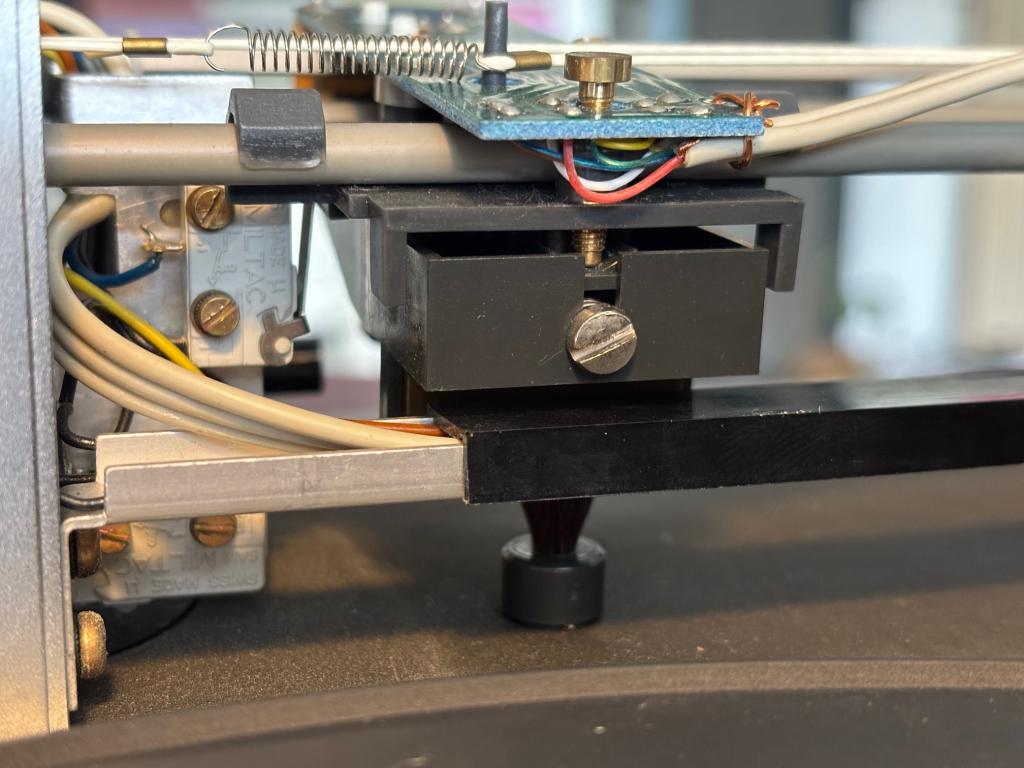

The ultra-short "Linatrack" tonearm is 4 cm long and weighs approximately 40 grams. Thanks to the low tonearm mass, the high tracking capability is maintained even with warped records.

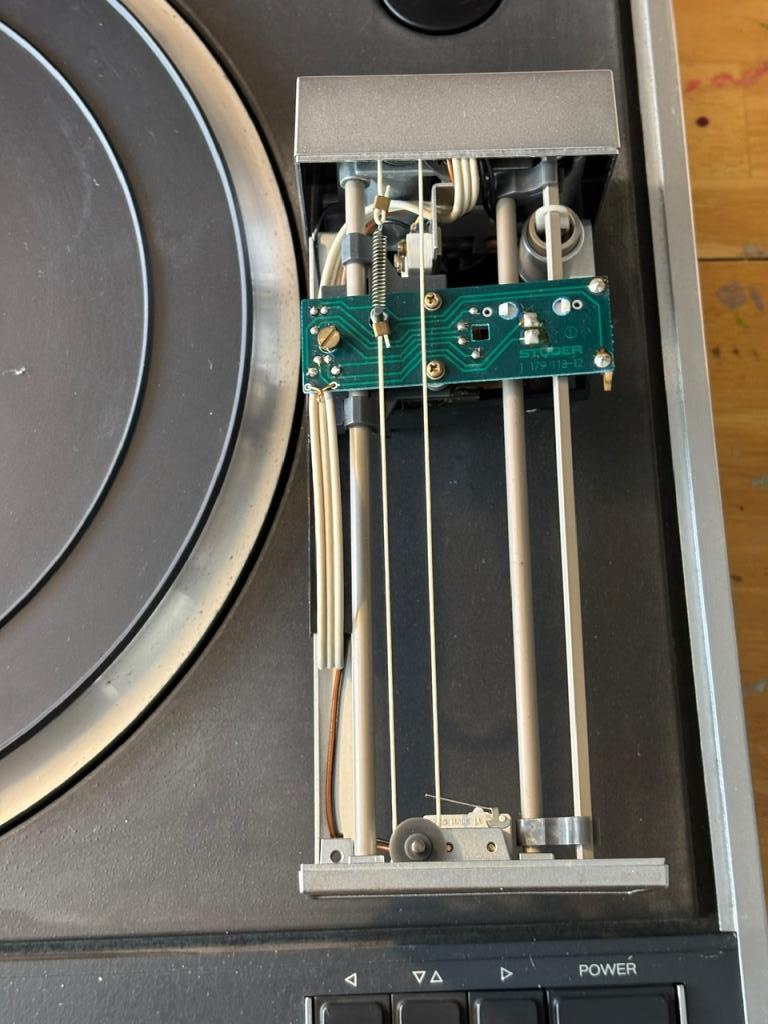

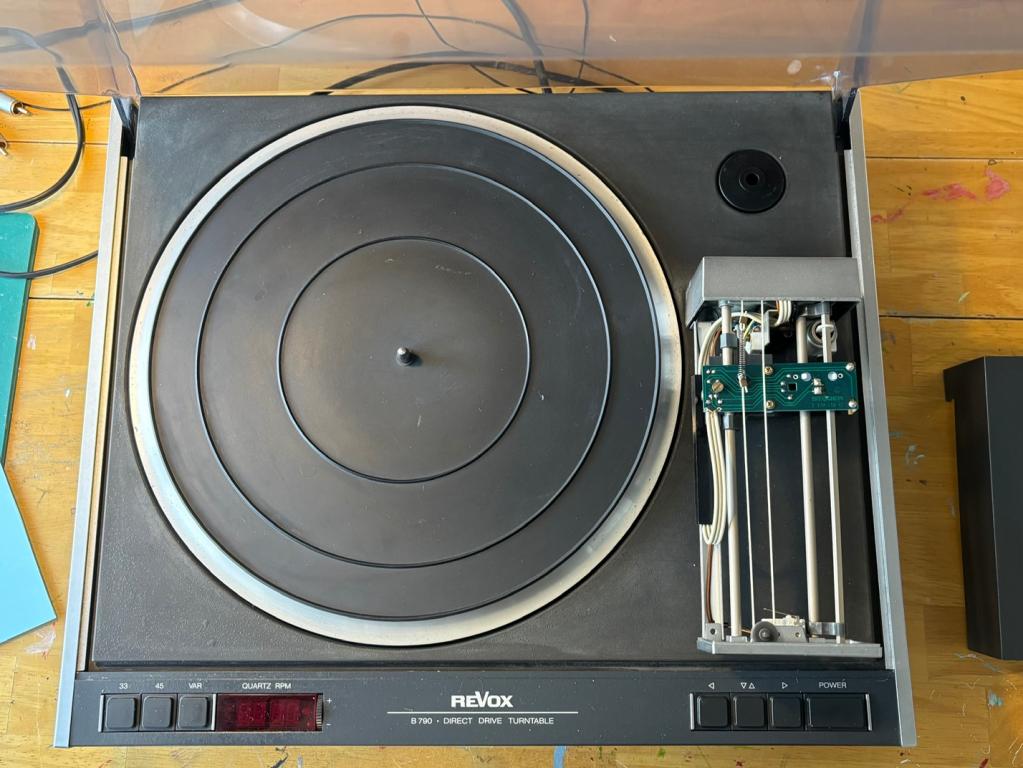

The Revox Linatrack tonearm is optoelectronically controlled. Tracking is achieved via an IR transmitting diode (LED 1) and two receiving diodes (DP 1 and DP 2). A slit aperture, permanently attached to the tonearm, ensures that one of the two receiving diodes is illuminated more than the other when deflected. The downstream electronics control a small DC motor, which balances the illumination of the two receiving diodes and moves the tonearm accordingly.
TECHNICAL DATA :
Drive: quartz-controlled direct drive
Tonearm: Tangential tonearm with servo-electronic adjustment
Tonearm lowering: electronically controlled, pneumatically damped

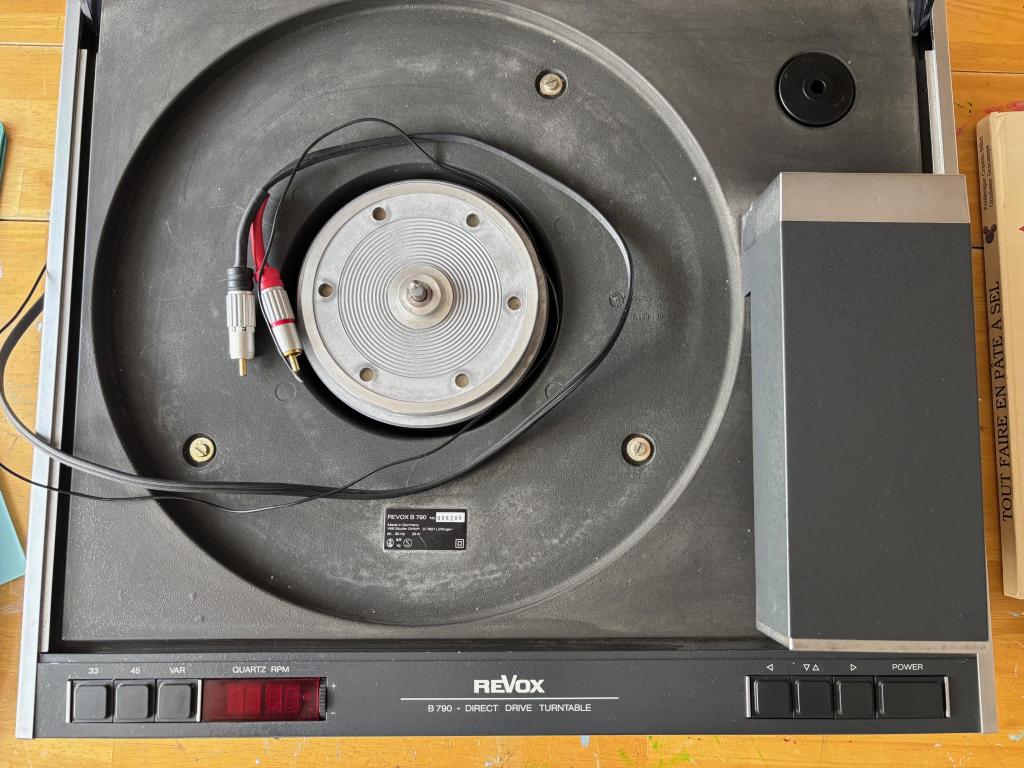

Turntable : 313mm diameter, 1.1kg weight, 33.33 and 45.00 rpm speed
Skating compensation: none, not required for tangential systems
Tracking force: 5mN to 20mN

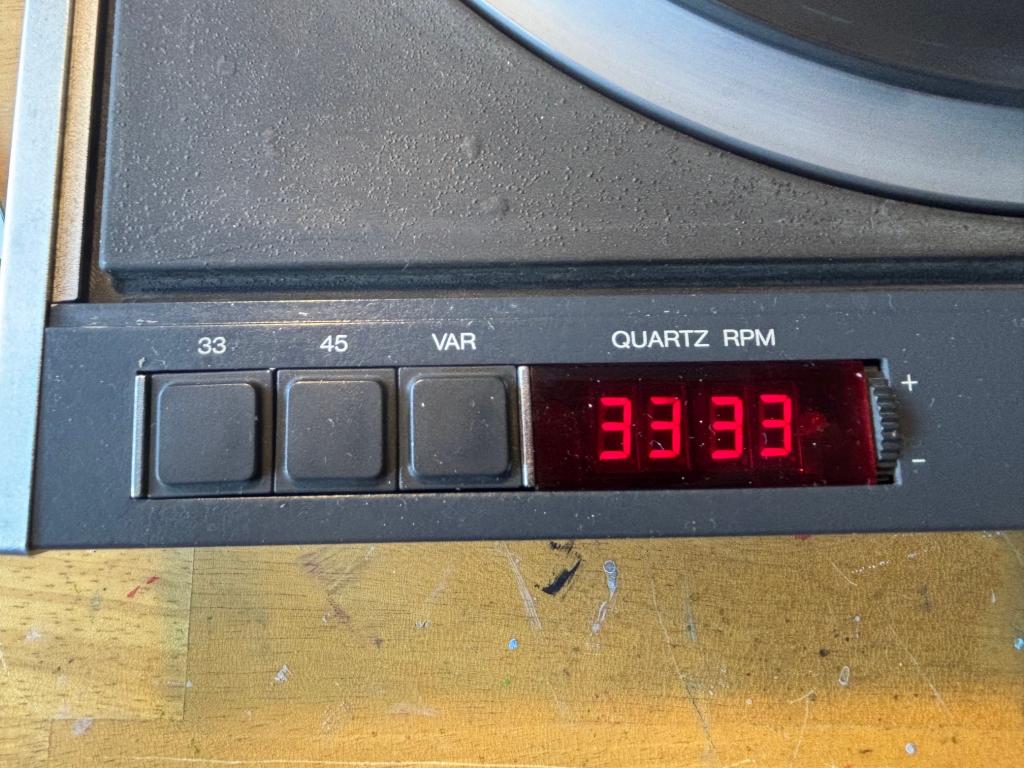

Speed control: 4-digit LED display, quartz-precise
Pitch fluctuation: rated better than 0.05%, linear better than 0.1%
Signal-to-noise ratio: 65dB (measured with VMS20E)
Rumble noise level: 48dB
Rumble-to-noise ratio: better than 51dB with high-pass filter 20Hz
Rumble-to-noise ratio: better than 68dB
Transmission level for rumble guarantee: -3dB at 20Hz
THIS UNIT COMES WITH A DENON DL 103 MC CARTRIDGE.
Tangential tonearms have the advantage that the pickup system moves parallel to the record groove. This minimizes skating force, eliminating the need for complex anti-skating measures. Tracking occurs tangentially, just like cutting a record!
The ultra-short "Linatrack" tonearm is 4 cm long and weighs approximately 40 grams. Thanks to the low tonearm mass, the high tracking capability is maintained even with warped records.
The Revox Linatrack tonearm is optoelectronically controlled. Tracking is achieved via an IR transmitting diode (LED 1) and two receiving diodes (DP 1 and DP 2). A slit aperture, permanently attached to the tonearm, ensures that one of the two receiving diodes is illuminated more than the other when deflected. The downstream electronics control a small DC motor, which balances the illumination of the two receiving diodes and moves the tonearm accordingly.
TECHNICAL DATA :
Drive: quartz-controlled direct drive
Tonearm: Tangential tonearm with servo-electronic adjustment
Tonearm lowering: electronically controlled, pneumatically damped
Turntable : 313mm diameter, 1.1kg weight, 33.33 and 45.00 rpm speed
Skating compensation: none, not required for tangential systems
Tracking force: 5mN to 20mN
Speed control: 4-digit LED display, quartz-precise
Pitch fluctuation: rated better than 0.05%, linear better than 0.1%
Signal-to-noise ratio: 65dB (measured with VMS20E)
Rumble noise level: 48dB
Rumble-to-noise ratio: better than 51dB with high-pass filter 20Hz
Rumble-to-noise ratio: better than 68dB
Transmission level for rumble guarantee: -3dB at 20Hz
THIS UNIT COMES WITH A DENON DL 103 MC CARTRIDGE.
