Trinnov Altitude AL-16 AV Preamplifier 2.0

Umbau - Abverkauf!
Neugerät Altitude 16 - ausgepackt und updates gemacht ist er zur Ansicht ausgestellt!

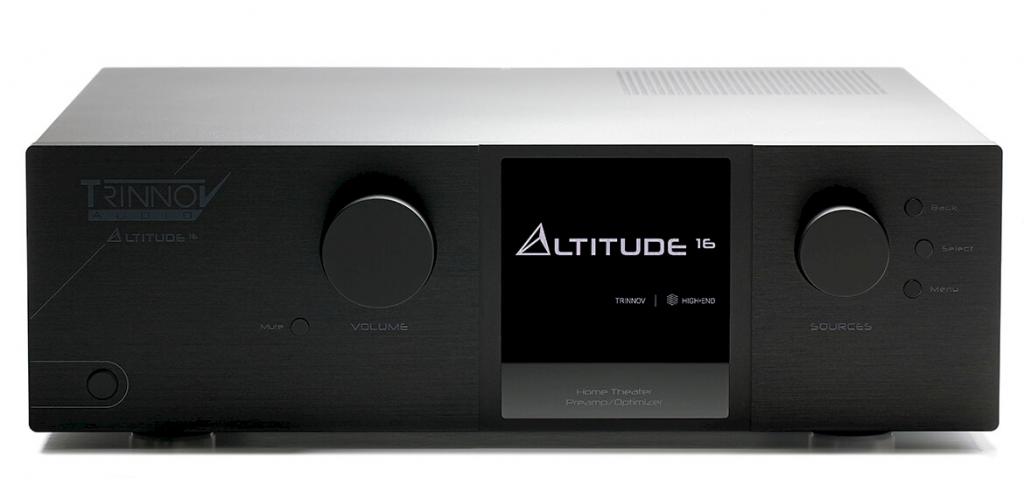

Altitude 16
No compromise!
The groundbreaking Altitude32 processor set the bar high -- and we didn’t lower it for the Altitude16. Delivering the same processing capabilities and sound quality as the Altitude32 processor, the Altitude16 makes Trinnov’s best-in-class performance accessible to a wider audience who's immersive audio system requirements will not exceed 20 channels.

Equipped with Dolby Atmos, Auro-3D, and DTS:X Pro immersive audio decoders, the Altitude16 renders up to 20 discrete channels of information, natively processes high-resolution 24 bit / 96K audio, enables up to four-way active crossovers and presents no limitations in terms of Atmos and DTS:X channel assignments or subwoofer outputs.


Object Based Decoding

Dolby Atmos® Native Decoding & Upmix: Up to 20 discrete channels
Auro-3D® Native Decoding & Up-mix (Auromatic): Up to 13.1
DTS:X® Pro: Up to 20 discrete channels
Speaker Layouts support: All
IMAX Enhanced: Yes

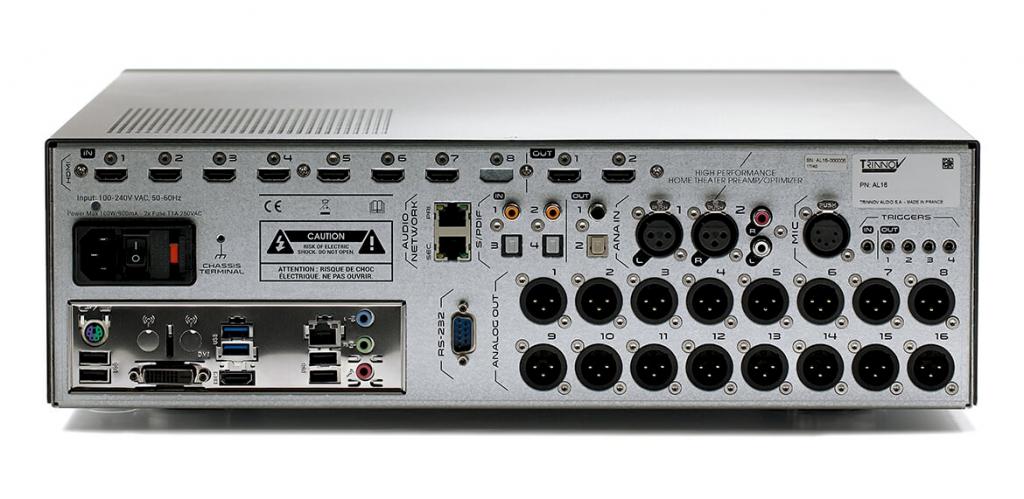

HDMI Connectivity

Output 1: HDMI 2.1 / HDCP 2.3
Output 2: HDMI 2.1 / HDCP 2.3
Inputs: 8
HDR Support: HDR10, HDR10+, HLG, and Dolby Vision
Maximum Resolution: 4K 120Hz/8K 60Hz
Maximum Bandwidth: 40Gbps on all inputs and outputs
Frame rates supported: 4K 24/25/30/48/60/100/120, 8K 24/25/30/48/60
ARC / eARC: Available on Output 1
OSD: Main information displayed on-screen

Digital Audio Connectivity

S/PDIF Inputs: x4 (2 optical, 2 coaxial)
S/PDIF Outputs: x2 (1 optical, 1 coaxial)
+4 Outputs: By combining Analog and S/PDIF outputs
Audio Network: Dual ports (for future use)

Analogue Audio Connectivity

Microphone input: 1x 5 Pin XLR for 3D Microphone
Balanced inputs: 1x Stereo XLR
Unbalanced inputs: 1x Stereo RCA
Balanced outputs: 16x XLR
Input Impedance: 20k Ohms / 10k Ohms

Audio Processing

Data precision: 64 bits, floating point
Max Sampling Rate: Native, up to 96kHz

Hardware

Processor: Intel multi core hyper threaded
ADC Resolution / Sampling Rate: 24 bits/96 kHz
DAC Resolution / Sampling Rate: 24 bits/192 kHz
A/D Signal-To-Noise Ratio: 115 dB (A-Weighted)
D/A Signal-To-Noise Ratio: 115 dB (A-Weighted)
Reference Level: +18dBu @ 0dBFS (Balanced)
Clock / Jitter: attenuation > 50 dB above 100Hz
Cooling system: Custom heat sinks + additional silent fans
Safety Components: AntiPop relays on each output

Power Supply

Power requirement: 100 - 240v (auto selecting)
Power consumption: 76W Max
Thermal conversion: 260 BTU/h Max
Mains fuse: 2x 1A slow blow
Internal PSUs: Separated supplies for Audio and Processing

Weight & Dimensions

Dimensions (W x H x D) mm: 438 x 139 x 430
Dimensions (W x H x D) inches: 17 1/4" x 5 1/2" x 17 15/16"
Shipping dimensions (L x H x P) cm: 74 x 59 x 30
Weight: 11.30kg / 24.9 lbs
Shipping weight / volume: 18.2kg / 0.131 M3
Rackmounting: 3U - Rack Ears Included

Warranty

Standard Warranty: 5 year
Transferable: Yes
