Allnic Audio Allnic audio H7000V

Produktdetails

Produktgruppe
Phonoverstärker
Hersteller
Allnic Audio
Funktion
einwandfrei
Alter
6 Jahre Nach Schätzung
Gebrauchszustand
gebraucht
Optik
neuwertig
Zubehör
komplett mit OVP
Farbe
black
Neupreis
16.500,00 €
Preis
9.200,00 €
Weitere Informationen
http://www.allnicaudio.com/

Beschreibung

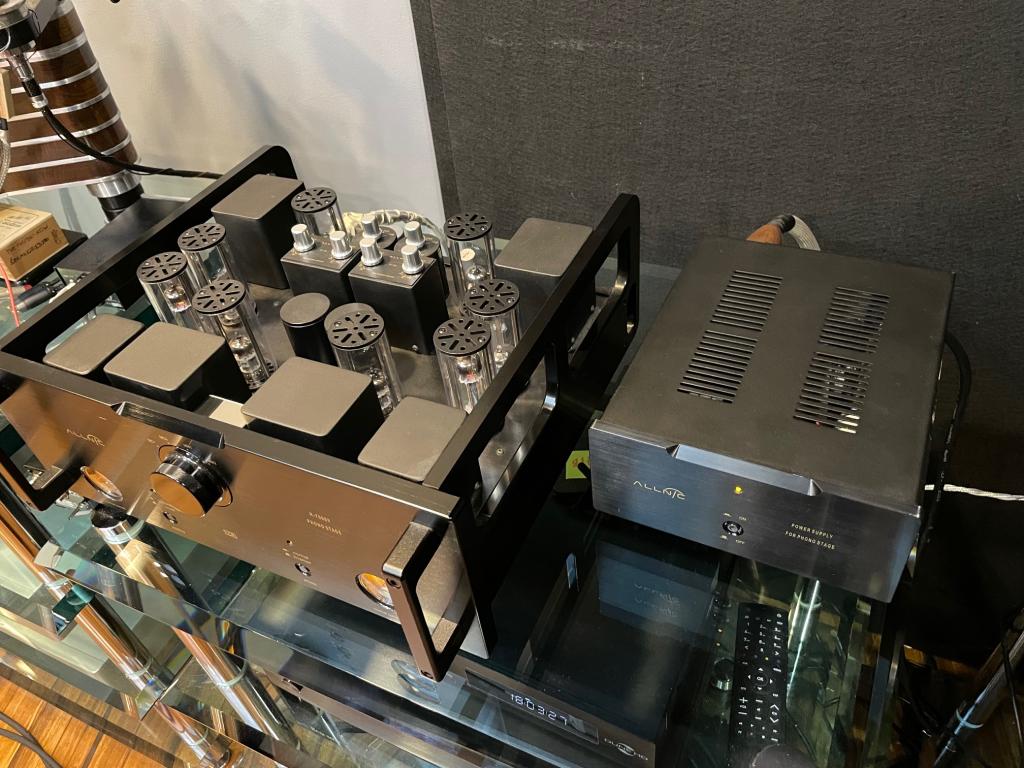

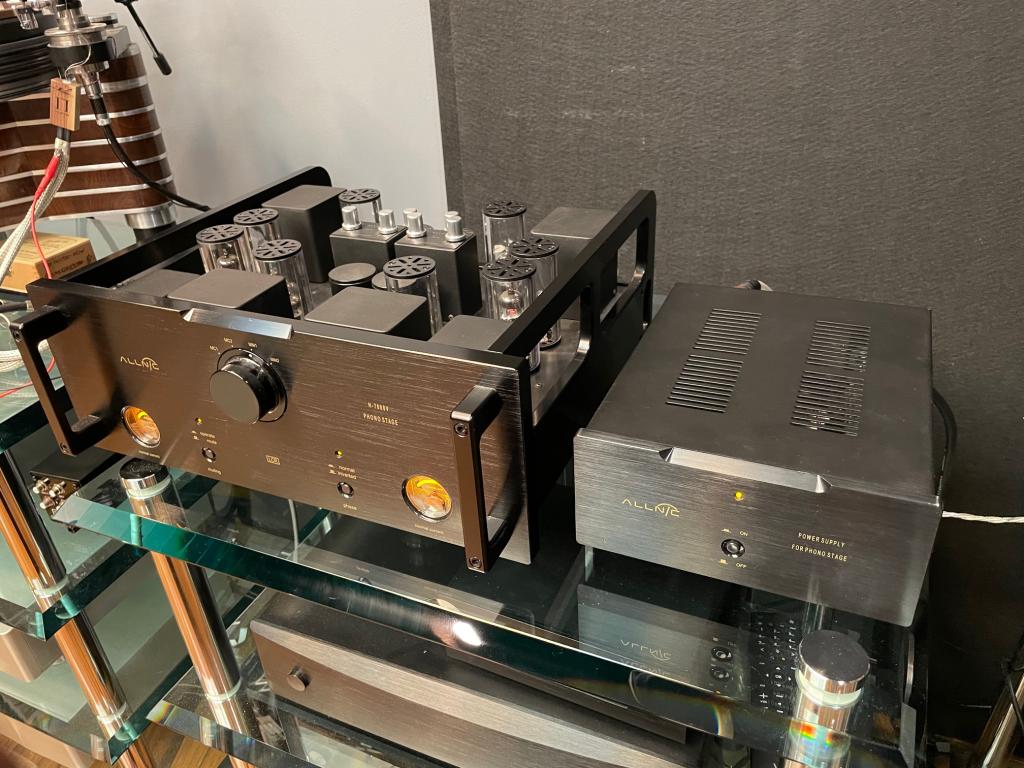

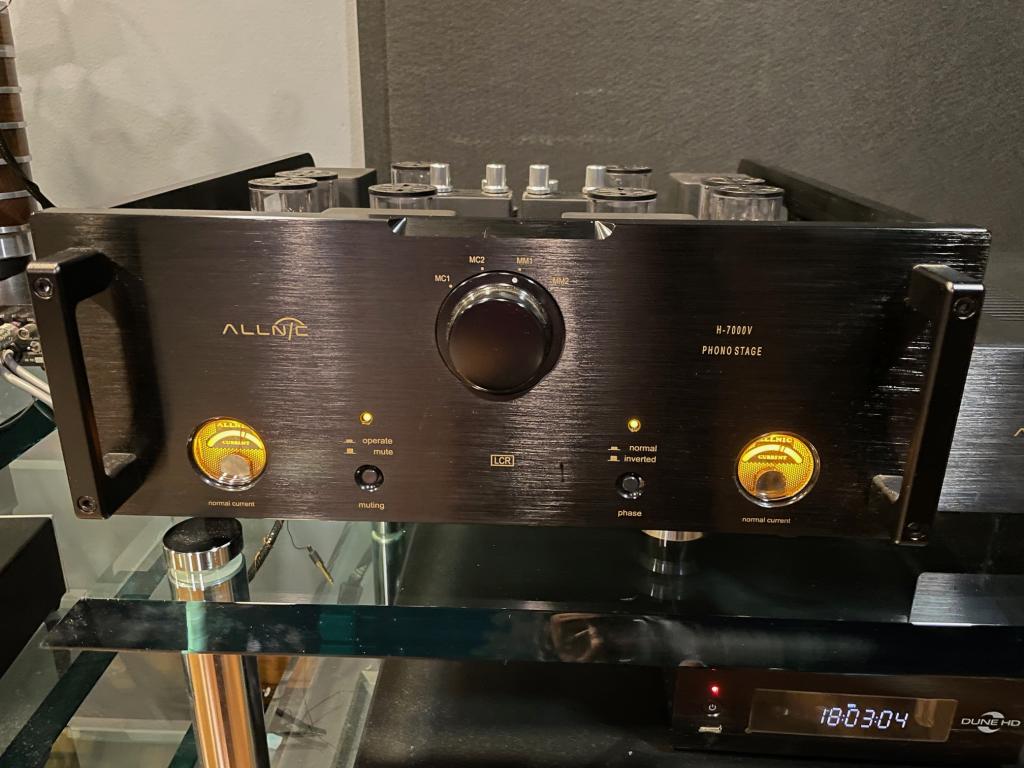

I am selling an Allnic Audio H7000V phono preamplifier in black in excellent condition. It is like new with no scratches and original box.
The H-7000 comes standard with dual transformer MC step-up inputs, plus two MM direct inputs. Also, as a world premier, three input modes are available upon request, fulfilling a long-time wish of vinyl lovers. The H-7000V can include a head-amplifier (pre-pre or electronic step up) MC input, a traditional step-up transformer MC input, and two MM direct inputs (you can, of course, connect your favorite step ups also). A variable impedance control for the MC inputs is included on the standard version with dual transformer step up MC inputs. The version with the electronic step-up has the transformer step-up MC input fixed at 47K ohms. The electronic step-up head-amp’s impedance is variable using supplied plug-in resistors.
LCR Equalization – Contrary to the traditional CR or NFB equalization of high impedance (one hundred kilo ohms), Allnic’s LCR equalization uses 600 ohms constant impedance, making an enormous improvement to frequency range and level stability.
In addition, the H-7000:
is all transformer coupled – no coupling capacitors
is a zero negative feedback design with only two active gain stages
is equipped with a pure vacuum tube, high speed, automatic voltage regulation circuit for both channels, and a power supply unit separate from the phono stage itself, for superior signal to noise ratio
has very high quality, wide frequency in-house MC step-up transformers
has pure balanced operation
operates in pure class A
uses 4 pentode E810F (or 7788) tubes in triode mode (please see its wonderful three factors, μ= 57, gm = 50,000 micro mho, and lowest resistance around 1 K ohms) for primary signal amplification. This tremendously beautiful tube drives our large, 100% Permalloy output transformer at 20mA of high current
has multiple rectifier tube options for the outboard power supply

Allnic H-7000 Phono Preamp
Technical Specifications:

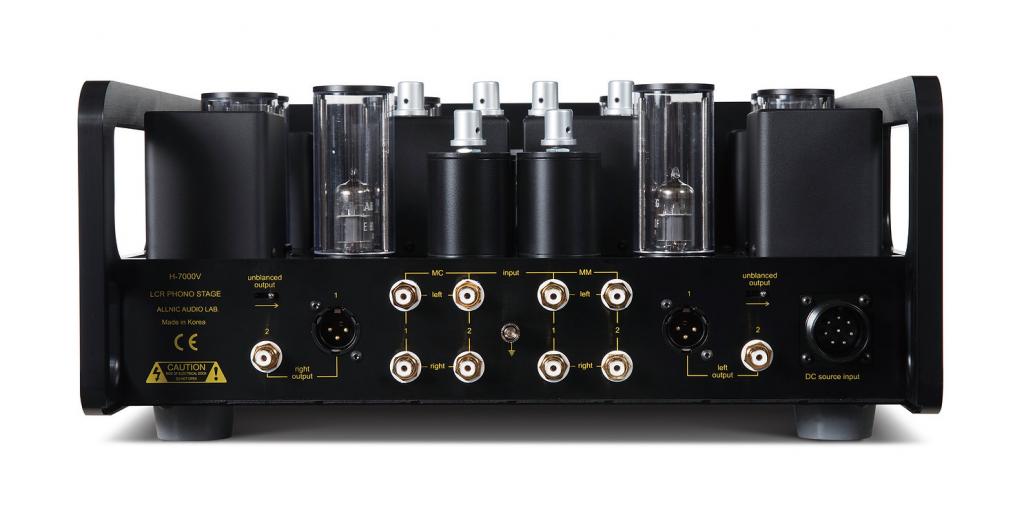

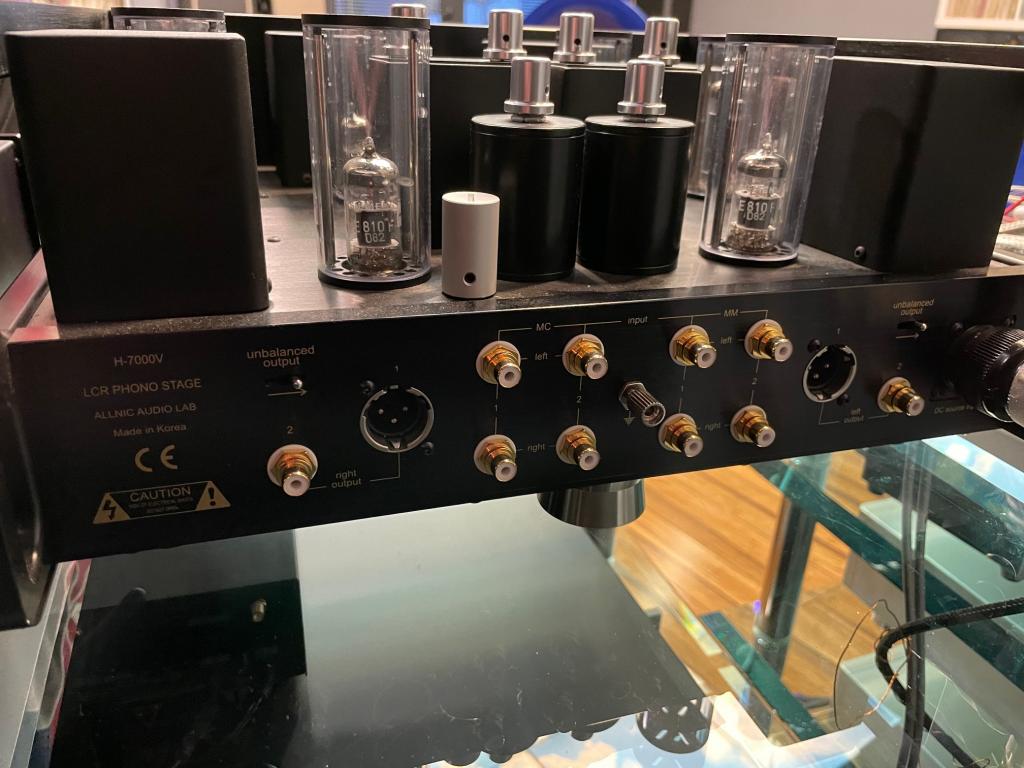

Inputs:
Moving Coil (MC) x two (2) pairs unbalanced (RCA)
Moving Magnet (MM) x two (2) pairs unbalanced (RCA)
Ground: One (1) x screw type terminal

Outputs:
One (1) pair x unbalanced (RCA)
One (1) pair x balanced (XLR)

Frequency (RIAA): 20Hz to 20kHz (+/-0.5db) 30Hz to 15kHz (+/-0.3dB)

Voltage Gains:
MM +40db (1KHz)
MC1 +60dB (1KHz)
MC2 +62, +66, +68, +72db (1khz)

Input Impedance:
MC up to 470 Ohm
MM 47k Ohm

Maximum Input Voltage:
(MM, non-clipping): 20Hz / 10mV 100Hz / 50mV 1kHz / 220mV 10KHz / 690mV

Total Harmonic Distortion: Less than 0.3% (1kHz, Output 1V)

Output Impedance: 200 Ohm (Constant)

S/N Ratio: -85dB (CCIR, 1kHz)

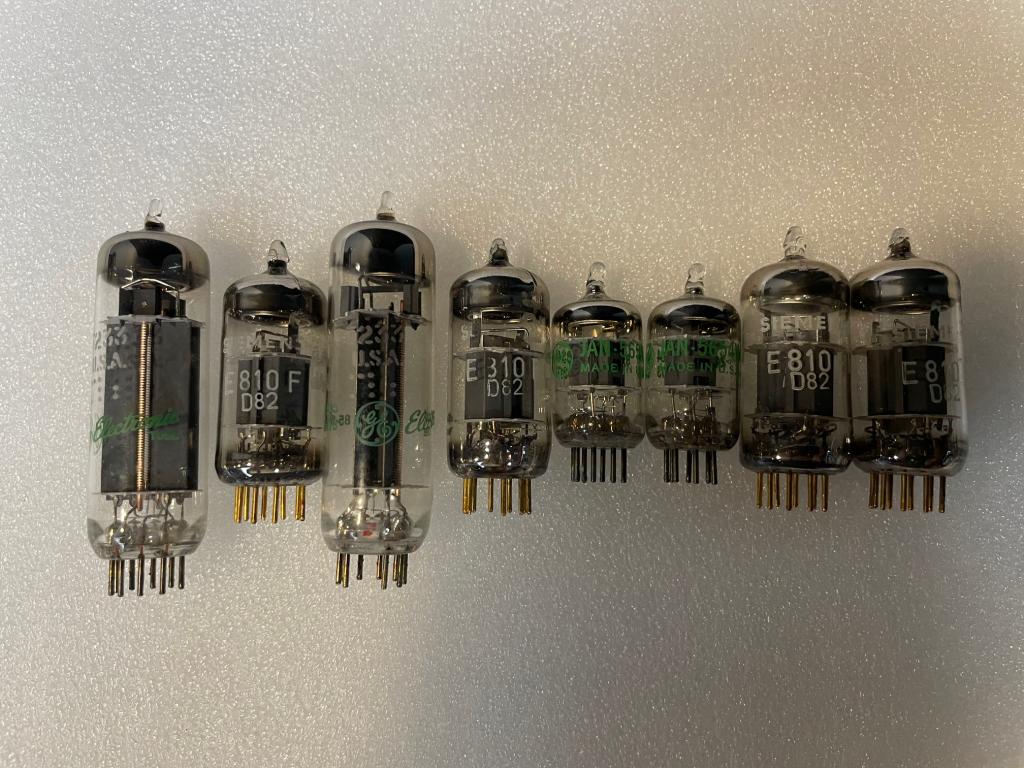

Tubes:
E810F/7788 x 4 (gain stages, left and right channels)
7233 x 2 (voltage regulators)
5654 x 2 (voltage regulators)
5U4G (rectifier)

Fuse: AC 2A, 250V

Dimensions: Phono Stage – 430mm (16.9 inches) x 350mm (13.8 inches) x 173mm (6.82 inches) (W x D x H). Power Supply – 170mm (6.7 inches) x 275mm (10.8 inches) x 118mm (4.65 inches) (W x D x H)

Weight: Phono stage – 15.7 Kg (34.62 lbs). Power supply – 8.1 Kg (18 lbs). Both units in original packing: 30 Kg (66 lbs)
