DCS dCS Rossini Player and Rossini Master Clock

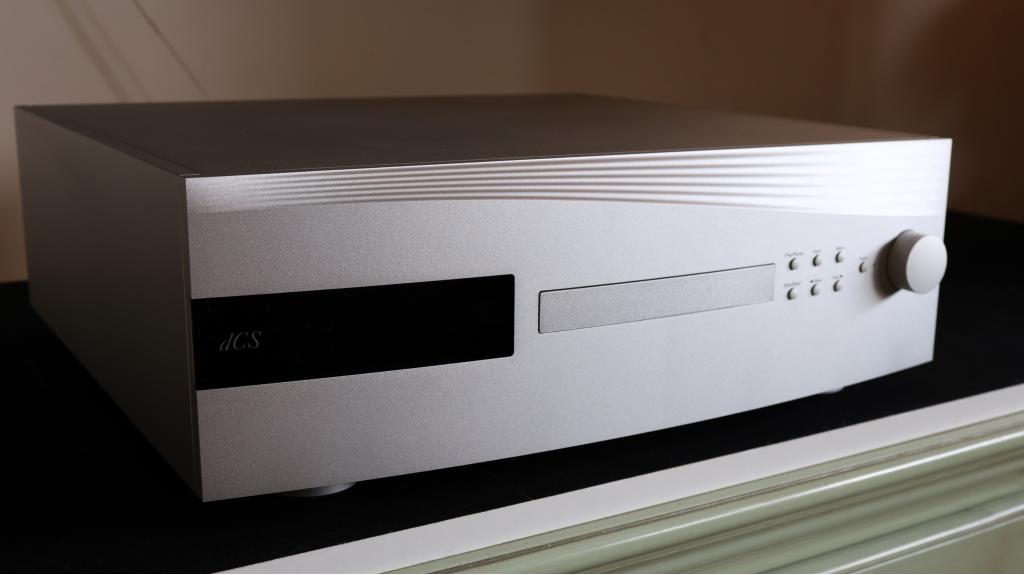

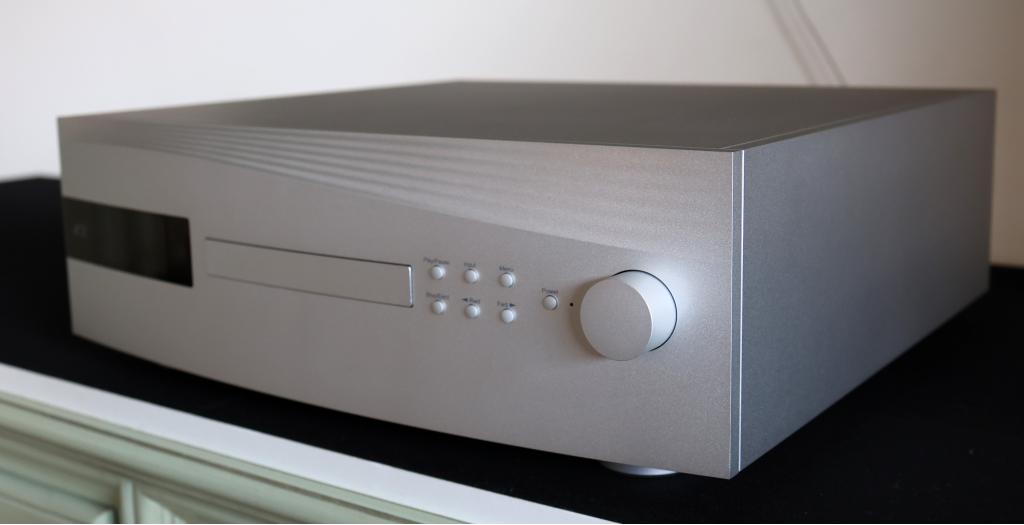

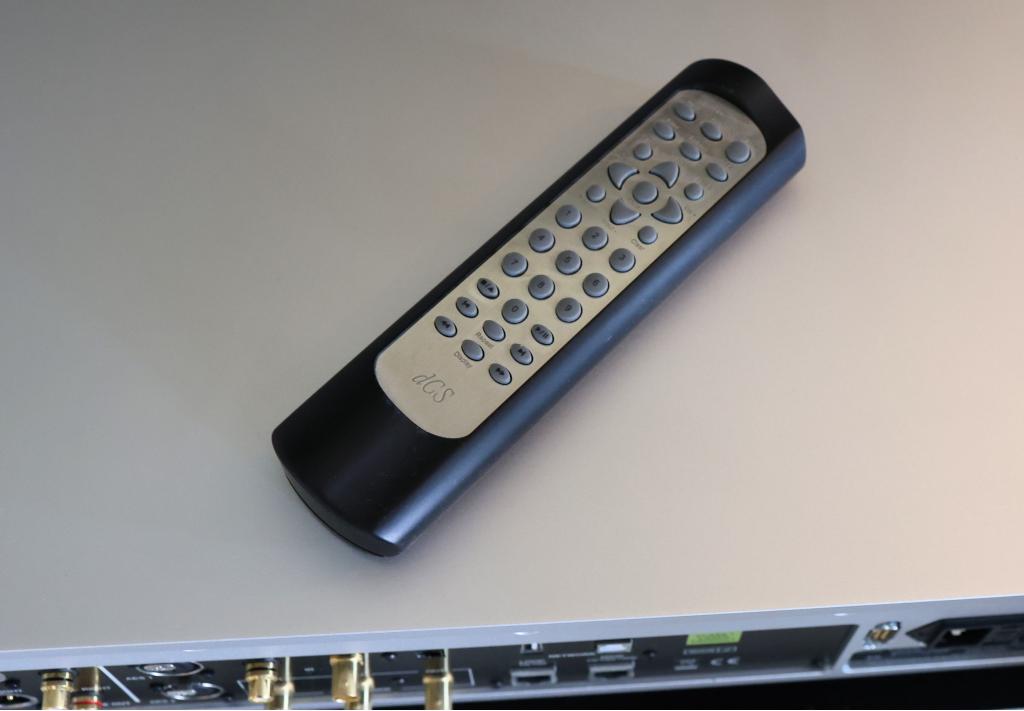

dCS Rossini Player D/A converter with CD transport, mint condition, single owner, original packaging and manual, remote control, silver finish, year 2018, non-APEX.
Asked price 13.500€.

The dCS Rossini Player is an ultra-high-end reference all-in-one digital source that integrates a D/A converter, a Red Book CD transport mechanism, a network streamer, and a digital preamplifier into a single chassis.
Architecture and Conversion (Original Ring DAC™)
• Proprietary Ring DAC™: Features the classic version of the discrete-component conversion board controlled via dCS proprietary FPGA (prior to the APEX hardware revision introduced in 2022).
• Processing and Upsampling: 5-bit mapping at 2.8224 MHz or 3.07 MHz. Allows user-selectable upsampling of the data stream to DXD (24-bit / 352.8 or 384 kHz) or DSD64 / DSD128.
• Selectable Filters: Offers 6 customizable digital filters for PCM playback and 4 dedicated filters for DSD format, allowing fine-tuning of high-frequency response and impulse response.
Operational Features
Feature Specifications
CD Transport Integrated tray-loading CD transport mechanism.
Network Streaming Ethernet network board controllable via the dCS Mosaic app. Supports Roon Ready, TIDAL, Qobuz, Spotify Connect, Deezer, and Apple AirPlay.
Preamp Section High-resolution digital volume control allowing direct driving of a power amplifier or active speakers.
Clock Synchronization Auto-clocking architecture with 2 BNC Word Clock inputs (44.1 kHz and 48 kHz) for connection to an external clock (e.g., dCS Rossini Clock).
Connectivity and Construction

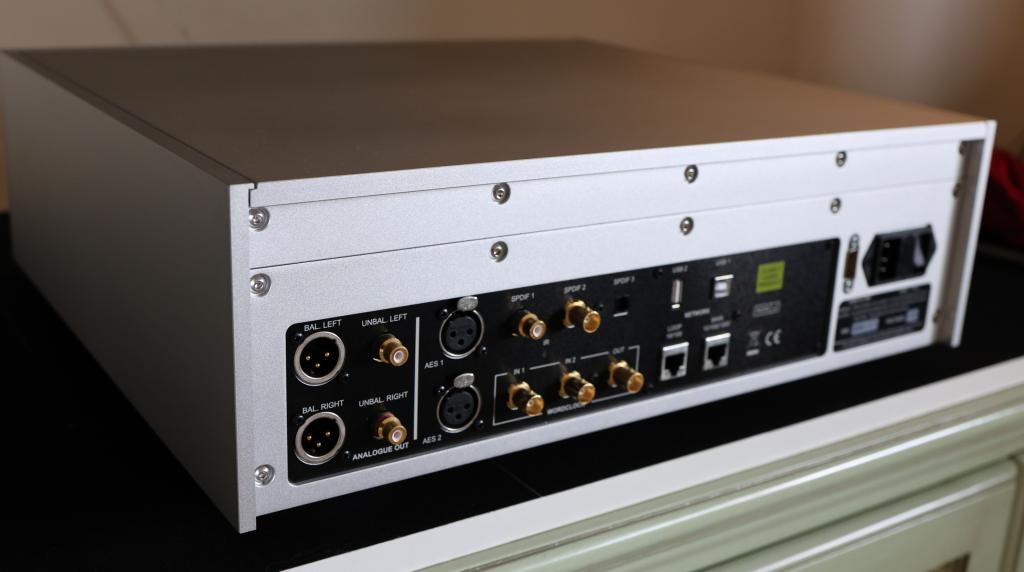

• Digital Inputs: Dual AES/EBU (XLR) for DXD/DSD, 2x SPDIF (RCA and BNC), 1x Optical Toslink, asynchronous USB-B (for PC/Mac), USB-A (flash drive), RJ45 Ethernet.
• Analog Outputs: Balanced (XLR) and unbalanced (RCA) with menu-selectable output levels of 2V or 6V RMS to adapt to any preamplifier or power amplifier.

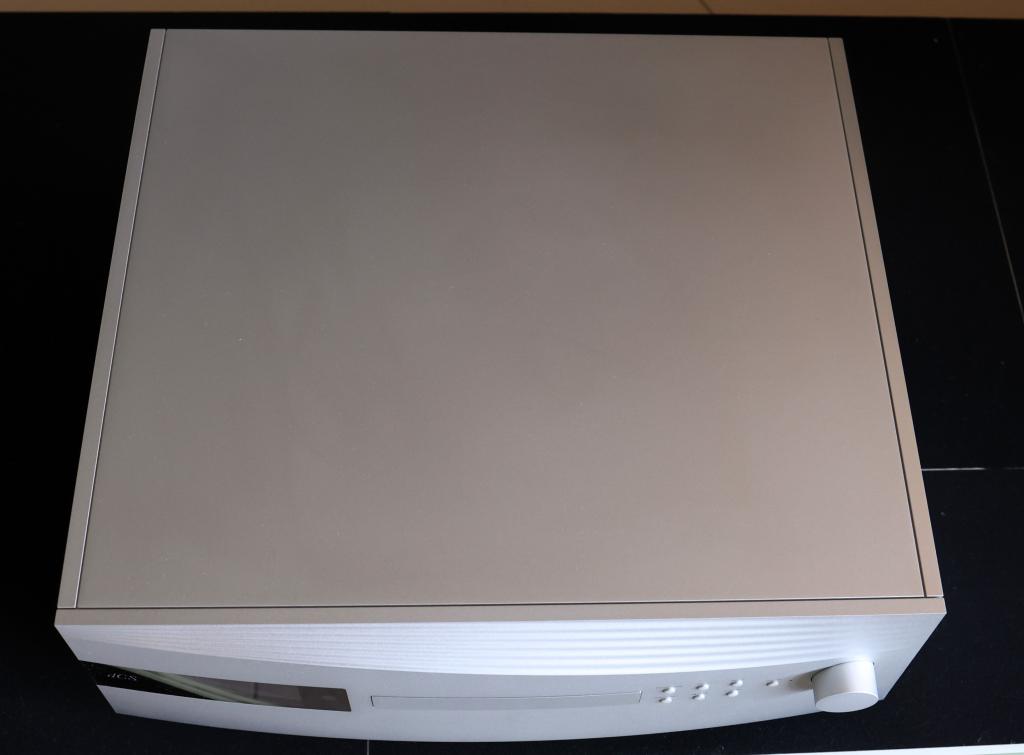

• Construction: Aerospace-grade aluminum chassis machined from solid billet using CNC machinery, with damped internal panels to reduce vibration and electromagnetic interference.

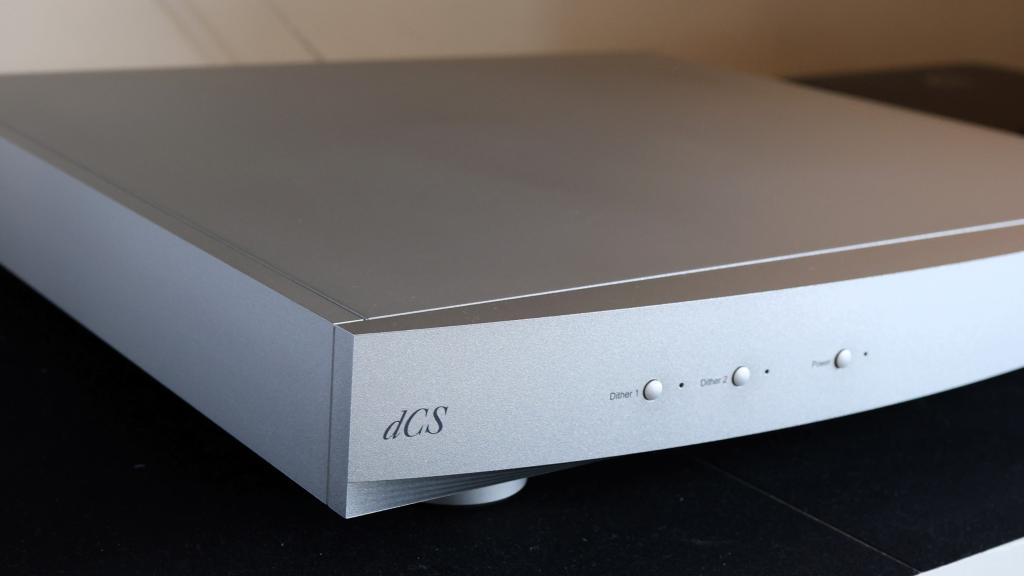

dCS Rossini Master Clock master clock generator, mint condition, single owner, original packaging and manual, silver finish, year 2018.
Designed to reduce jitter and coordinate the timing synchronization of the dCS Rossini DAC or Rossini Player with extreme accuracy.
Architecture and Technology
• Dual Quartz Oscillator: Integrates two distinct oven-controlled crystal oscillators (OCXO). One crystal is dedicated exclusively to the 44.1 kHz frequency family (CD, DSD, 88.2 kHz, 176.4 kHz, 352.8 kHz), while the other manages the 48 kHz family (48, 96, 192, and 384 kHz).
• Precision Thermal Control: Microcontrollers within the circuitry maintain the crystals at a constant temperature, eliminating frequency drifts caused by ambient thermal variations.
• Integrated Auto-Clocking: When connected to the Word Clock BNC inputs of the Rossini DAC/Player, the system automatically switches to the correct clocking frequency based on the format of the track being played.
Specifications and Connectivity
Component Technical Details
Frequency Accuracy Typically better than ±1 ppm at factory calibration

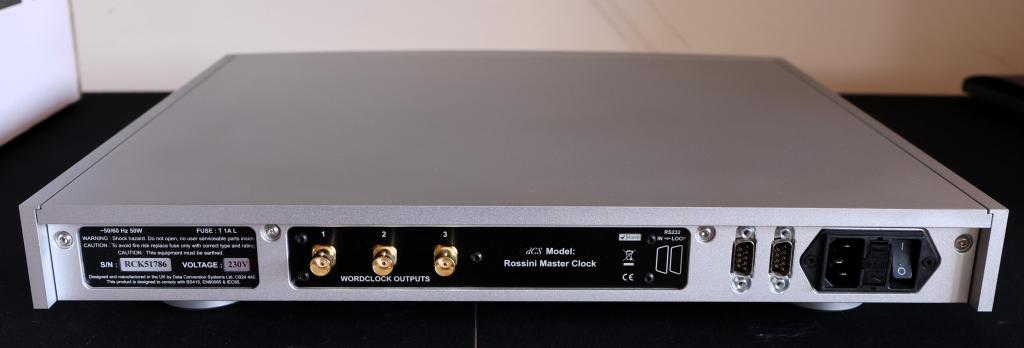

Word Clock Outputs 3 independent outputs with 75 Ω BNC connectors
Output Frequencies Group 1: 44.1 kHz / Group 2: 48 kHz
Power Supply Dedicated toroidal transformers and multi-stage voltage regulators to isolate each section
Chassis Aerospace-grade aluminum with sound-dampening panels to eliminate mechanical vibrations
Impact on Sonic Performance
