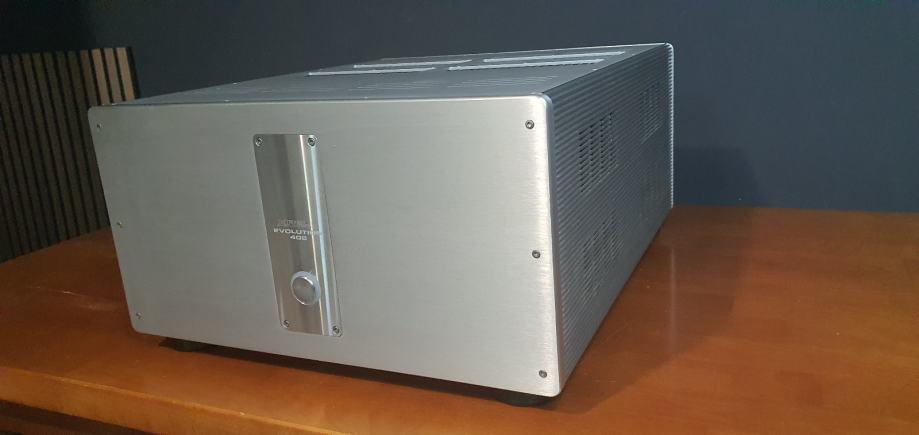

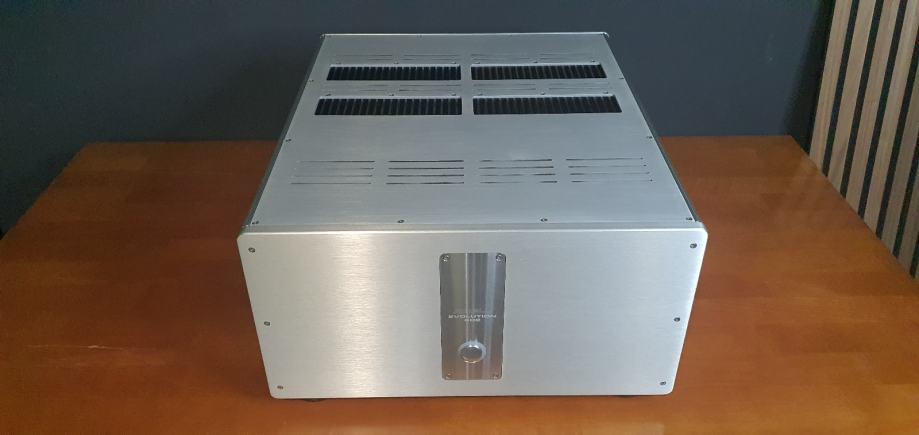

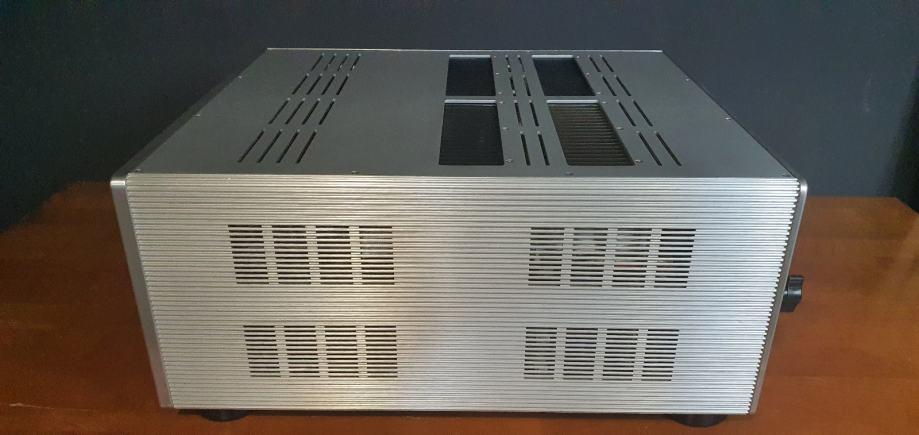

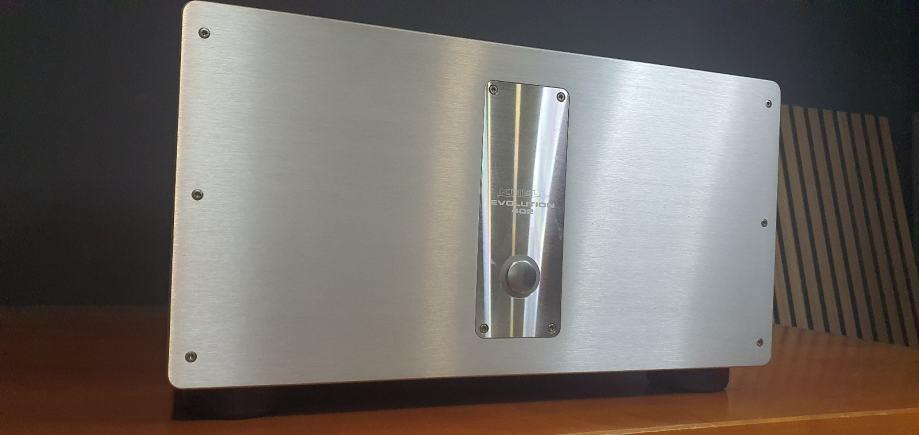

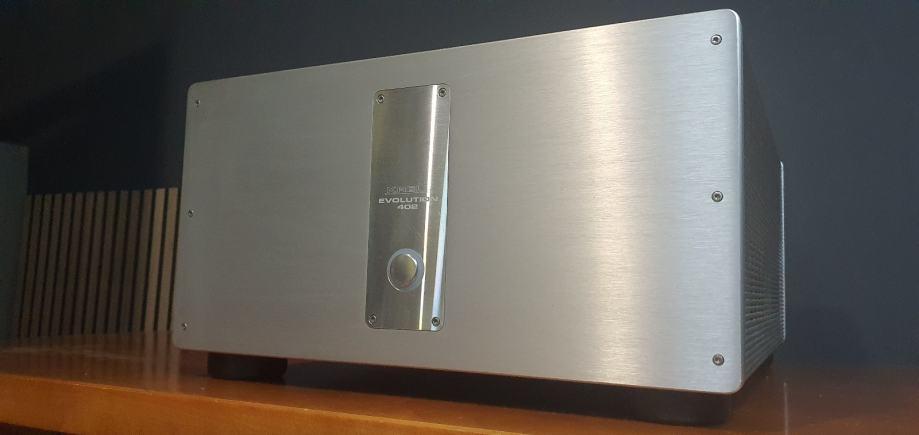

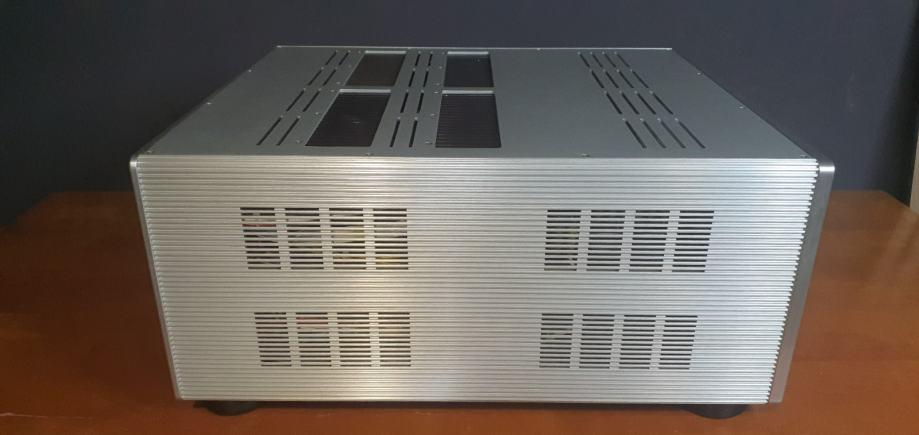

Krell Krell Evolution 402 Power Amplifier
Preis: 5.990,00 €
| Gebrauchtgerät
Produktdetails
- Produktgruppe
- Transistor-Endverstärker
- Hersteller
- Krell
- Funktion
- einwandfrei
- Alter
- 12 Jahre 5 Monate Nach Schätzung
- Gebrauchszustand
- gebraucht
- Optik
- guter Zustand
- Zubehör
- komplett ohne OVP
- Farbe
- Silver
- Neupreis
- 20.000,00 €
- Preis
- 5.990,00 €
- Weitere Informationen
- http://www.krellonline.com
Beschreibung
400W 8 ohms per channel stereo amplifier with a large 5000VA power supply. So powerful that it uses a 20 amp power cable AND an industrial circuit breaker as a power switch to match its 5000VA internal power supply. Active cascode topology eliminates global negative feedback, only nested local feedback around individual gain blocks is used. The result is a remarkably open, accurate and light sound.
The signal path includes Krell Current Mode and CAST circuits using proprietary multi-output current mirrors in a complementary and balanced arrangement for outstanding open-loop linearity.
The Evolution circuit topology breaks through the bandwidth limitations of conventional designs resulting in near-perfect performance in the audible range.
The device is completely correct !
Frequency response:
20 Hz to 20 kHz +0, –0.18 dB
< 0.5 Hz to 120 kHz +0, –3 dB
Signal-to-noise ratio:
>106 dB, wideband, unweighted,
referred to full power output
>116 dB, “A”-weighted
Gain: 25.4 dB
Total harmonic distortion:
< 0.02% at 1 kHz, at 400 W, 8 Ω
< 0.15% at 20 kHz, at 400 W, 8 Ω
Input impedance: CAST: 70 Ω; Balanced: 200 kΩ;
Single-ended: 100 kΩ
Input sensitivity: CAST: 3.04 mA RMS;
Balanced or single-ended: 3.04V RMS
Output power (per channel, all channels driven):
400 W at 8 Ω; 800 W at 4 Ω
Output voltage: 160 V peak-to-peak; 57 V RMS
Output current: 37 A peak Slew rate: 100 V/µs
Output impedance: < 0.055 Ω at 20 Hz;
< 0.064 Ω, 20 Hz to 20 kHz
Damping factor (referred to 8 Ω): >145 at 20 Hz;
>125, 20 Hz to 20 kHz
Power consumption: Standby: 260 W; Idle: 390 W;
Maximum: 3800 W
Heat output: Standby: 890 BTU/hr.;
Idle: 1300 BTU/hr.; Maximum: 6400 BTU/hr.

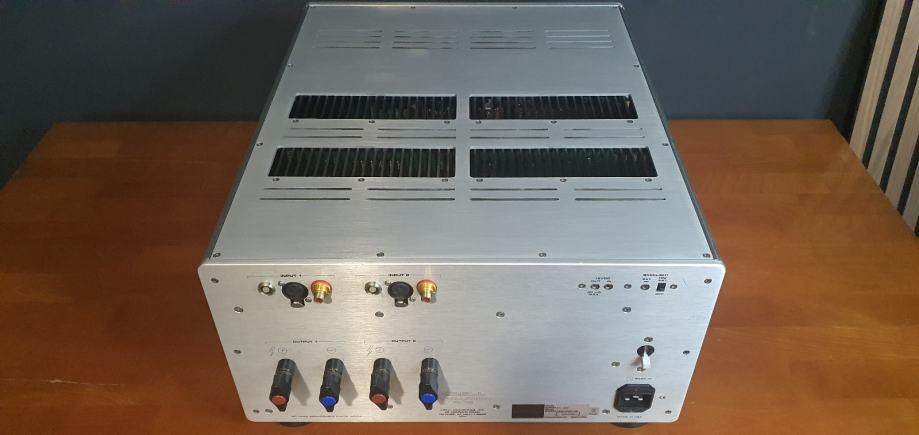

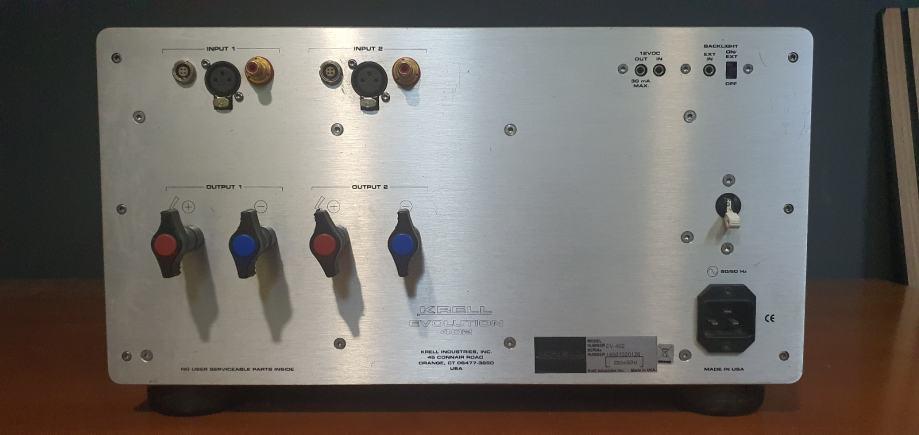

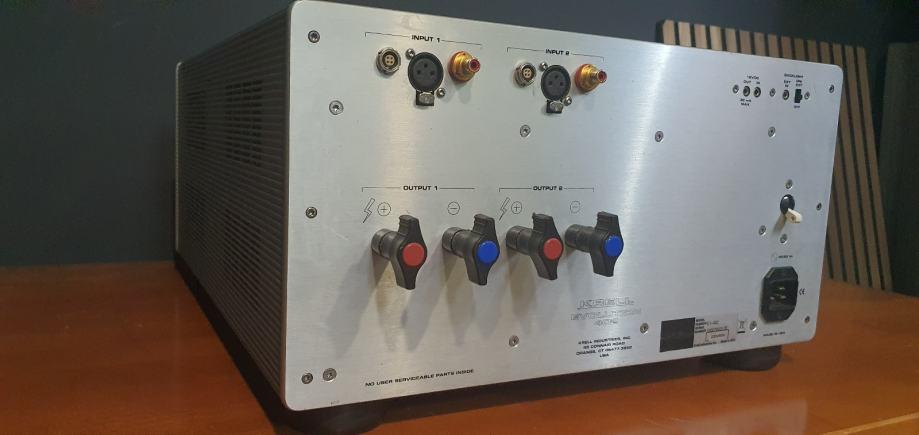

Inputs: 2 CAST via 4-pin bayonet connectors
2 balanced via XLR connectors
2 single-ended via RCA connectors
Outputs: 2 pairs Krell binding posts
Dimensions (WxHxD): 17.3 x 9.8 x 22.1 in.
438 x 248 x 560 mm
Weight: 135 lb., 61.1 kg (unit only)
150 lb., 67.9 kg (as shipped)
The signal path includes Krell Current Mode and CAST circuits using proprietary multi-output current mirrors in a complementary and balanced arrangement for outstanding open-loop linearity.
The Evolution circuit topology breaks through the bandwidth limitations of conventional designs resulting in near-perfect performance in the audible range.
The device is completely correct !
Frequency response:
20 Hz to 20 kHz +0, –0.18 dB
< 0.5 Hz to 120 kHz +0, –3 dB
Signal-to-noise ratio:
>106 dB, wideband, unweighted,
referred to full power output
>116 dB, “A”-weighted
Gain: 25.4 dB
Total harmonic distortion:
< 0.02% at 1 kHz, at 400 W, 8 Ω
< 0.15% at 20 kHz, at 400 W, 8 Ω
Input impedance: CAST: 70 Ω; Balanced: 200 kΩ;
Single-ended: 100 kΩ
Input sensitivity: CAST: 3.04 mA RMS;
Balanced or single-ended: 3.04V RMS
Output power (per channel, all channels driven):
400 W at 8 Ω; 800 W at 4 Ω
Output voltage: 160 V peak-to-peak; 57 V RMS
Output current: 37 A peak Slew rate: 100 V/µs
Output impedance: < 0.055 Ω at 20 Hz;
< 0.064 Ω, 20 Hz to 20 kHz
Damping factor (referred to 8 Ω): >145 at 20 Hz;
>125, 20 Hz to 20 kHz
Power consumption: Standby: 260 W; Idle: 390 W;
Maximum: 3800 W
Heat output: Standby: 890 BTU/hr.;
Idle: 1300 BTU/hr.; Maximum: 6400 BTU/hr.
Inputs: 2 CAST via 4-pin bayonet connectors
2 balanced via XLR connectors
2 single-ended via RCA connectors
Outputs: 2 pairs Krell binding posts
Dimensions (WxHxD): 17.3 x 9.8 x 22.1 in.
438 x 248 x 560 mm
Weight: 135 lb., 61.1 kg (unit only)
150 lb., 67.9 kg (as shipped)
