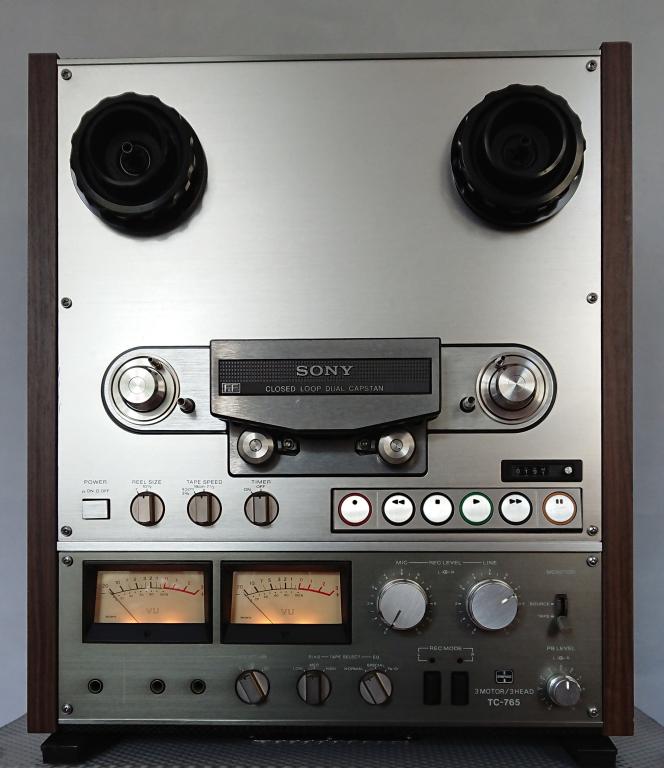

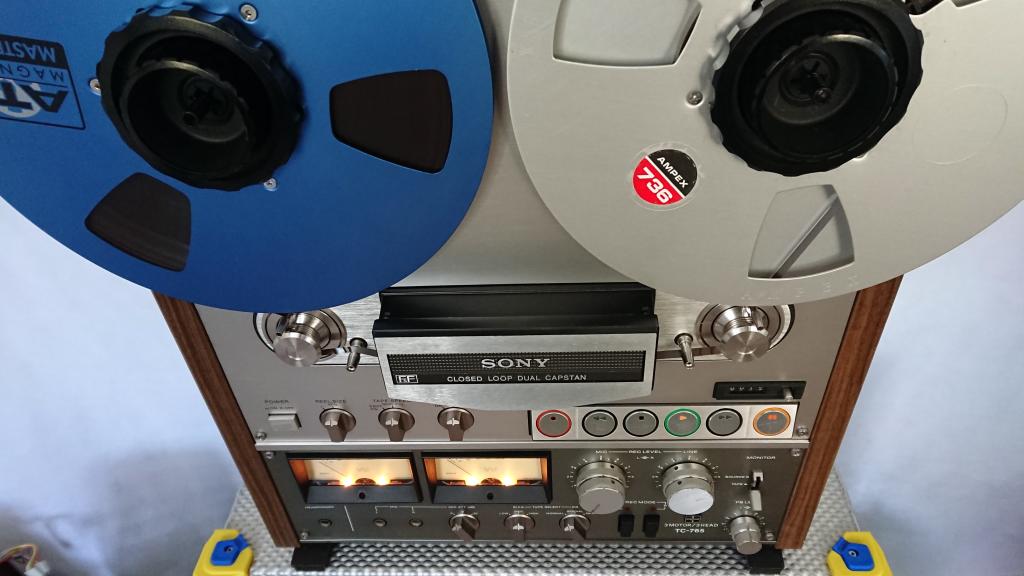

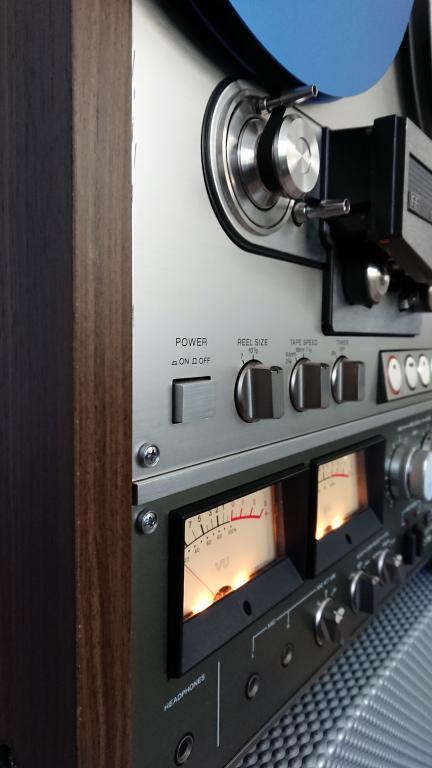

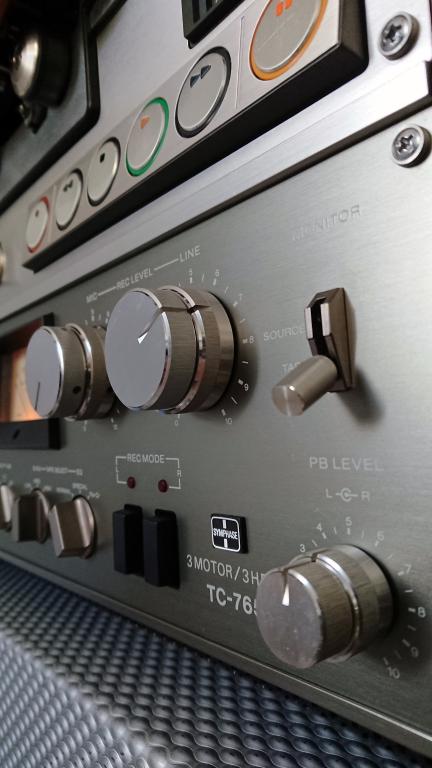

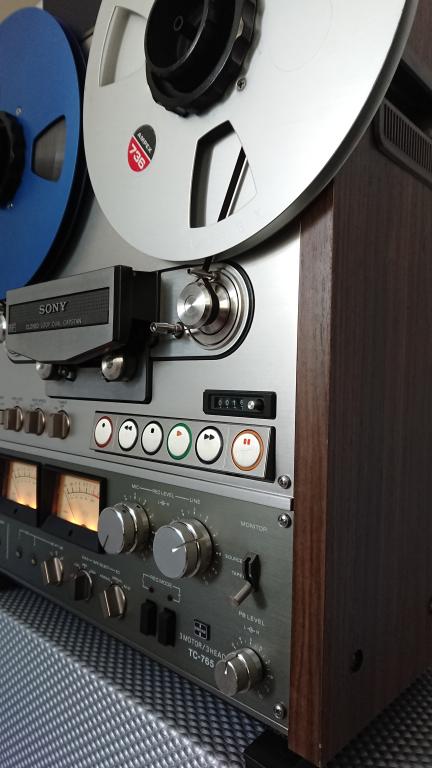

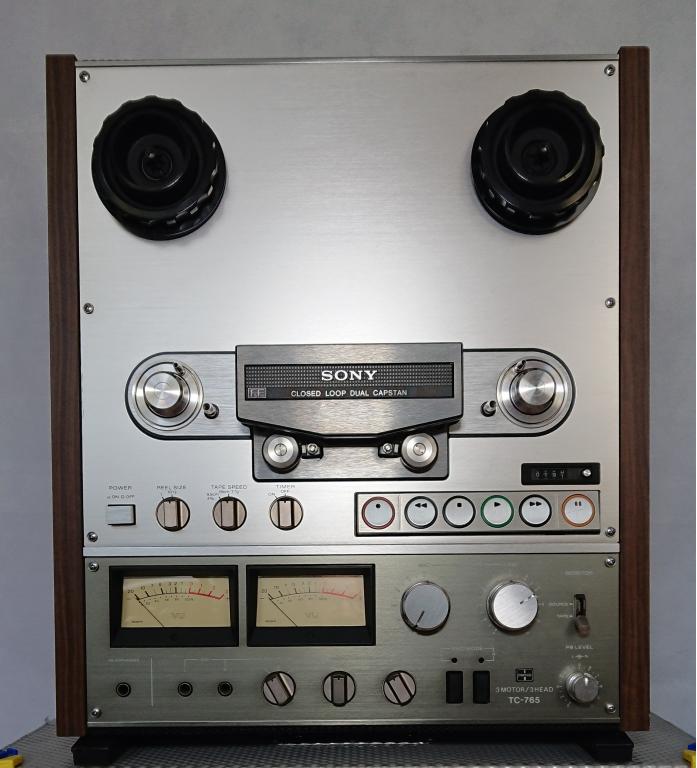

Sony Sony TC-765, 4-track 2-channel, 3-head tape recorder - Great
Preis: 5.000,00 €
| Gebrauchtgerät
Produktdetails
- Produktgruppe
- Tonbandgerät
- Hersteller
- Sony
- Funktion
- einwandfrei
- Alter
- 42 Jahre 7 Monate
- Gebrauchszustand
- gebraucht
- Optik
- neuwertig
- Zubehör
- Keine Angabe
- Preis
- 5.000,00 €
- Weitere Informationen
- http://www.sony.de
Beschreibung
Mint condition, heads are perfect.
Very clean and extremely low hours of use.
Fully functional.
New belt, fully calibrated to the factory specifications.
Description
Features of the Sony TC-765,
4-track 2-channel, 3-head tape recorder include:
Three heads and three motors
Closed-loop dual capstan tape drive
AC servo controlled capstan drive motor
High performance Ferrite heads
Separate 3-way bias and equalization selectors
Logic controlled transport function buttons
First stage of the amplifier and the playback head are directly coupled
General
Power Requirements: 110V, 120V, 220V, 240V ac, 50/60Hz
Power Consumption: 90W
Dimensions: Approx. 445(w) x 525(h) x 235(d) mm / 17 1/2 (w) x 50 5/8(h) x 9 ¼(d) inches, including projecting parts and controls.
Track: 4-track 2-channel stereo recording and playback
Tape speed: 7 ½ ips & 3 ¾ ips (19cm/s & 9.5cm/s)
Fast Forward Rewind Time: Approx. 150 seconds with 740 m (2,400 ft) tape
Recording Time: With 1,100 m (3,600 ft), 27 cm reel: Stereo Recording 180 minutes at 19 cm/s. Mono recording 720 minutes at 9.5 cm/s.
Heads: Record head 1, Playback head 1, Erase Head 1
Motors: AC servo-controlled capstan motor 1, Induction reel motor 2Reel: Up to 27 cm (10 ½ inch)
Frequency Response:
With Sony Ferri-Chrome tape: 30-25,000 Hz, +/- 3dB at 19 cm/s. With SLH tape: 30-25,000 Hz +/- 3dB at 19 19 cm/s.
With regular tape: 30-18,000 Hz, +/- 3dB at 19 cm/s
Wof and Flutter: DIN +/- 0.07% at 19 cm/s
S/N Ratio: 61 dB (DIN 1975)
Total Harmonic Distortion: 0.7%
Bias Frequency: 160 kHz
Inputs: MIC (two phone jacks)
Sensitivity: 0.2mV (-72 dB),
Impedance: for low-impedance microphone.
LINE IN (two phono jack),
Sensitivity: 0.06V (-22 dB),
Impedance: 100 kOhms.
REC/PB (connector):
Input Impedance: less than 10 kOhms.
Outputs: LINE OUT (two phono jacks): Normal level: 0.435 (-5 dB) with PB LEVEL control set to center detent position. 0.775 (0 dB) with PB LEVEL control set to “0”.
Load impedance: 100 kOhms.
Suitable load impedance: more than 10 kOhms.
HEADPHONES (binaural jack): Load impedance: for low-impedance headphones
REC/PB (connector):
Output impedance: less than 10 kOhms.Other Jack: 11-pin remote jack
Semiconductors: 2 x IC, 3 x FET, 104 x transistors, 89 x diodes
Weight: 27kg (59 lb 8 oz)
Accessories included:
One Sony empty spool

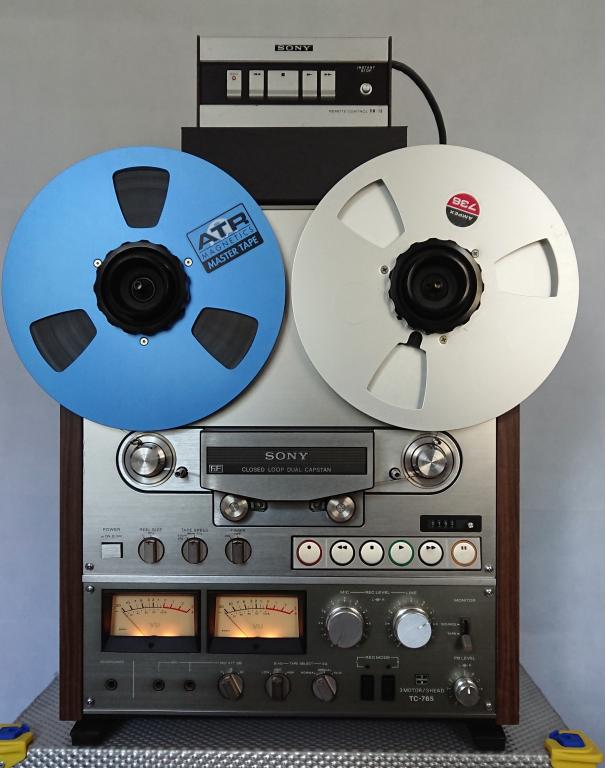

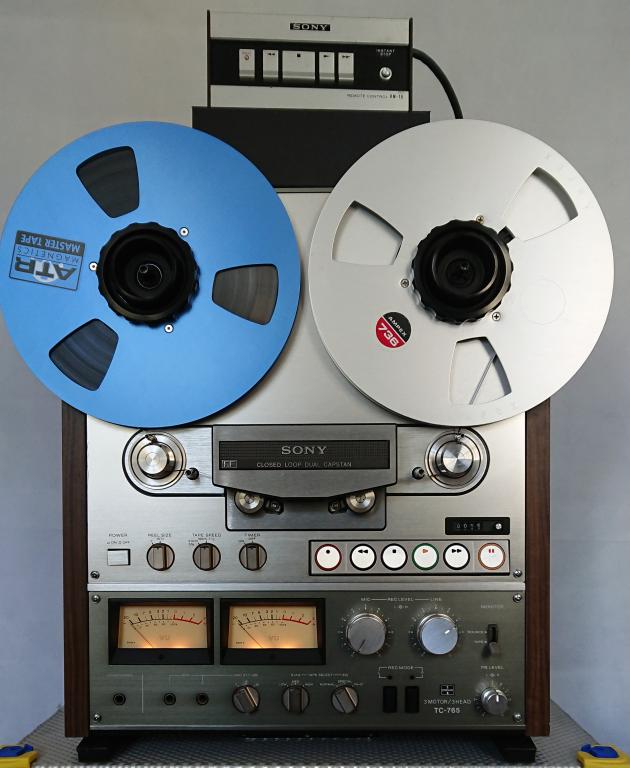

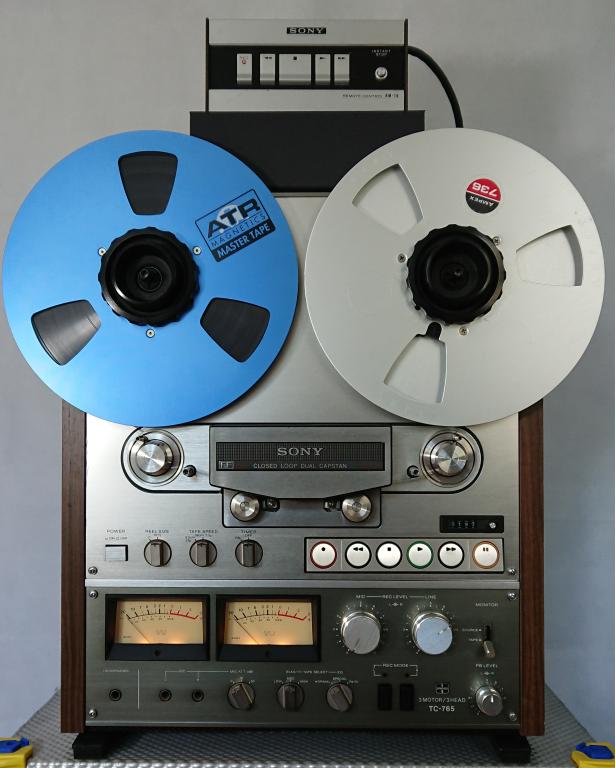

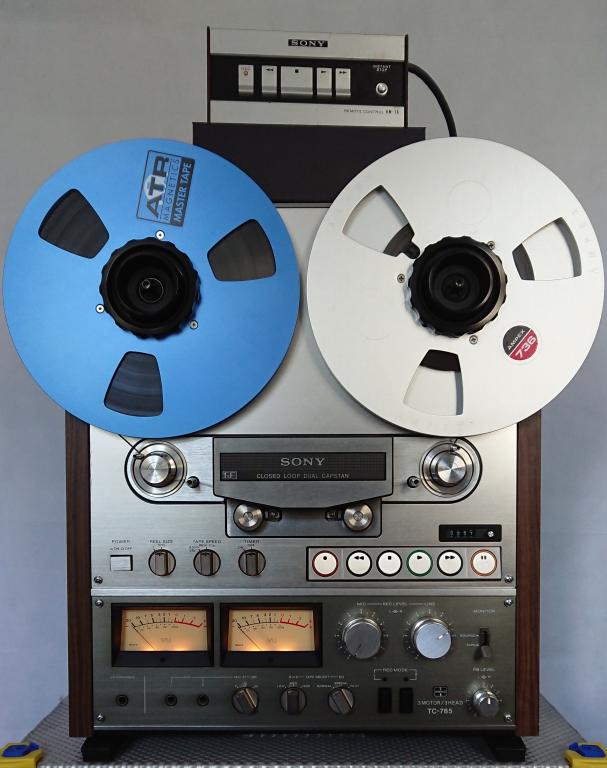

Original Sony RM-16 Remote Control
Warranty for one years.
Only serious offers will be considered.
More pictures and details, available on request. Feel free to drop an email.
Shipping worldwide, insured, by DHL Express.
Very clean and extremely low hours of use.
Fully functional.
New belt, fully calibrated to the factory specifications.
Description
Features of the Sony TC-765,
4-track 2-channel, 3-head tape recorder include:
Three heads and three motors
Closed-loop dual capstan tape drive
AC servo controlled capstan drive motor
High performance Ferrite heads
Separate 3-way bias and equalization selectors
Logic controlled transport function buttons
First stage of the amplifier and the playback head are directly coupled
General
Power Requirements: 110V, 120V, 220V, 240V ac, 50/60Hz
Power Consumption: 90W
Dimensions: Approx. 445(w) x 525(h) x 235(d) mm / 17 1/2 (w) x 50 5/8(h) x 9 ¼(d) inches, including projecting parts and controls.
Track: 4-track 2-channel stereo recording and playback
Tape speed: 7 ½ ips & 3 ¾ ips (19cm/s & 9.5cm/s)
Fast Forward Rewind Time: Approx. 150 seconds with 740 m (2,400 ft) tape
Recording Time: With 1,100 m (3,600 ft), 27 cm reel: Stereo Recording 180 minutes at 19 cm/s. Mono recording 720 minutes at 9.5 cm/s.
Heads: Record head 1, Playback head 1, Erase Head 1
Motors: AC servo-controlled capstan motor 1, Induction reel motor 2Reel: Up to 27 cm (10 ½ inch)
Frequency Response:
With Sony Ferri-Chrome tape: 30-25,000 Hz, +/- 3dB at 19 cm/s. With SLH tape: 30-25,000 Hz +/- 3dB at 19 19 cm/s.
With regular tape: 30-18,000 Hz, +/- 3dB at 19 cm/s
Wof and Flutter: DIN +/- 0.07% at 19 cm/s
S/N Ratio: 61 dB (DIN 1975)
Total Harmonic Distortion: 0.7%
Bias Frequency: 160 kHz
Inputs: MIC (two phone jacks)
Sensitivity: 0.2mV (-72 dB),
Impedance: for low-impedance microphone.
LINE IN (two phono jack),
Sensitivity: 0.06V (-22 dB),
Impedance: 100 kOhms.
REC/PB (connector):
Input Impedance: less than 10 kOhms.
Outputs: LINE OUT (two phono jacks): Normal level: 0.435 (-5 dB) with PB LEVEL control set to center detent position. 0.775 (0 dB) with PB LEVEL control set to “0”.
Load impedance: 100 kOhms.
Suitable load impedance: more than 10 kOhms.
HEADPHONES (binaural jack): Load impedance: for low-impedance headphones
REC/PB (connector):
Output impedance: less than 10 kOhms.Other Jack: 11-pin remote jack
Semiconductors: 2 x IC, 3 x FET, 104 x transistors, 89 x diodes
Weight: 27kg (59 lb 8 oz)
Accessories included:
One Sony empty spool
Original Sony RM-16 Remote Control
Warranty for one years.
Only serious offers will be considered.
More pictures and details, available on request. Feel free to drop an email.
Shipping worldwide, insured, by DHL Express.
